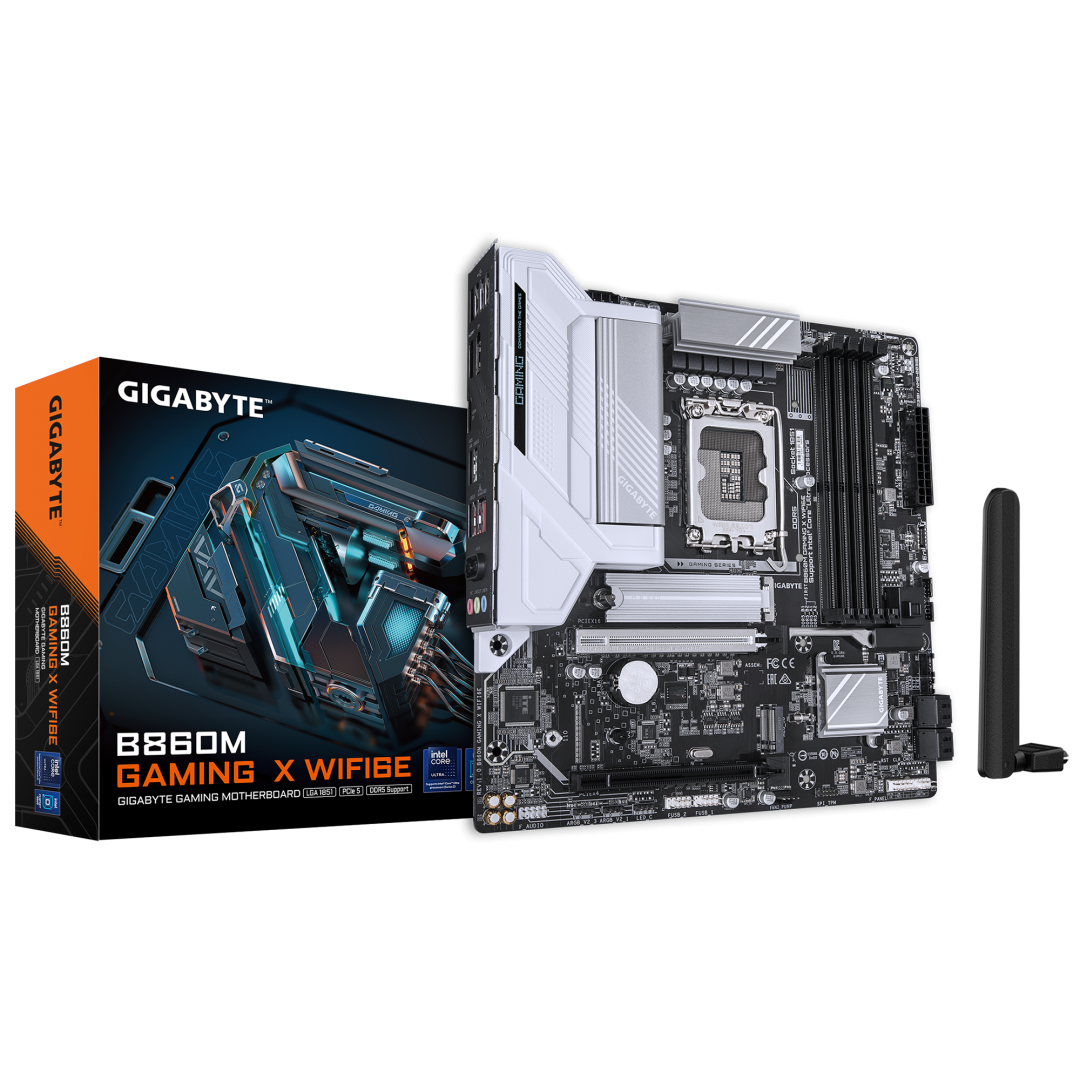

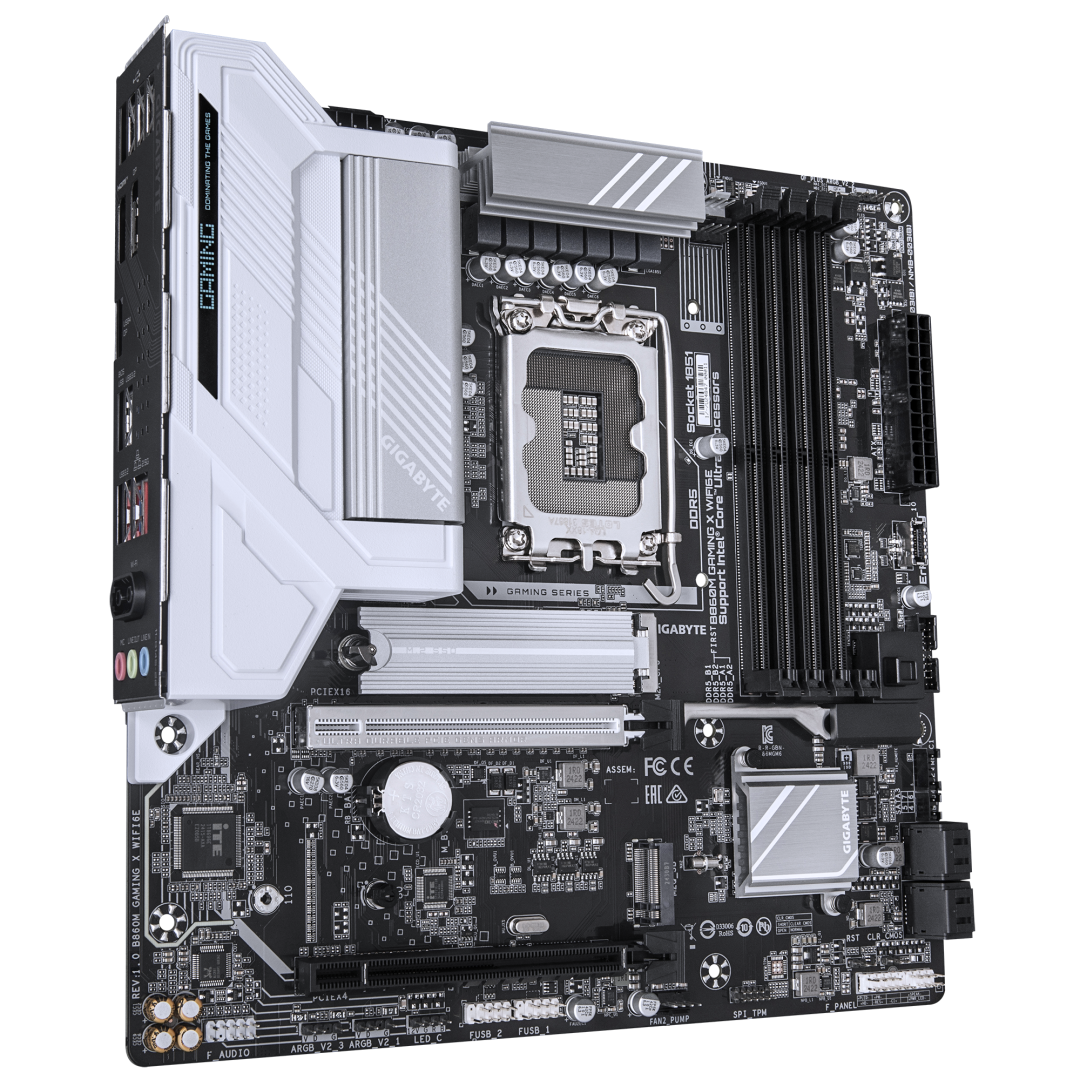

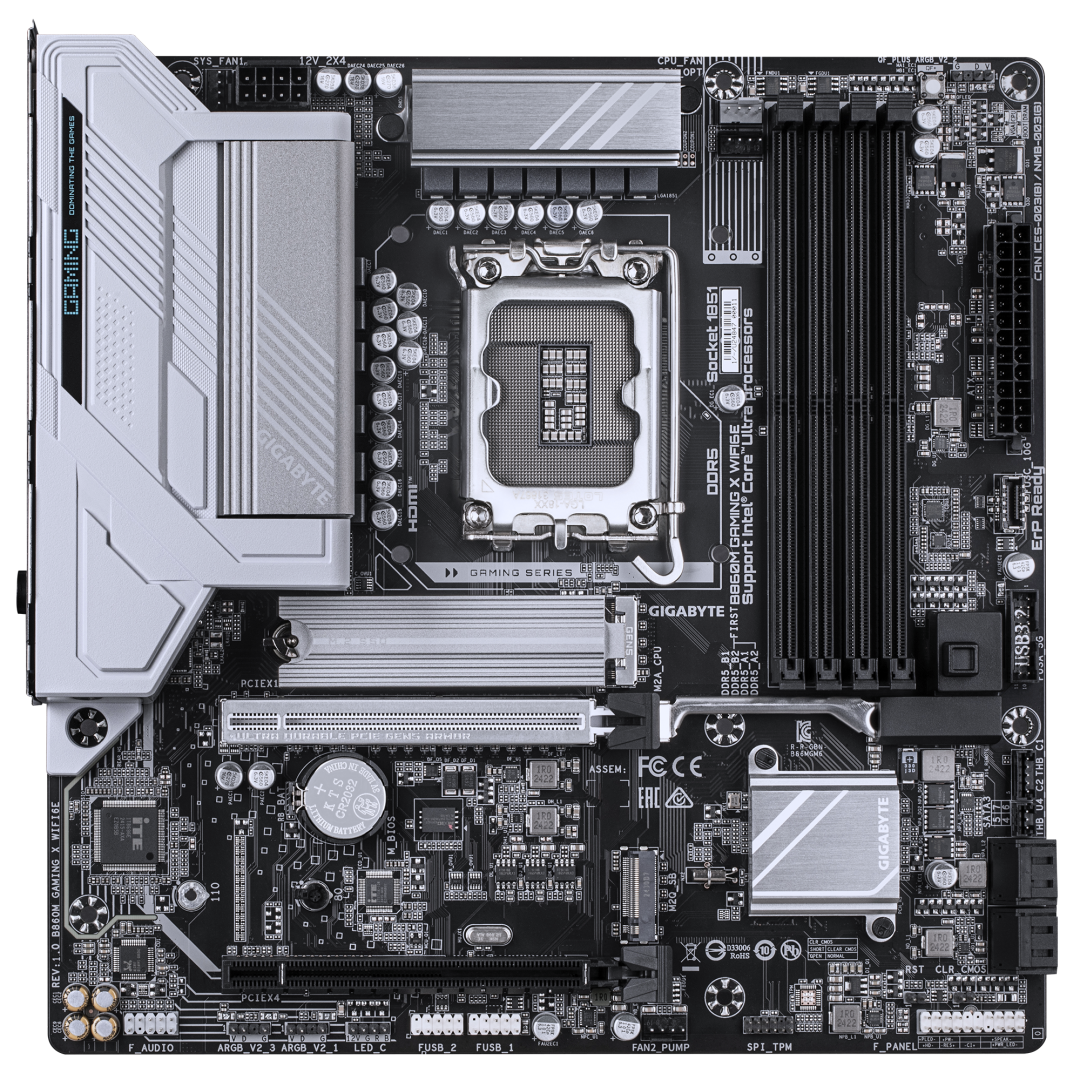

MB Gigabyte B860M GAMING X WIFI6E

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

BIOS type: UEFI AMI

BIOS memory size: 256 Mbit

Clear CMOS jumper: Yes

Product colour: Brown

1st M.2 highest PCI Express generation: 5.0

2nd M.2 highest PCI Express generation: 4.0

1st M.2 largest key size: 2280

2nd M.2 largest key size: 25110

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 2

Audio Chip: Realtek ALC897

Audio output channels: 7.1 channels

Component for: PC

Motherboard form factor: micro ATX

Motherboard chipset family: Intel

Motherboard chipset: Intel B860

PC health monitoring: Fan, Temperature, Voltage, Water cooling

Windows operating systems supported: Windows 11 x64

Power source type: ATX

HDCP: Yes

Maximum resolution: 4096 x 2160 pixels

Parallel processing technology support: Not supported

DirectX version: 12.0

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

Number of chassis fan connectors: 2

EPS power connector (8-pin): Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

Front panel connector: Yes

Number of CPU fan connectors: 2

TPM connector: Yes

Number of water pump connectors: 2

RGB LED pin header: Yes

Number of RGB LED pin headers: 4

Number of EPS power connectors (8-pin): 1

Thunderbolt headers: 2

Country of origin: China

Number of memory slots: 4

Memory slots type: DIMM

Unbuffered memory: Yes

Supported memory types: DDR5-SDRAM

Maximum internal memory: 256 GB

ECC сompatibility: ECC & Non-ECC

Supported memory clock speeds: 5600,6400,9200 MHz

Supported memory clock speed (max): 9200 MHz

Maximum internal memory per slot: 64 GB

Memory channels: Dual-channel

Wi-FI: Yes

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

WLAN controller model: Intel Wi-Fi 6E AX211

Ethernet LAN: Yes

Bluetooth version: 5.3

Ethernet interface type: 2.5 Gigabit Ethernet

LAN controller: Realtek RTL8125

Weight: 1.23 kg

Bundled software: Norton® Internet Security (OEM version)nLAN bandwidth management software

Antenna included: Yes

Screws included: Yes

Package height: 68 mm

Package width: 270 mm

Package depth: 268 mm

Package weight: 1.43 kg

DisplayPorts quantity: 1

DisplayPort version: 2.1

USB 2.0 ports quantity: 5

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

HDMI version: 2.1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

DVI-D ports quantity:

Processor manufacturer: Intel

Processor socket: LGA 1851 (Socket V1)

Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)

Supported processor sockets: LGA 1851

VGA (D-Sub) ports quantity: 0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

Line-in: Yes

USB4 Gen 2x2 ports quantity: 1

WiFi-AP antenna jack: 2

Microphone in: Yes

Headphone outputs: 1

Number of storage drives supported: 6

Supported storage drive types: HDD & SSD

RAID support: Yes

Supported storage drive interfaces: M.2, SATA III

Number of HDDs supported: 4

RAID levels: 0, 1, 5, 10

Height: 35 mm

Width: 244 mm

Depth: 24.4 mm

Onboard-CPU: No

PCI: 0
