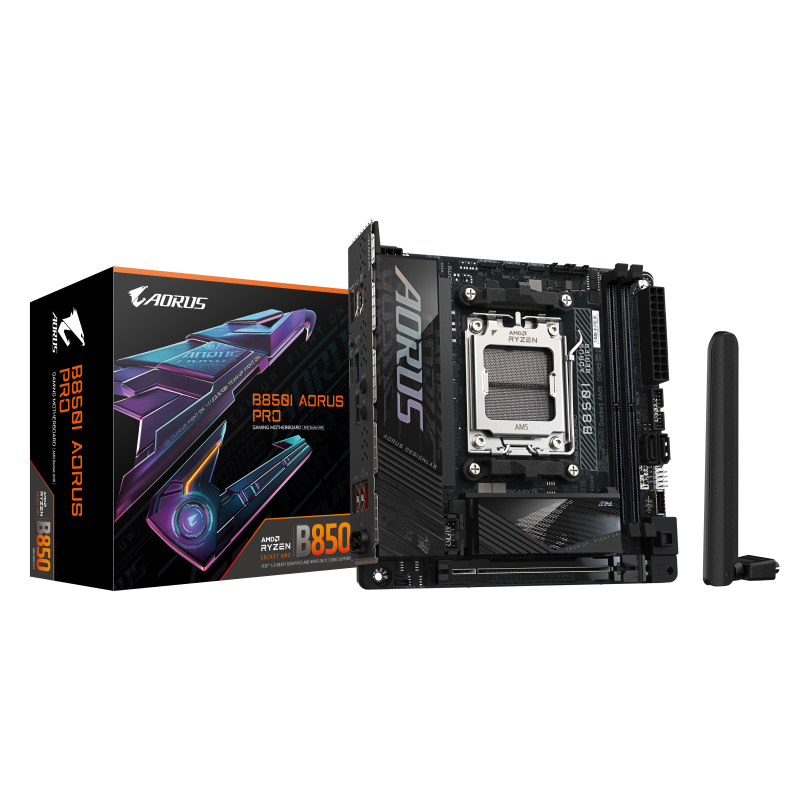

MB Gigabyte B850I AORUS PRO AM5

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

Clear CMOS button: Yes

BIOS type: UEFI AMI

BIOS memory size: 256 Mbit

Clear CMOS jumper: Yes

Bluetooth: Yes

Product colour: Black, Brown

1st M.2 largest key size: 2280

2nd M.2 largest key size: 2280

1st M.2 highest PCI Express generation: 5.0

2nd M.2 highest PCI Express generation: 4.0

Number of M.2 (M) slots: 2

PCI Express x16 (Gen 5.x) slots: 1

Audio Chip: Realtek ALC897

Audio output channels: 7.1 channels

Component for: PC

Motherboard chipset family: AMD

PC health monitoring: Fan, Temperature, Voltage, Water cooling

Windows operating systems supported: Windows 11 x64

Motherboard chipset: AMD B850

Motherboard form factor: mini ITX

DirectX version: 12.0

Parallel processing technology support: Not supported

Maximum resolution: 4096 x 2160 pixels

On-board graphics card: No

HDCP: Yes

Number of SATA III connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of SATA II connectors:

Number of SATA connectors:

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Total number of SATA connectors: 2

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

Front panel connector: Yes

Number of CPU fan connectors: 2

TPM connector: Yes

RGB LED pin header: Yes

Number of RGB LED pin headers: 4

USB 2.0 connectors: 1

Number of EPS power connectors (8-pin): 1

Number of water pump connectors: 1

Number of chassis fan connectors: 3

Serial port headers: 1

12V power connector: Yes

Country of origin: China

Products per shipping (inner) case: 1 pc(s)

Supported memory clock speeds: 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200,8400 MHz

ECC сompatibility: Non-ECC

Supported memory clock speed (max): 8400 MHz

Supported memory types: DDR5-SDRAM

Maximum internal memory per slot: 64 GB

Memory slots type: DIMM

Unbuffered memory: Yes

Maximum internal memory: 128 GB

Number of memory slots: 2

Memory channels: Dual-channel

Ethernet LAN: Yes

Wi-FI: Yes

Ethernet interface type: Gigabit Ethernet

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Bluetooth version: 5.4

WLAN controller model: Realtek RTL8922AE

Weight: 1.3 kg

mSATA ports quantity:

Screws included: Yes

Bundled software: Norton® Internet Security (OEM version)nLAN bandwidth management software

Antenna included: Yes

Batteries included: Yes

Warranty period: 3 year(s)

DisplayPorts quantity: 1

DVI-D ports quantity:

DisplayPort version: 2.1

USB 2.0 ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

HDMI version: 2.1

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Processor manufacturer: AMD

Processor socket: Socket AM5

Supported processor sockets: Socket AM5

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Ethernet LAN (RJ-45) ports: 1

Microphone in: Yes

Headphone outputs: 1

WiFi-AP antenna jack: 2

VGA (D-Sub) ports quantity: 0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

Supported storage drive types: HDD & SSD

RAID support: Yes

Supported storage drive interfaces: M.2, SATA III

Number of HDDs supported: 2

Number of storage drives supported: 4

RAID levels: 0, 1, 10

Height: 35 mm

Width: 170 mm

Depth: 170 mm

Onboard-CPU: No

PCI: 0

Garantia Produsului: 36 luni
