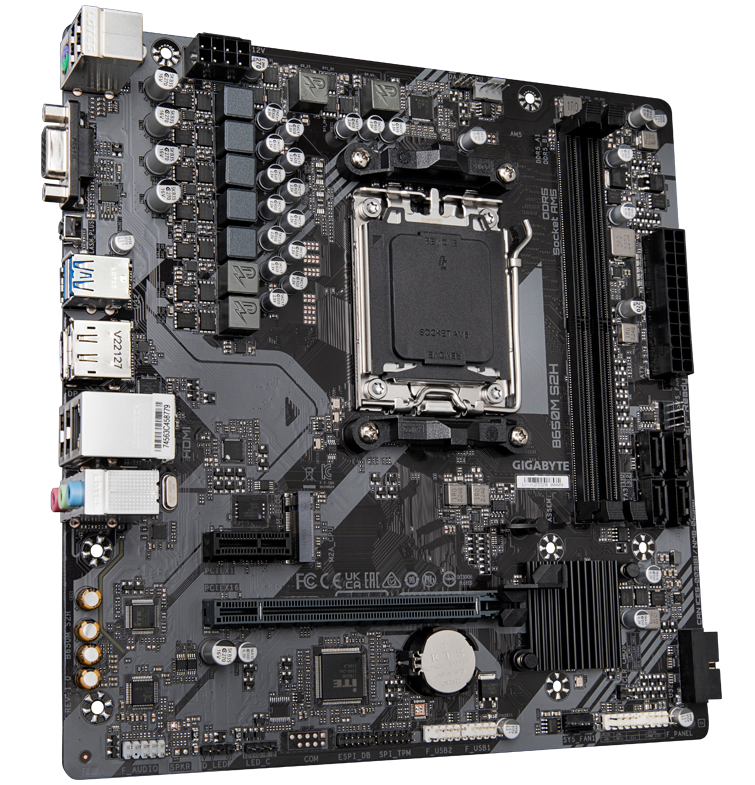

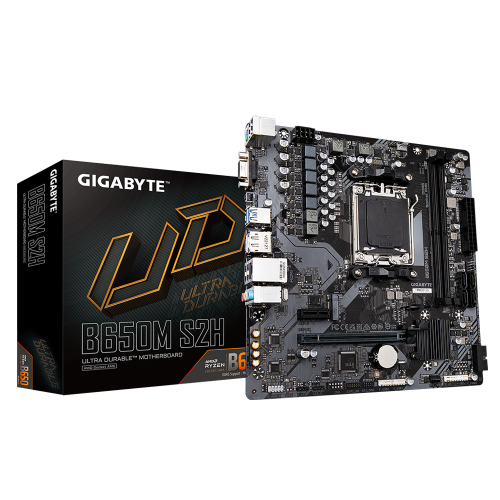

MB GIGABYTE B650M S2H 1.0

Placa de Baza GIGABYTE B650M S2H 1.0 AM5, 2x DDR5, 1x D-Sub 1x DP 1x HDMI, 1x PCIE 16x 1x PCIE x1, 1x M.2, 4x SATA 6GB/s
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 1
1st M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2580
Product colour: Brown
Power source type: ATX
Cooling type: Passive
Audio output channels: 7.1 channels
Audio Chip: Realtek ALC897
Component for: PC
Windows operating systems supported: Windows 10 x64, Windows 11 x64
PC health monitoring: Fan, Temperature, Voltage
Motherboard chipset: AMD B650
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Discrete graphics support: Yes
HDCP: Yes
Parallel processing technology support: Not supported
DirectX version: 12.0
Maximum resolution: 4096 x 2160 pixels
12V power connector: Yes
Front panel connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
Number of EPS power connectors (8-pin): 1
Number of CPU fan connectors: 1
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
Number of RGB LED pin headers: 2
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
Supported memory clock speed (max): 6400 MHz
Supported memory clock speeds: 4400,4800,5200,5600,6000,6200,6400 MHz
Memory slots type: DIMM
Unbuffered memory: Yes
Supported memory types: DDR5-SDRAM
Maximum internal memory per slot: 64 GB
ECC сompatibility: Non-ECC
Number of memory slots: 2
Memory channels: Dual-channel
Maximum internal memory: 128 GB
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-FI: No
LAN controller: Realtek RTL8111H
Screws included: Yes
Batteries included: Yes
Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software
Package weight: 917 g
Package height: 54 mm
Package width: 265 mm
Package depth: 265 mm
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
PS/2 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPort version: 1.4
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 1
DVI-D ports quantity: 0
Line-in: Yes
Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
Headphone outputs: 1
Number of storage drives supported: 5
Supported storage drive types: HDD & SSD
RAID support: Yes
Number of HDDs supported: 4
Supported storage drive interfaces: M.2, SATA III
RAID levels: 0, 1, 10
Warranty period: 3 year(s)
Height: 35 mm
Width: 230 mm
Depth: 225 mm
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
