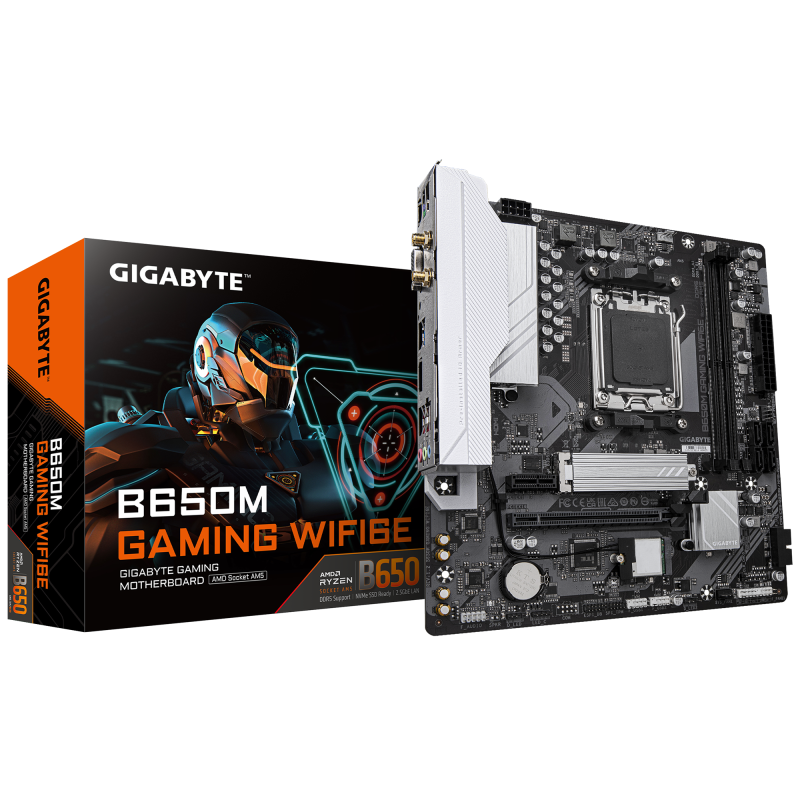

MB GIGABYTE B650M GAMING WIFI6E AM5

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

BIOS type: UEFI AMI

BIOS memory size: 256 Mbit

Clear CMOS jumper: Yes

Bluetooth: Yes

1st M.2 highest PCI Express generation: 4.0

1st M.2 largest key size: 2580

PCI Express x1 (Gen 3.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 1

Component for: PC

Audio output channels: 7.1 channels

Motherboard form factor: micro ATX

Motherboard chipset family: AMD

Windows operating systems supported: Windows 10 x64, Windows 11

PC health monitoring: Fan, Temperature, Voltage

Motherboard chipset: AMD B650

Power source type: ATX

Parallel processing technology support: Not supported

Maximum resolution: 4096 x 2160 pixels

HDCP: Yes

Front panel connector: Yes

TPM connector: Yes

RGB LED pin header: Yes

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

Number of chassis fan connectors: 2

EPS power connector (8-pin): Yes

Number of EPS power connectors (8-pin): 1

Number of CPU fan connectors: 1

Number of RGB LED pin headers: 3

Products per shipping (inner) case: 1 pc(s)

Country of origin: China

Supported memory clock speeds: 6400,6200,6000,5600,5200,4800,4400 MHz

Supported memory clock speed (max): 6400 MHz

ECC сompatibility: Non-ECC

Number of memory slots: 4

Memory slots type: DIMM

Unbuffered memory: Yes

Supported memory types: DDR5-SDRAM

Maximum internal memory: 256 GB

Maximum internal memory per slot: 64 GB

Memory channels: Dual-channel

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Ethernet LAN: Yes

Wi-FI: Yes

WLAN controller model: Realtek RTL8852CE

Ethernet interface type: 2.5 Gigabit Ethernet

Wi-Fi standards: Wi-Fi 6E (802.11ax)

Bluetooth version: 5.3

Weight: 720 g

Batteries included: Yes

Bundled software: Norton® Internet Security (OEM version)nLAN bandwidth management software

Screws included: Yes

Antenna included: Yes

Package weight: 12.1 kg

Package height: 68 mm

Package width: 270 mm

Package depth: 268 mm

Warranty period: 3 year(s)

DVI-D ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

USB 2.0 ports quantity: 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

HDMI ports quantity: 1

HDMI version: 2.1

Processor manufacturer: AMD

Processor socket: Socket AM5

Supported processor sockets: Socket AM5

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Ethernet LAN (RJ-45) ports: 1

Microphone in: Yes

Headphone outputs: 1

PS/2 ports quantity: 1

WiFi-AP antenna jack: 2

VGA (D-Sub) ports quantity: 1

Line-in: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

RAID support: Yes

Supported storage drive types: HDD & SSD

Number of HDDs supported: 4

Supported storage drive interfaces: M.2, SATA III

Number of storage drives supported: 5

RAID levels: 0, 1, 10

Height: 35 mm

Depth: 225 mm

Width: 240 mm

RAM-Slots: 4

MB-Format: micro-ATX

MB-Socket: AM5

USB3: 4-8

PCI-Ex1: 1

PCI-Ex16: 1

Onboard-CPU: No

PCI: 0
