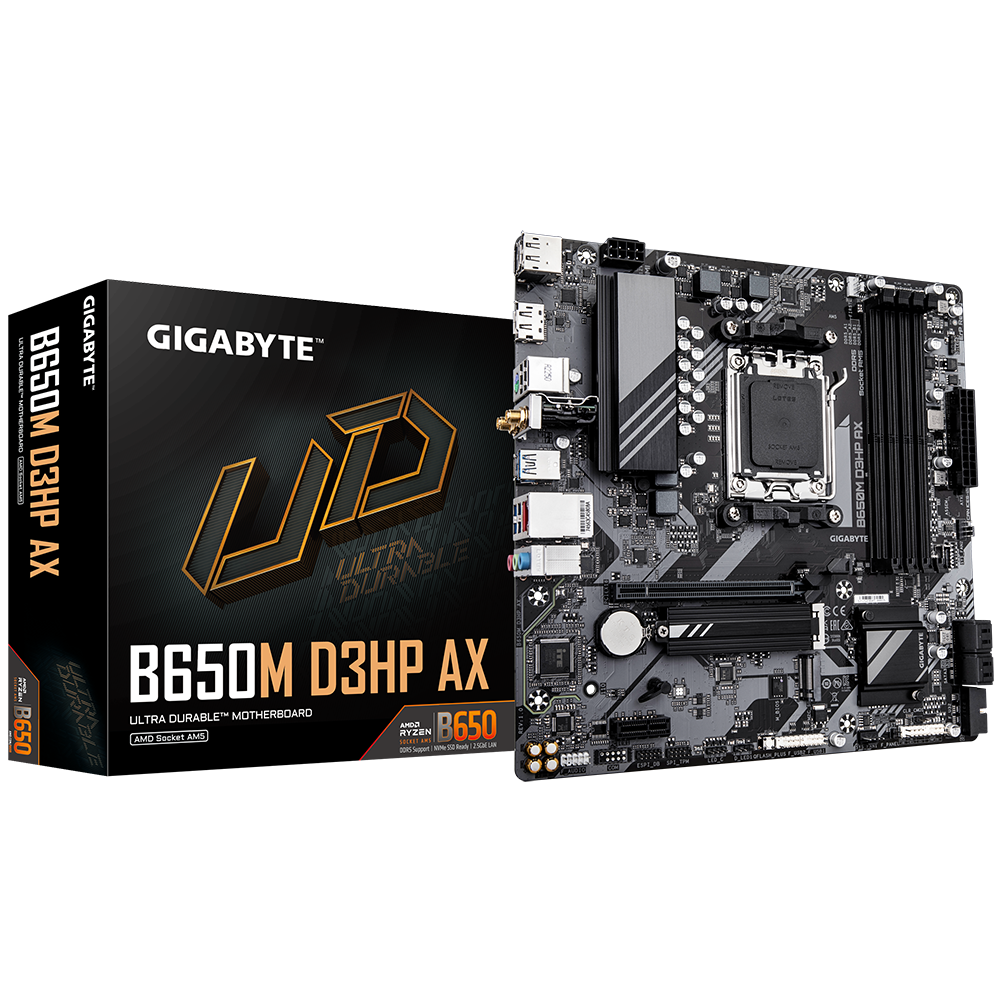

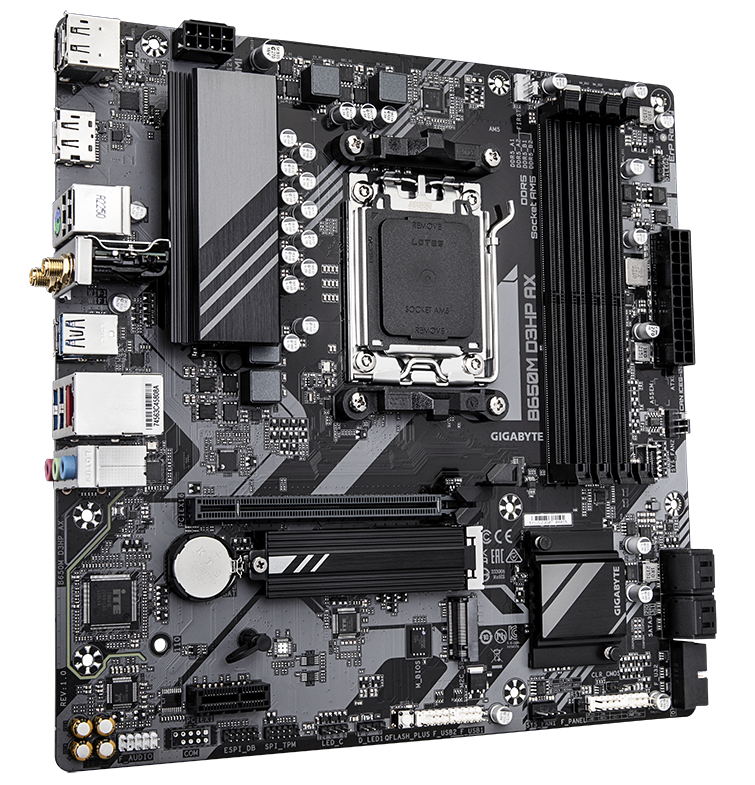

MB Gigabyte B650M D3HP AX

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

BIOS type: UEFI AMI

BIOS memory size: 256 Mbit

Clear CMOS jumper: Yes

Product colour: Brown

2nd M.2 largest key size: 22110

2nd M.2 highest PCI Express generation: 4.0

1st M.2 highest PCI Express generation: 4.0

1st M.2 largest key size: 2580

Number of M.2 (M) slots: 2

PCI Express x1 (Gen 3.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

Audio output channels: 7.1 channels

Audio Chip: Realtek ALC897

Component for: PC

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Motherboard form factor: micro ATX

Motherboard chipset family: AMD

PC health monitoring: Fan, Temperature, Voltage

Motherboard chipset: AMD B650

Power source type: ATX

Discrete graphics support: Yes

Maximum resolution: 4096 x 2160 pixels

DirectX version: 12.0

HDCP: Yes

Parallel processing technology support: Not supported

USB 2.0 connectors: 2

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

Number of chassis fan connectors: 2

EPS power connector (8-pin): Yes

Front panel connector: Yes

TPM connector: Yes

RGB LED pin header: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

12V power connector: Yes

Number of RGB LED pin headers: 3

Number of EPS power connectors (8-pin): 1

Number of CPU fan connectors: 1

Country of origin: China

Supported memory clock speeds: 4800,5200,5600,6000,6200,6400,6600,6800,7000,7200,7600 MHz

ECC сompatibility: Non-ECC

Supported memory clock speed (max): 7600 MHz

Supported memory types: DDR5-SDRAM

Maximum internal memory: 256 GB

Maximum internal memory per slot: 64 GB

Number of memory slots: 4

Memory slots type: DIMM

Unbuffered memory: Yes

Memory channels: Dual-channel

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Ethernet LAN: Yes

Wi-FI: Yes

WLAN controller model: Realtek RTL8852CE

Ethernet interface type: 2.5 Gigabit Ethernet

LAN controller: Realtek RTL8125

Bluetooth version: 5.3

Antenna included: Yes

Bundled software: Norton® Internet Security (OEM version)nLAN bandwidth management software

Screws included: Yes

Package height: 68 mm

Package weight: 1.2 kg

Package width: 270 mm

Package depth: 268 mm

DVI-D ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

USB 2.0 ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

DisplayPorts quantity: 2

DisplayPort version: 1.4

HDMI ports quantity: 1

HDMI version: 2.1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

Processor manufacturer: AMD

Processor socket: Socket AM5

Supported processor sockets: Socket AM5

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Microphone in: Yes

Headphone outputs: 1

VGA (D-Sub) ports quantity: 0

PS/2 ports quantity: 1

Line-in: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

RAID support: Yes

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

Number of HDDs supported: 4

RAID levels: 0, 1, 10

Number of storage drives supported: 6

Height: 35 mm

Width: 244 mm

Depth: 24.4 mm

Onboard-CPU: No

PCI: 0

Serial-or-Paralel: No/No
