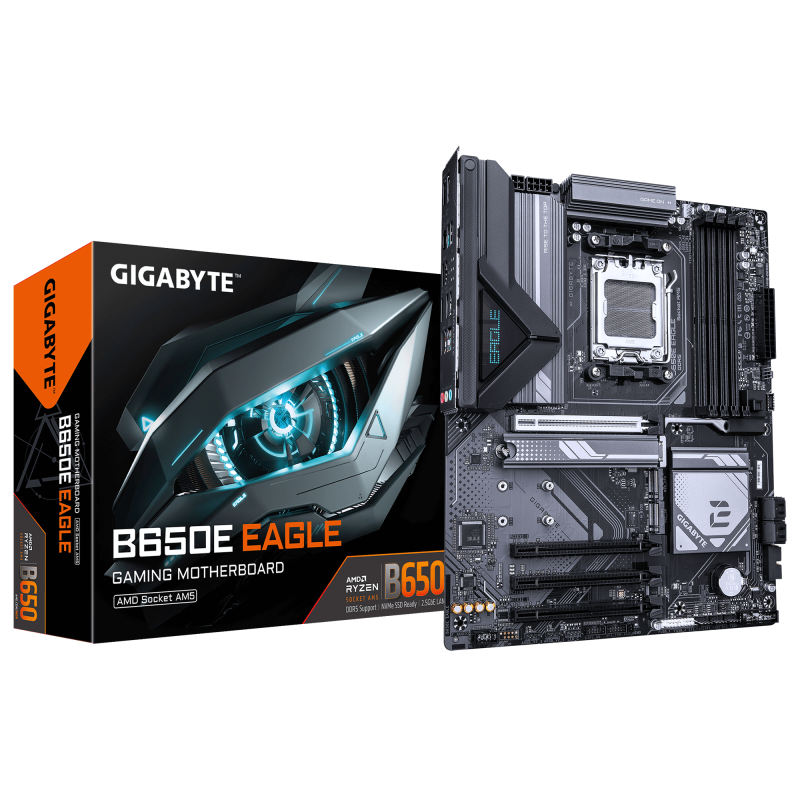

MB Gigabyte B650E EAGLE

Lithium weight per battery: 0.07 g

Battery capacity: 220 mAh

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

BIOS type: UEFI AMI

BIOS memory size: 256 Mbit

Clear CMOS jumper: Yes

Cooling type: Passive

Product colour: Dark brown

Number of M.2 (M) slots: 3

1st M.2 highest PCI Express generation: 5.0

2nd M.2 largest key size: 22110

2nd M.2 highest PCI Express generation: 4.0

3rd M.2 largest key size: 22110

3rd M.2 highest PCI Express generation: 4.0

PCI Express x16 (Gen 3.x) slots: 2

1st M.2 largest key size: 22110

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

Audio Chip: Realtek ALC897

Audio output channels: 7.1 channels

Component for: PC

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Motherboard chipset: AMD B650

Motherboard chipset family: AMD

Motherboard form factor: ATX

PC health monitoring: Fan, Temperature, Voltage, Water cooling

Power source type: ATX

Maximum resolution: 4096 x 2160 pixels

DirectX version: 12.0

Parallel processing technology support: Not supported

HDCP: Yes

HDCP version: 2.3

USB 2.0 connectors: 2

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Front panel connector: Yes

Number of CPU fan connectors: 2

Number of chassis fan connectors: 4

TPM connector: Yes

Number of water pump connectors: 2

RGB LED pin header: Yes

Number of RGB LED pin headers: 4

12V power connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Peripheral (Molex) power connectors (4-pin): 1

Number of EPS power connectors (8-pin): 1

Country of origin: China

Products per shipping (inner) case: 1 pc(s)

Supported memory clock speeds: 8200,8000,7950,7900,7800,7600,7200,6800,6600,6400,6200,6000,5600,5200,4800 MHz

Supported memory clock speed (max): 8200 MHz

ECC сompatibility: Non-ECC

Supported memory types: DDR5-SDRAM

Maximum internal memory: 256 GB

Maximum internal memory per slot: 64 GB

Number of memory slots: 4

Memory slots type: DIMM

Unbuffered memory: Yes

Memory channels: Dual-channel

Ethernet LAN: Yes

Wi-FI: No

Ethernet interface type: 2.5 Gigabit Ethernet

LAN controller: Realtek RTL8125

Weight: 1.61 kg

Batteries included: Yes

Bundled software: Norton® Internet Security (OEM version)

Screws included: Yes

Package weight: 1.84 kg

Package width: 335 mm

Package depth: 270 mm

Package height: 80 mm

Warranty period: 3 year(s)

DVI-D ports quantity:

DisplayPorts quantity: 1

USB 2.0 ports quantity: 4

DisplayPort version: 1.4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

HDMI ports quantity: 1

HDMI version: 2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

Processor manufacturer: AMD

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor socket: Socket AM5

Supported processor sockets: Socket AM5

Microphone in: Yes

Headphone outputs: 1

Ethernet LAN (RJ-45) ports: 1

PS/2 ports quantity: 1

VGA (D-Sub) ports quantity: 0

Line-in: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

RAID support: Yes

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

Number of HDDs supported: 4

Number of storage drives supported: 7

RAID levels: 0, 1, 5, 10

Height: 35 mm

Width: 305 mm

Depth: 244 mm
