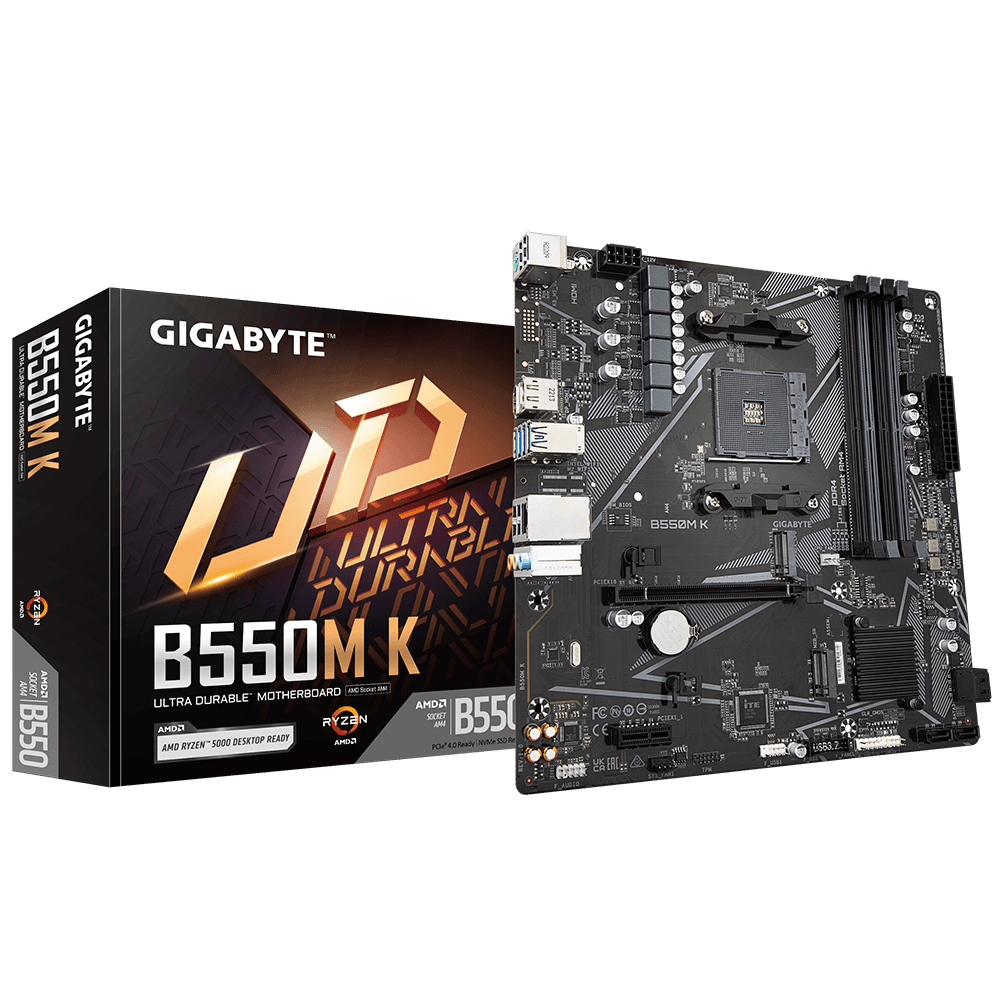

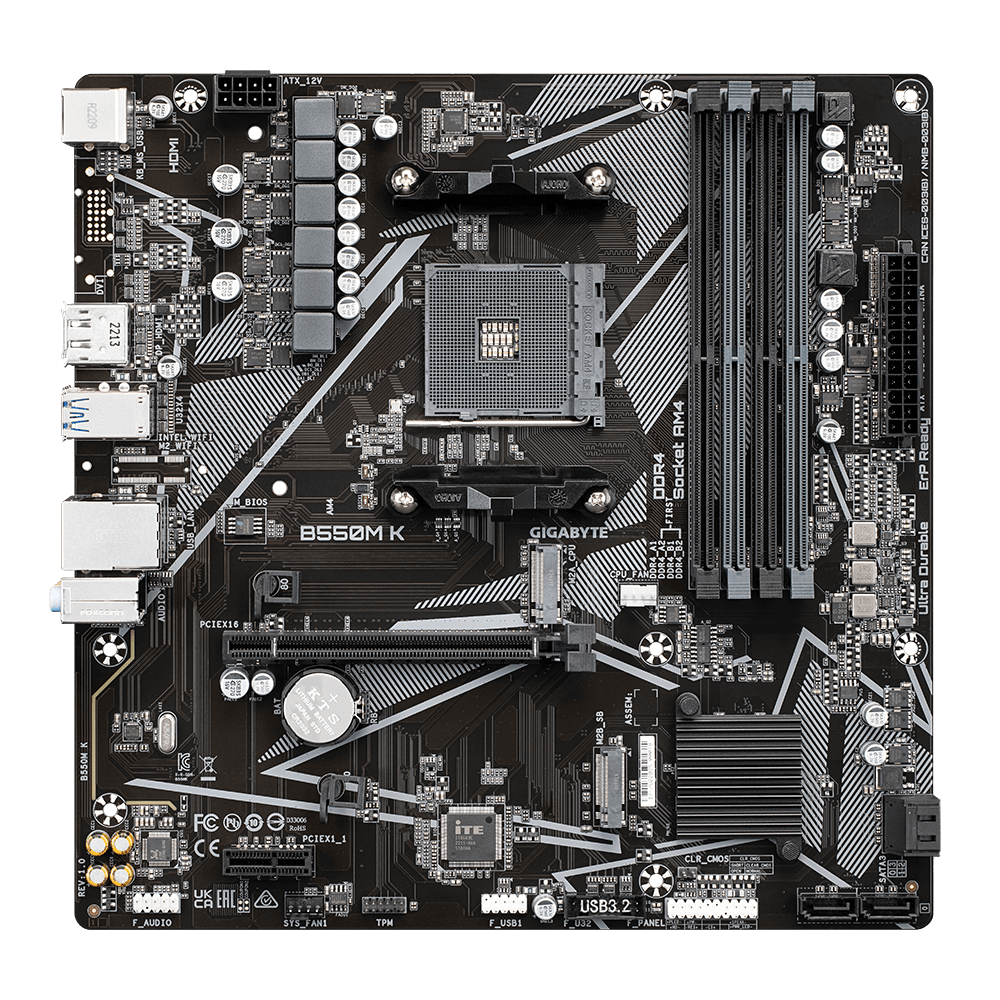

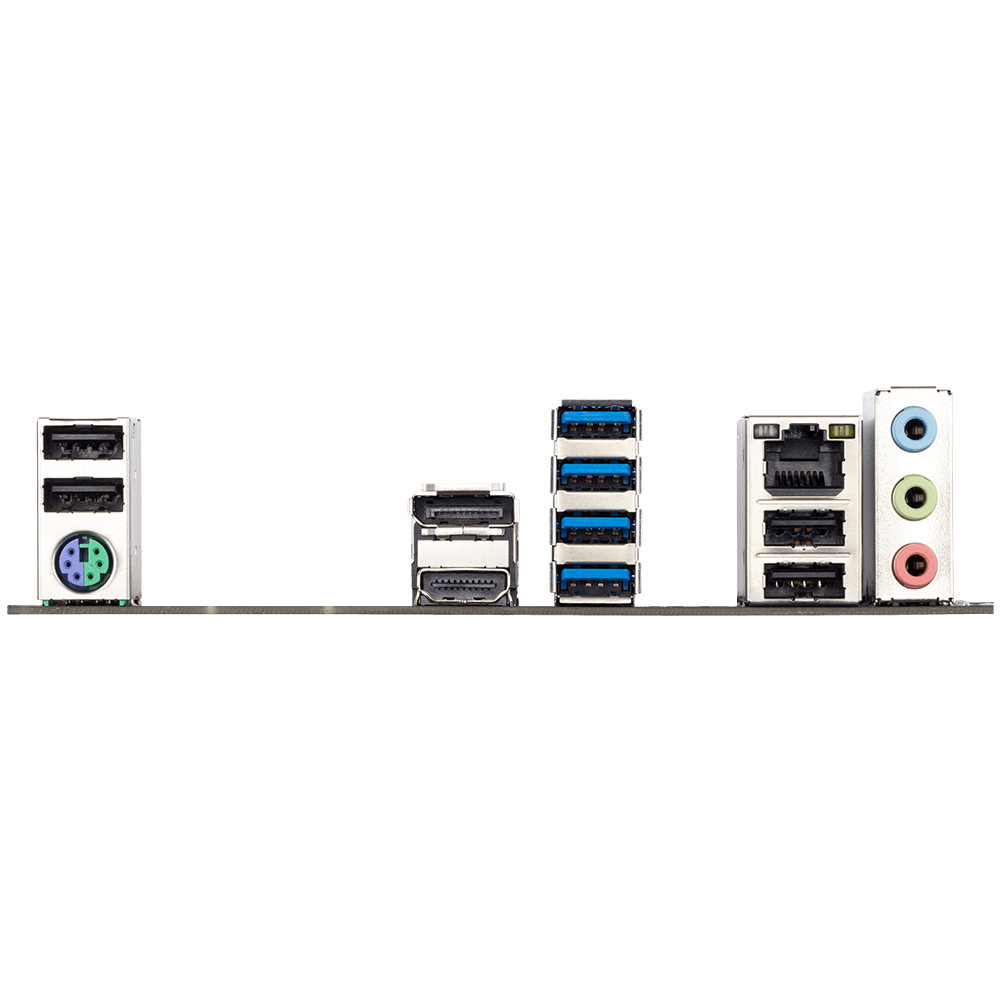

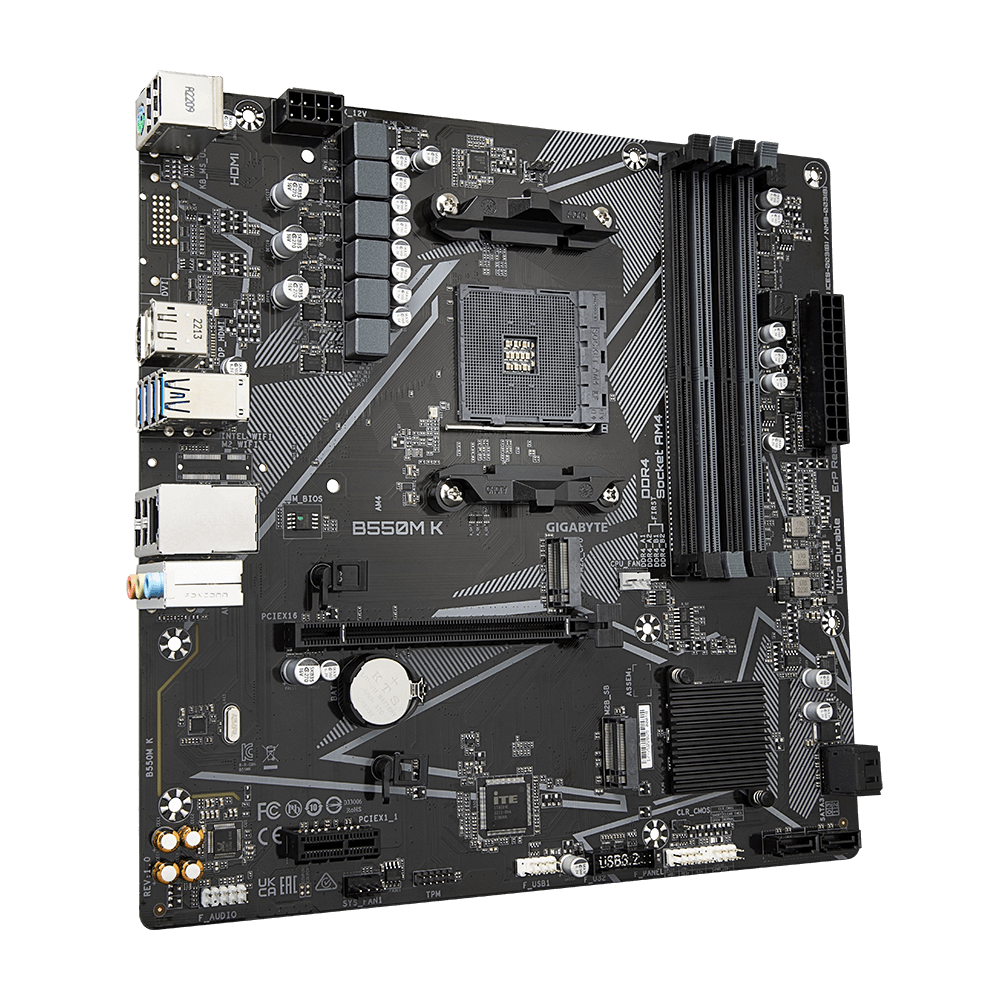

MB Gigabyte B550M K AM4 DDR4

Placa de baza Gigabyte B550M K AM4, 4x DDR4, 1x DisplayPort, 1x HDMI, 1x PCIe x16, 1x PCIe x1, 2x M.2, 4x SATA 6Gb/s, 1Gbps LAN, mATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
BIOS memory size: 128 Mbit
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
1st M.2 largest key size: 2280
2nd M.2 largest key size: 2280
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x1 slots: 1
1st M.2 highest PCI Express generation: 4.0
2nd M.2 highest PCI Express generation: 3.0
Product colour: Brown
PC health monitoring: Fan, Temperature, Voltage
Power source type: ATX
Audio output channels: 7.1 channels
Audio Chip: Realtek ALC897
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Cooling type: Passive
Motherboard chipset: AMD B550
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Maximum resolution: 5120 x 2880 pixels
Parallel processing technology support: Not supported
On-board graphics card: Yes
Graphics card family: AMD
HDCP: Yes
DirectX version: 12.0
Number of EPS power connectors (8-pin): 1
Audio connector: Yes
Power fan connector: Yes
Number of CPU fan connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Front panel connector: Yes
TPM connector: Yes
USB 2.0 connectors: 1
Number of chassis fan connectors: 1
Total number of SATA connectors: 4
12V power connector: Yes
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Supported memory clock speeds: 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
Memory channels: Dodeca-channel
Maximum internal memory per slot: 32 GB
Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Supported memory clock speed (max): 4733 MHz
ECC сompatibility: ECC & Non-ECC
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Supported memory types: DDR4-SDRAM
Maximum internal memory: 128 GB
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-FI: No
LAN controller: Realtek RTL8111H
Screws included: Yes
Batteries included: Yes
Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software
Package height: 54 mm
Package width: 265 mm
Package depth: 265 mm
Package weight: 837 g
Supported processor sockets: Socket AM4
Maximum internal memory supported by processor: 128 GB
Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Processor socket: Socket AM4
Processor manufacturer: AMD
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPort version: 1.4
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
Line-in: Yes
DVI-D ports quantity: 0
PS/2 ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
Headphone outputs: 1
Number of HDDs supported: 2
Supported storage drive interfaces: M.2, SATA
RAID levels: 0, 1, 10
Number of storage drives supported: 6
Supported storage drive types: HDD & SSD
RAID support: Yes
Warranty period: 3 year(s)
Depth: 24.4 mm
Height: 35 mm
Width: 244 mm
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
