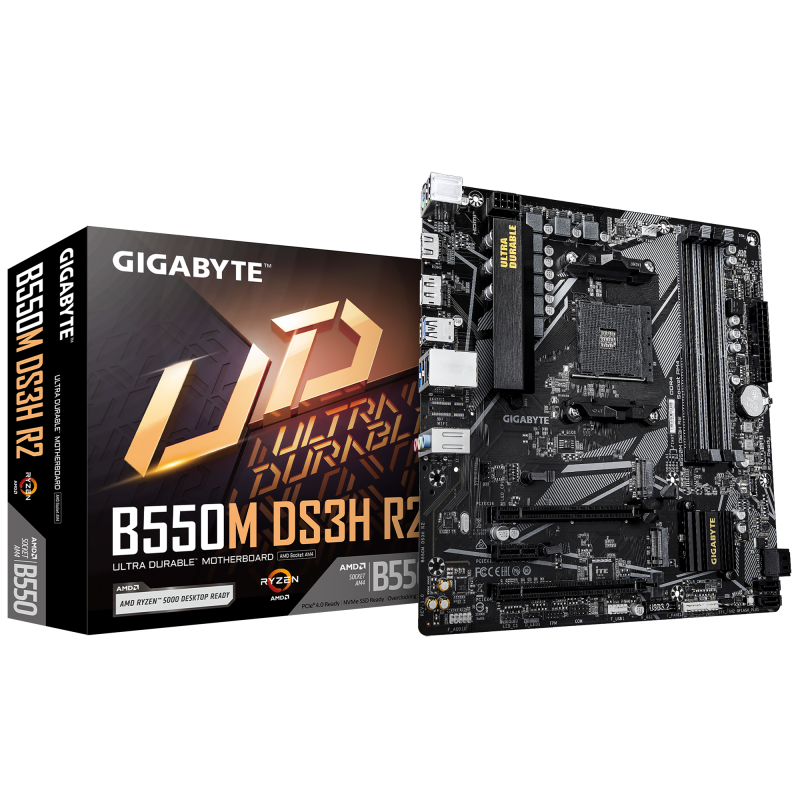

MB GIGABYTE B550M DS3H R2 AM4

Placa de Baza GIGABYTE B550M DS3H R2 AM4, 4x DDR4, 1x DP 1x HDMI, 2x PCIE 4.0 x16 1x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
BIOS memory size: 128 Mbit
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
1st M.2 largest key size: 2280
2nd M.2 largest key size: 2280
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
1st M.2 highest PCI Express generation: 4.0
2nd M.2 highest PCI Express generation: 3.0
Audio Chip: Realtek ALC1220-VB
PC health monitoring: Fan, Temperature, Voltage
Product colour: Dark brown
Power source type: ATX
Cooling type: Passive
Motherboard chipset: AMD B550
Audio output channels: 7.1 channels
Component for: PC
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Parallel processing technology support: Not supported
Maximum resolution: 5120 x 2880 pixels
HDCP: Yes
DirectX version: 12.0
Number of EPS power connectors (8-pin): 1
Number of CPU fan connectors: 1
Number of RGB LED pin headers: 5
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Serial port headers: 1
Front panel connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
Products per shipping (inner) case: 1 pc(s)
Maximum internal memory per slot: 32 GB
Supported memory clock speeds: 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
Supported memory clock speed (max): 4733 MHz
ECC сompatibility: ECC & Non-ECC
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel
Maximum internal memory: 128 GB
Ethernet LAN: Yes
Wi-FI: No
LAN controller: Realtek RTL8111H
Ethernet interface type: Gigabit Ethernet
Weight: 870 g
Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software
Batteries included: Yes
Screws included: Yes
Package height: 54 mm
Package width: 265 mm
Package depth: 265 mm
Package weight: 947 g
Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Supported processor sockets: Socket AM4
Processor socket: Socket AM4
Processor manufacturer: AMD
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPort version: 1.4
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
Line-in: Yes
DVI-D ports quantity: 0
PS/2 ports quantity: 1
Microphone in: Yes
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 1
Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III
Number of HDDs supported: 4
RAID levels: 0, 1, 10
Number of storage drives supported: 6
Supported storage drive types: HDD & SSD
RAID support: Yes
Warranty period: 3 year(s)
Height: 35 mm
Width: 244 mm
Depth: 24.4 mm
PCI-Ex16: 2
RAM-Slots: 4
MB-Format: micro-ATX
MB-Socket: AM4
PCI: 0
Serial-or-Paralel: No/No
USB3: 4-8
PCI-Ex1: 1
Onboard-CPU: No
