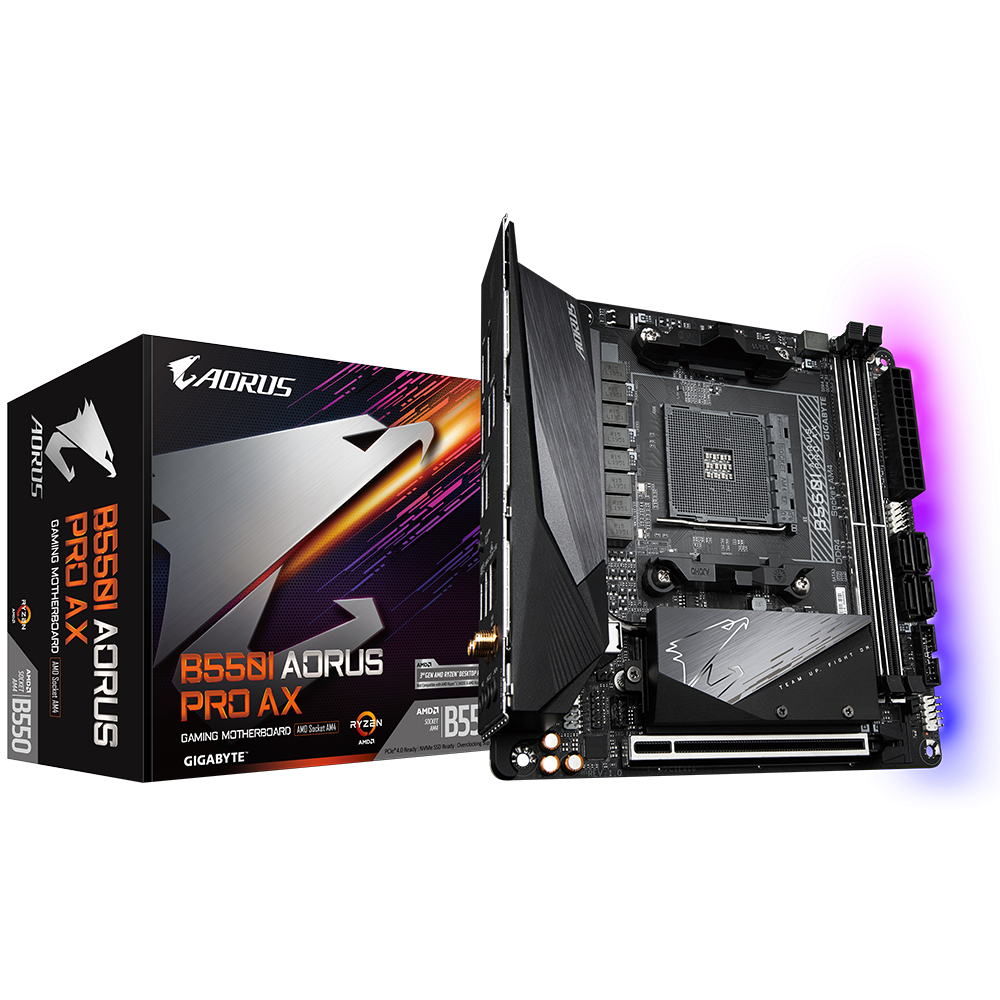

MB GIGABYTE B550I AORUS PRO AX AM4

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

BIOS type: UEFI AMI

BIOS memory size: 256 Mbit

Clear CMOS jumper: Yes

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

PCI Express x16 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 2

Motherboard chipset: AMD B550

Motherboard chipset family: AMD

Audio output channels: 7.1 channels

Windows operating systems supported: Windows 10 x64, Windows 11 x64

PC health monitoring: Fan, Temperature, Voltage

Motherboard form factor: mini ITX

Audio Chip: Realtek ALC1220-VB

Component for: Nettop

Number of displays supported: 3

DirectX version: 12.0

Parallel processing technology support: Not supported

Maximum resolution: 5120 x 2880 pixels

HDCP: Yes

On-board graphics card: No

Front panel connector: Yes

RGB LED pin header: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Number of SATA II connectors:

Number of SATA connectors:

Number of Parallel ATA connectors:

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

Number of chassis fan connectors: 2

Total number of SATA connectors: 4

12V power connector: Yes

USB 2.0 connectors: 1

Harmonized System (HS) code: 84733020

Country of origin: Taiwan

Supported memory clock speeds: 2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4400,4600,4800,5100,5200,5300 MHz

Supported memory clock speed (max): 5300 MHz

ECC сompatibility: ECC & Non-ECC

Memory slots type: DIMM

Unbuffered memory: Yes

Number of memory slots: 2

Supported memory types: DDR4-SDRAM

Memory channels: Dual-channel

Maximum internal memory: 64 GB

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Ethernet LAN: Yes

Wi-FI: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Bluetooth version: 5.3

Weight: 790 g

mSATA ports quantity:

Package width: 265 mm

Package depth: 235 mm

Package height: 97 mm

Package weight: 1.4 kg

DVI-D ports quantity:

DisplayPort version: 1.4

HDMI version: 2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

USB 2.0 ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

HDMI ports quantity: 2

DisplayPorts quantity: 1

Processor socket: Socket AM4

Processor manufacturer: AMD

Compatible processor series: AMD Ryzen 3000 Series

Maximum internal memory supported by processor: 64 GB

Maximum number of SMP processors: 1

PS/2 ports quantity:

eSATA ports quantity:

Firewire (IEEE 1394) ports:

VGA (D-Sub) ports quantity: 0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

RAID support: Yes

Number of HDDs supported: 4

RAID levels: 0, 1, 10

Number of storage drives supported: 6

Supported storage drive interfaces: M.2, SATA

Height: 35 mm

Width: 170 mm

Depth: 170 mm

CPU încorporat: No

PCI: 0

Garantia Produsului: 36 luni
