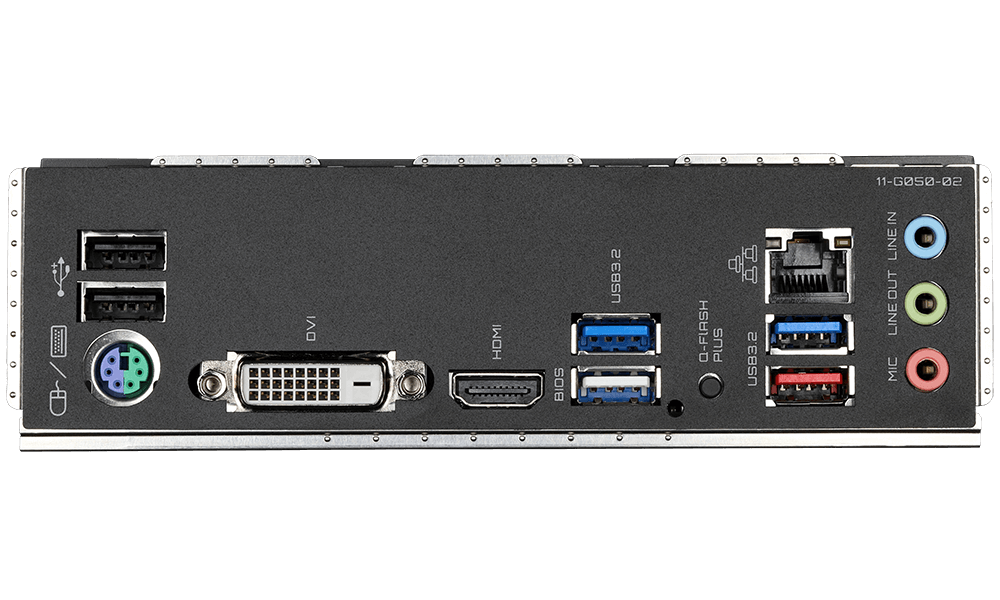

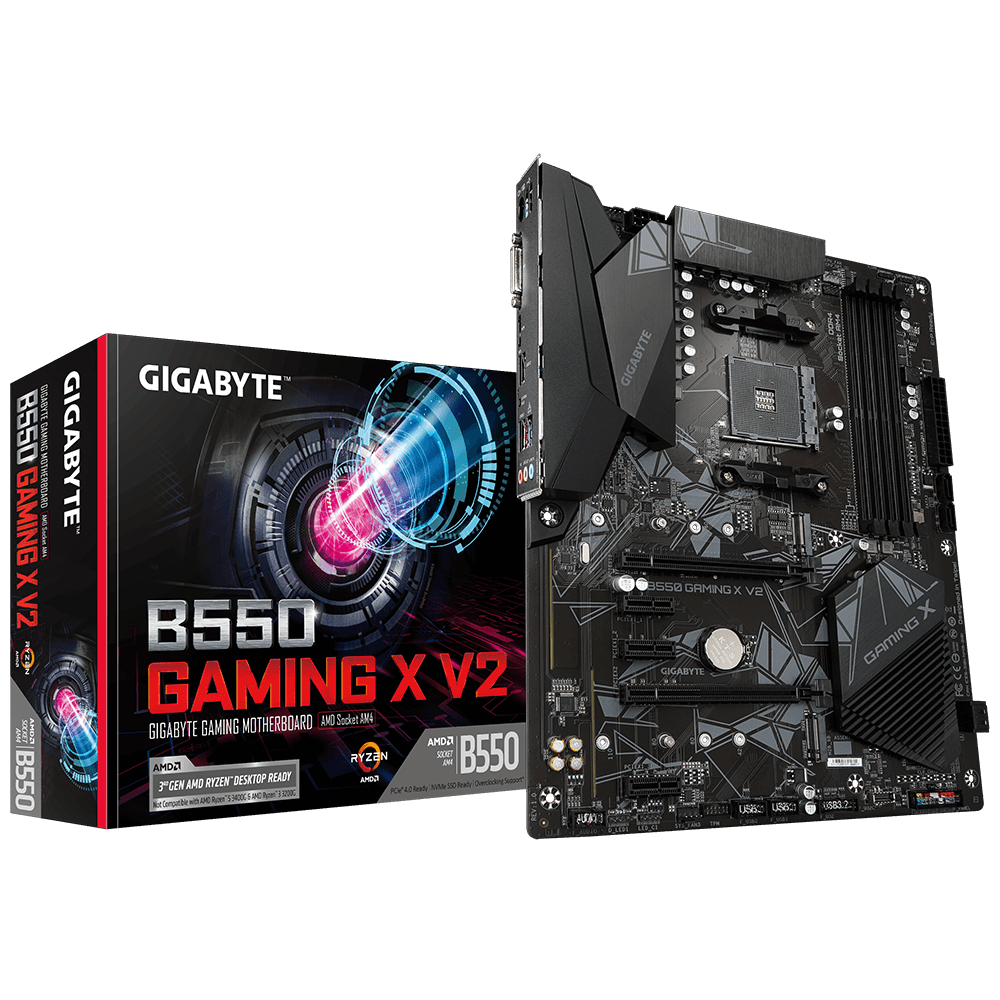

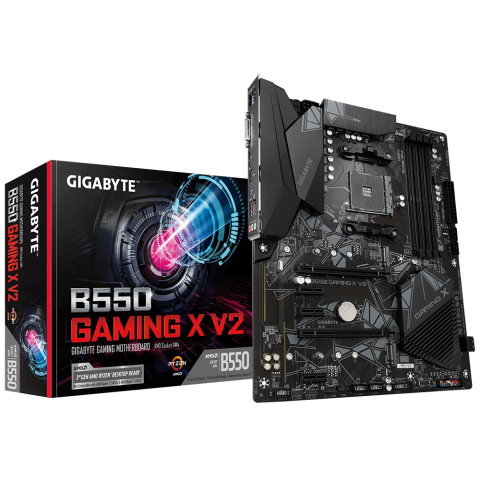

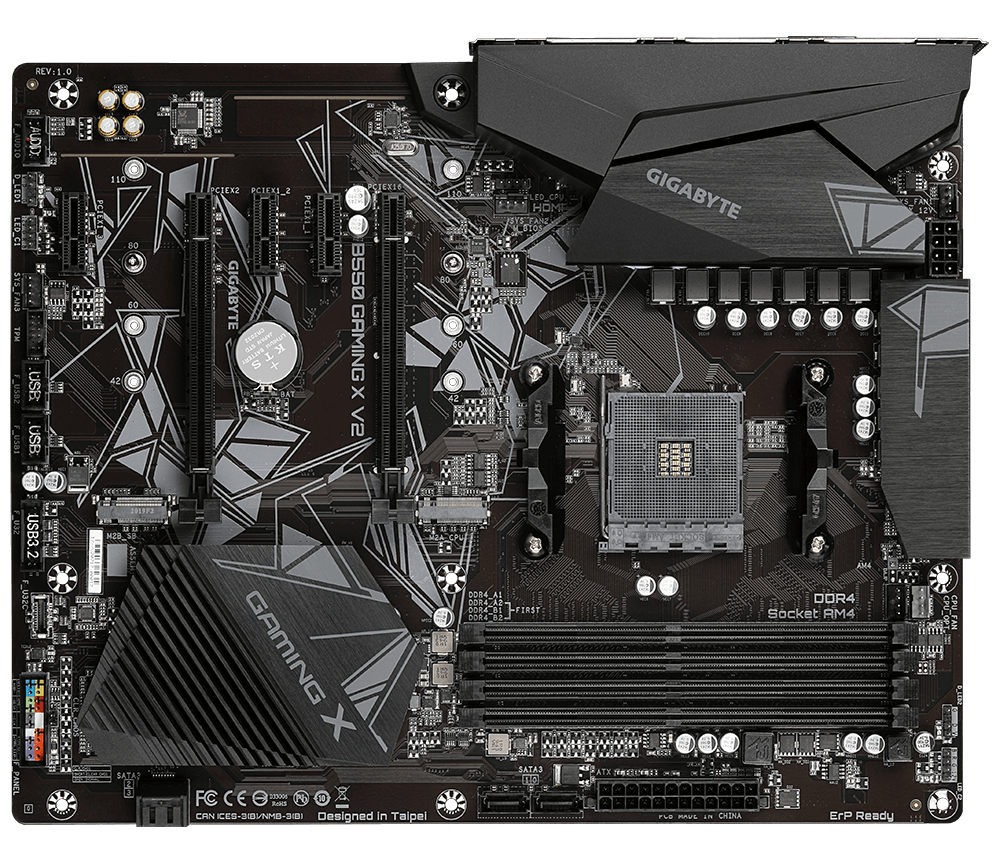

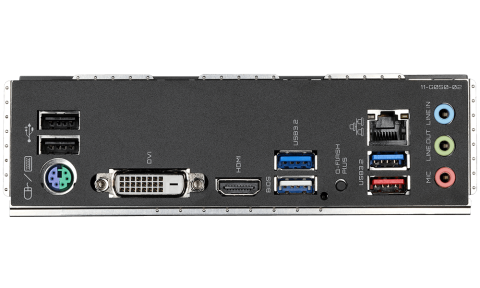

MB Gigabyte B550 GAMING X V2 AM4

Placa de baza Gigabyte B550 GAMING X V2 Socket AM4 AMD B550 Gaming Motherboard with 10+3 Phases Digital Twin Power Design, Enlarged Surface Heatsinks, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 x4 M.2, GIGABYTE Gaming LAN with Bandwidth Management, Front USB Type-C™, RGB FUSION 2.0, Q-Flash Plus Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs 10+3 Phases Digital Twin Power Design with Low RDS(on) MOSFETs Ultra Durable™ PCIe 4.0 Ready x16 Slot Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connectors GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management Front USB 3.2 Gen1 Type-C™ and HDMI & DVI-D for Multiple Display High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality RGB FUSION 2.0 support Addressable LED & RGB LED Strips Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card Anti-Sulfur Resistors Design https://www.gigabyte.com/Motherboard/B550-Gaming-X-V2-rev-10#kf
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
BIOS memory size: 128 Mbit
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 3
PCI Express x16 slots: 2
2nd M.2 largest key size: 22110
PCI Express x16 (Gen 3.x) slots: 2
1st M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 22110
PCI Express x1 slots: 3
2nd M.2 highest PCI Express generation: 3.0
Supported processor sockets (cooler): Socket AM4
Product colour: Brown
Power source type: ATX
Cooling type: Passive
Motherboard chipset: AMD B550
Audio Chip: Realtek ALC897
Audio output channels: 7.1 channels
Component for: PC
Motherboard chipset family: AMD
Motherboard form factor: ATX
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Parallel processing technology support: Not supported
DirectX version: 12.0
Graphics card family: AMD
On-board graphics card: No
HDCP: Yes
Maximum graphics card memory: 16 MB
S/PDIF out connector: No
Number of RGB LED pin headers: 5
Number of chassis fan connectors: 3
Power fan connector: Yes
Number of CPU fan connectors: 1
Number of EPS power connectors (8-pin): 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of water pump connectors: 4
Front panel connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
Total number of SATA connectors: 4
12V power connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Number of SATA II connectors: 0
Number of SATA connectors: 0
Number of Parallel ATA connectors: 0
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Harmonized System (HS) code: 84733020
Supported memory clock speeds: 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
Maximum internal memory per slot: 32 GB
Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 16GB, 32GB
Supported memory clock speed (max): 4733 MHz
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
ECC сompatibility: ECC & Non-ECC
Supported memory types: DDR4-SDRAM
Maximum internal memory: 128 GB
Memory channels: Dual-channel
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-FI: No
LAN controller: Realtek RTL8111H
mSATA ports quantity: 0
DVI port: Yes
Supported DIMM module capacities: 32GB
Weight: 11.2 kg
Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software
Batteries included: Yes
Screws included: Yes
Package weight: 17.1 kg
Package width: 335 mm
Package depth: 270 mm
Package height: 80 mm
Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Supported processor sockets: Socket AM4
Maximum internal memory supported by processor: 128 GB
Processor socket: Socket AM4
Processor manufacturer: AMD
Maximum number of SMP processors: 1
DVI-D ports quantity: 1
VGA (D-Sub) ports quantity: 0
PS/2 ports quantity: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
HDMI ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB connector type: USB Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Line-in: Yes
eSATA ports quantity: 0
Firewire (IEEE 1394) ports: 0
Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
Headphone outputs: 1
RAID levels: 0, 1, 10
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 6
Number of HDDs supported: 4
Warranty period: 3 year(s)
Height: 35 mm
Width: 30.5 mm
Depth: 24.4 mm
CPU încorporat: No
PCI: 0
Serial-or-Paralel: No/No
