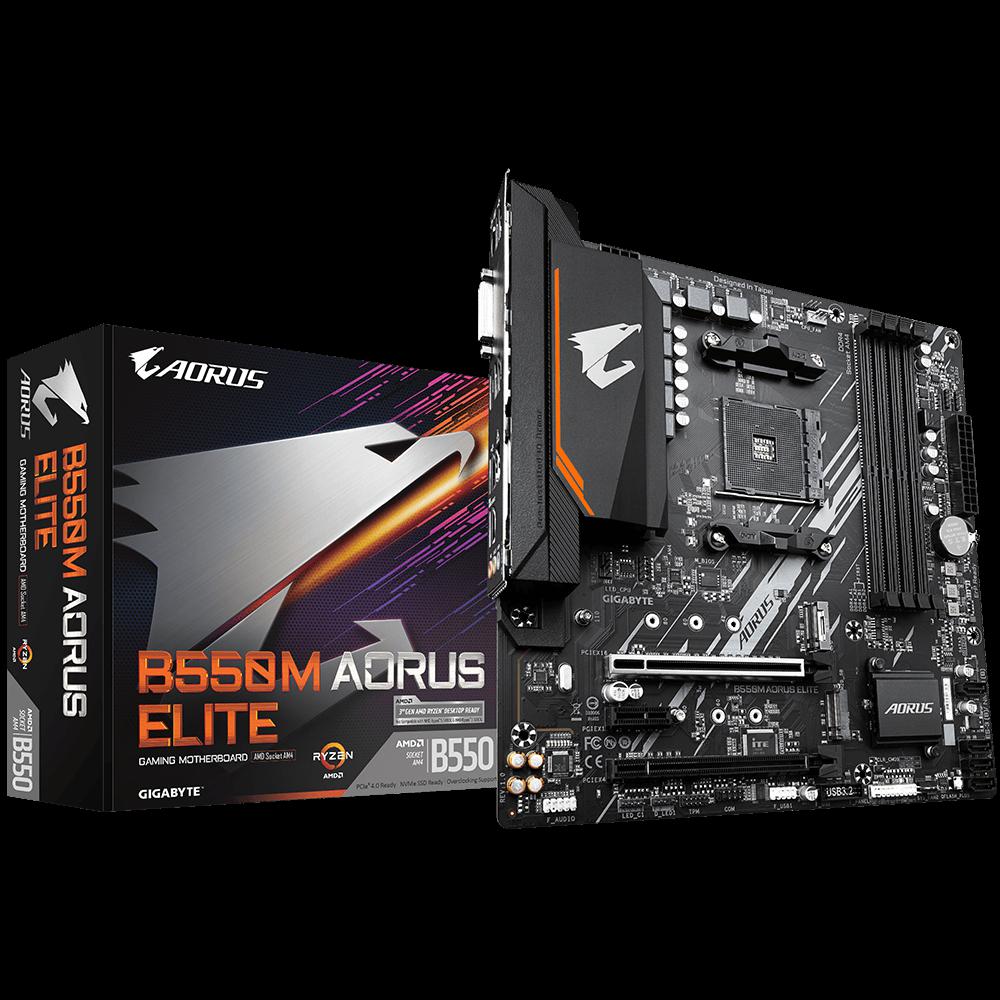

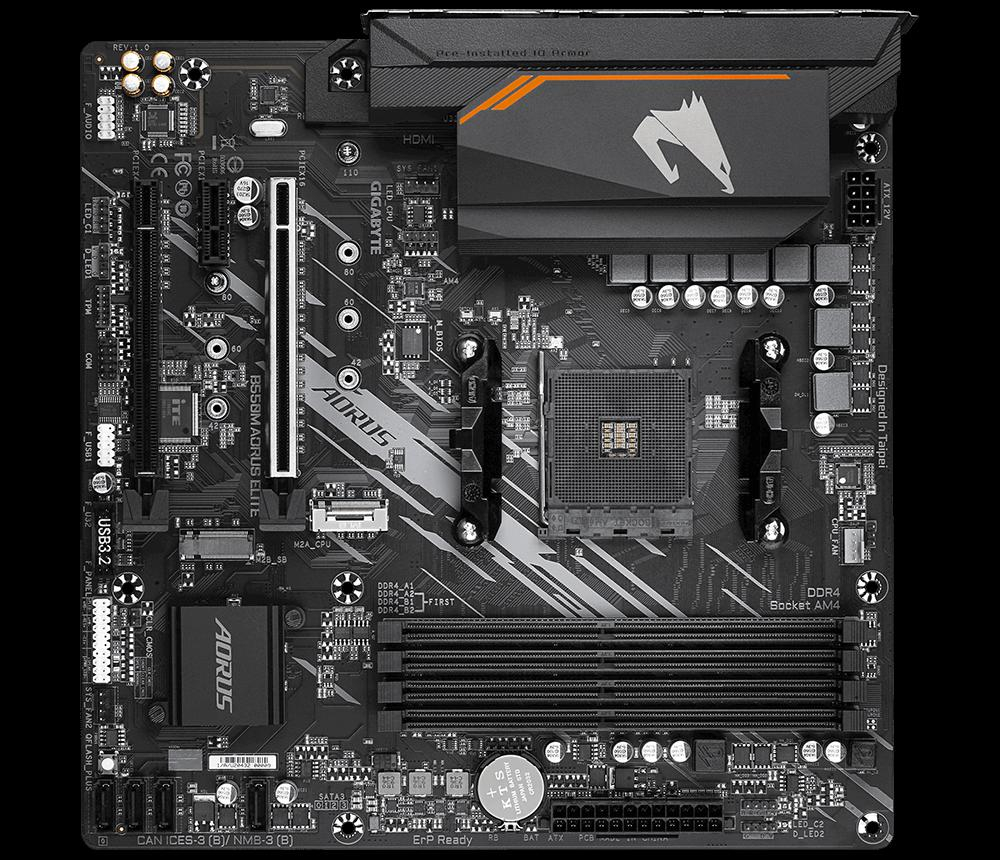

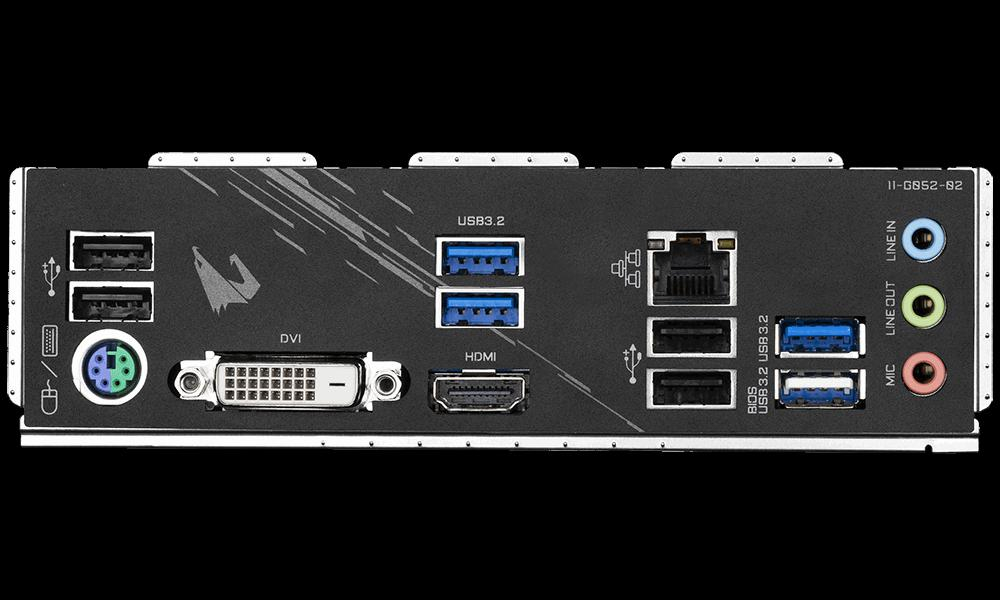

MB GIGABYTE AMD B550M AORUS ELITE

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

Clear CMOS button: Yes

BIOS type: UEFI AMI

BIOS memory size: 256 Mbit

Clear CMOS jumper: Yes

Cooling type: Active

Product colour: Brown

PCI Express x4 slots: 1

PCI Express x1 (Gen 3.x) slots: 1

PCI Express x16 slots: 1

Number of M.2 (M) slots: 2

PCI Express x1 slots: 1

Motherboard chipset: AMD B550

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Motherboard form factor: micro ATX

Motherboard chipset family: AMD

Audio Chip: Realtek ALC887

Audio output channels: 7.1 channels

Component for: PC

PC health monitoring: CPU, Fan, LED, Power supply, Temperature, Voltage

Power source type: ATX

Maximum resolution: 4096 x 2160 pixels

Number of displays supported: 2

Discrete graphics support: Yes

HDCP: Yes

Parallel processing technology support: Not supported

DirectX version: 12.0

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Number of SATA II connectors:

Number of Parallel ATA connectors:

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

Number of chassis fan connectors: 2

Total number of SATA connectors: 4

12V power connector: Yes

Front panel connector: Yes

TPM connector: Yes

RGB LED pin header: Yes

USB 2.0 connectors: 1

Serial port headers: 1

Power fan connector: Yes

Harmonized System (HS) code: 84733020

Country of origin: China

Supported memory module capacities: 1GB, 2GB, 4GB, 16GB, 32GB

Supported memory clock speeds: 2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4733 MHz

Supported memory clock speed (max): 4733 MHz

ECC сompatibility: ECC & Non-ECC

Number of memory slots: 4

Memory slots type: DIMM

Unbuffered memory: Yes

Supported memory types: DDR4-SDRAM

Memory channels: Dual-channel

Maximum internal memory: 128 GB

Ethernet LAN: Yes

Ethernet interface type: Gigabit Ethernet

Wi-FI: No

Drivers included: Yes

Bundled software: Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility

Cables included: SATA

Package height: 65 mm

Package width: 265 mm

Package depth: 265 mm

Package weight: 1.27 kg

DVI-D ports quantity: 1

HDMI version: 2.1

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

USB 2.0 ports quantity: 4

Processor socket: Socket AM4

Processor manufacturer: AMD

Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series

Supported processor sockets: Socket AM4

Maximum internal memory supported by processor: 128 GB

Maximum number of SMP processors: 1

eSATA ports quantity:

Firewire (IEEE 1394) ports:

Microphone in: Yes

Headphone outputs: 1

Digital audio optical out: 1

VGA (D-Sub) ports quantity: 0

Serial ports quantity: 1

PS/2 ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

USB connector type: USB Type-A

Supported storage drive types: HDD & SSD

Number of HDDs supported: 4

Supported storage drive interfaces: M.2, SATA III

RAID levels: 0, 1, 10

Number of storage drives supported: 6

Height: 35 mm

Width: 244 mm

Depth: 24.4 mm

RAM-Slots: 4

MB-Format: micro-ATX

MB-Socket: AM4

USB3: 4-8

CPU încorporat: No

PCI-Ex1: 1

PCI-Ex16: 1

PCI: 0

Garantia Produsului: 36 luni
