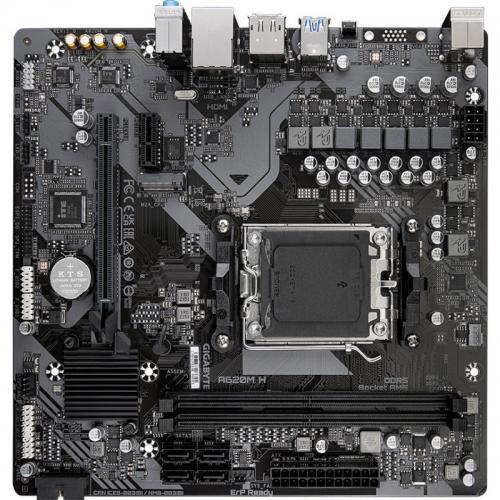

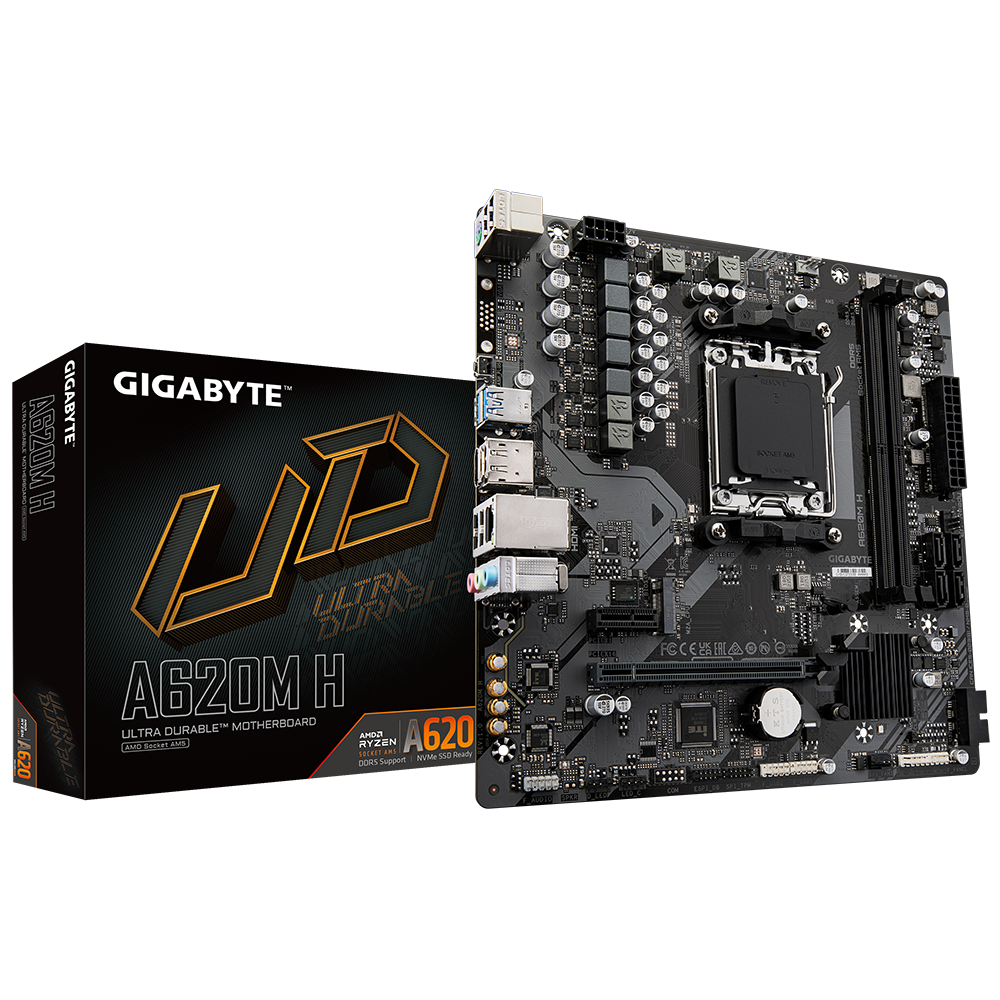

MB GIGABYTE A620M H AM5 DDR5

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

BIOS type: UEFI AMI

BIOS memory size: 256 Mbit

Clear CMOS jumper: Yes

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

Product colour: Brown

PCI Express x16 slots: 1

Number of M.2 (M) slots: 1

PCI Express x1 slots: 1

Audio output channels: 7.1 channels

Component for: PC

PC health monitoring: Fan, Temperature, Voltage, Water cooling

Motherboard form factor: micro ATX

Motherboard chipset family: AMD

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Motherboard chipset: AMD A620

Maximum resolution: 4096 x 2160 pixels

Parallel processing technology support: Not supported

DirectX version: 12.0

HDCP: Yes

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Front panel connector: Yes

TPM connector: Yes

RGB LED pin header: Yes

Total number of SATA connectors: 4

12V power connector: Yes

Country of origin: China

ECC сompatibility: Non-ECC

Supported memory clock speed (max): 7200 MHz

Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB

Supported memory clock speeds: 4400,4800,5200,5600,6000,6200,6400,6800,7200 MHz

Memory slots type: DIMM

Unbuffered memory: Yes

Supported memory types: DDR5-SDRAM

Number of memory slots: 2

Maximum internal memory: 96 GB

Memory channels: Dual-channel

Ethernet LAN: Yes

Ethernet interface type: Gigabit Ethernet

Wi-FI: No

Bundled software: Norton Internet SecuritynLAN bandwidth management software

Cables included: SATA

Package height: 54 mm

Package weight: 897 g

Package width: 265 mm

Package depth: 265 mm

DVI-D ports quantity:

DisplayPorts quantity: 1

DisplayPort version: 1.4

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

HDMI version: 2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

USB 2.0 ports quantity: 4

Processor manufacturer: AMD

Maximum internal memory supported by processor: 96 GB

Processor socket: Socket AM5

Supported processor sockets: Socket AM5

Compatible processor series: AMD Ryzen 7000 Series

Headphone outputs: 3

Microphone in: Yes

VGA (D-Sub) ports quantity: 0

PS/2 ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

USB connector type: USB Type-A, USB Type-C

RAID support: Yes

Supported storage drive types: HDD & SSD

Number of HDDs supported: 4

Supported storage drive interfaces: M.2, SATA III

Number of storage drives supported: 5

RAID levels: 0, 1, 10

Height: 35 mm

Width: 230 mm

Depth: 225 mm

Onboard-CPU: No

PCI: 0

Serial-or-Paralel: No/No

Garantia Produsului: 36 luni
