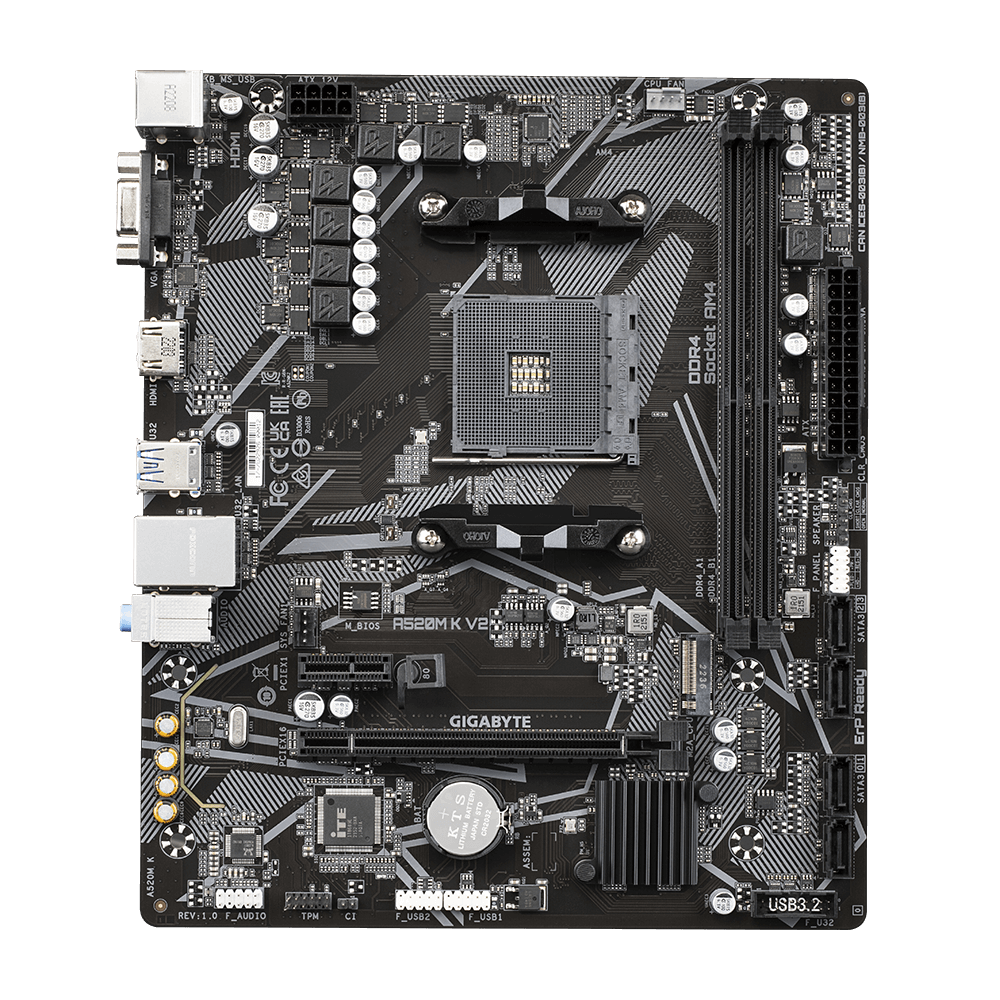

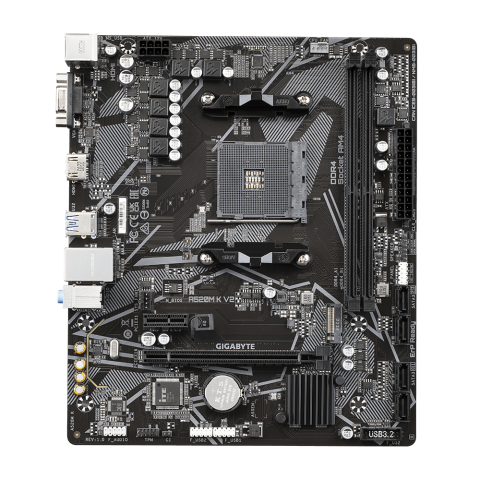

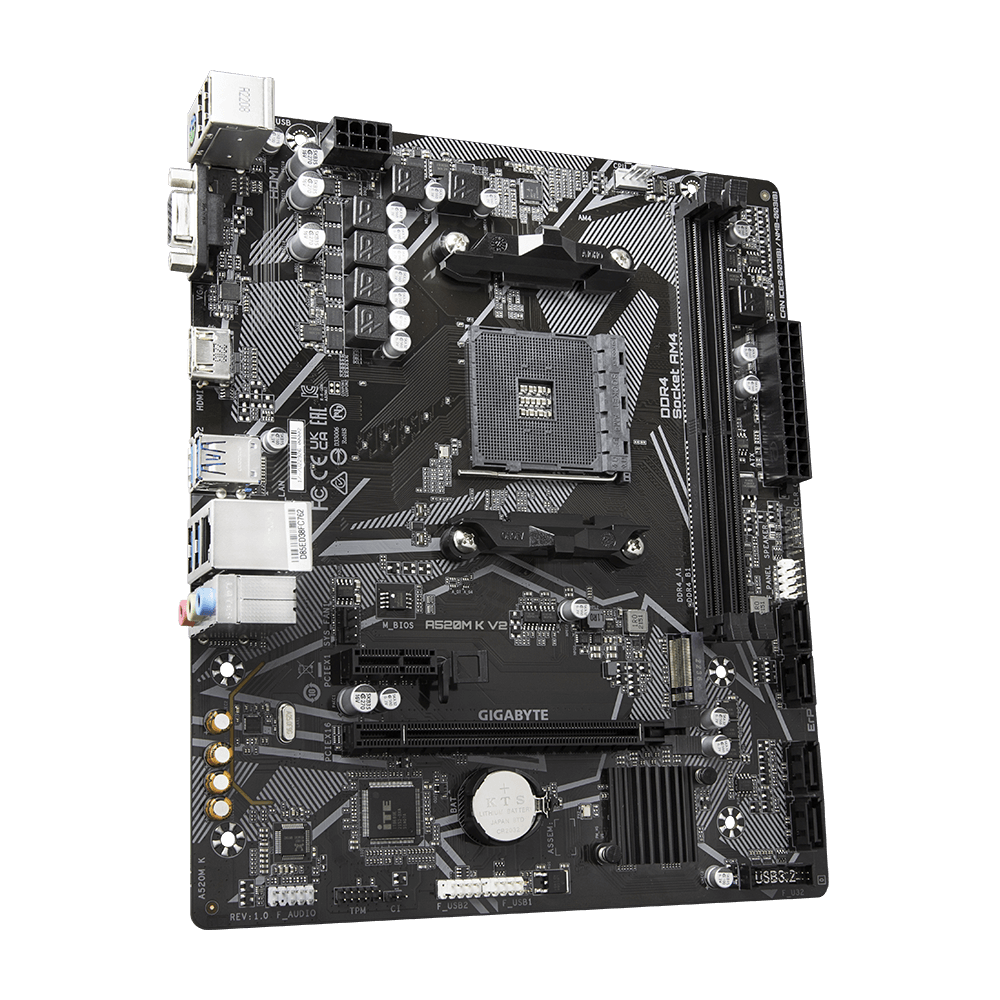

MB Gigabyte A520M K V2 AM4 DDR4

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

BIOS memory size: 128 Mbit

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

PCI Express x16 slots: 1

Number of M.2 (M) slots: 1

PCI Express x1 slots: 1

Component for: PC

Audio output channels: 7.1 channels

Motherboard form factor: micro ATX

Motherboard chipset family: AMD

Motherboard chipset: AMD A520

Windows operating systems supported: Windows 10 x64, Windows 11 x64

PC health monitoring: Fan, Temperature, Voltage

Parallel processing technology support: Not supported

Maximum resolution: 4096 x 2160 pixels

HDCP: Yes

Front panel connector: Yes

TPM connector: Yes

12V power connector: Yes

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Chassis intrusion connector: Yes

Country of origin: China

Supported memory clock speeds: 2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5100 MHz

Supported memory clock speed (max): 5100 MHz

Memory slots type: DIMM

Unbuffered memory: Yes

ECC сompatibility: ECC & Non-ECC

Number of memory slots: 2

Supported memory types: DDR4-SDRAM

Memory channels: Dual-channel

Maximum internal memory: 64 GB

Ethernet LAN: Yes

Ethernet interface type: Gigabit Ethernet

Wi-FI: No

Bundled software: Norton Internet Security

Cables included: SATA

Package width: 265 mm

Package depth: 235 mm

Package height: 52 mm

Package weight: 675 g

DVI-D ports quantity:

HDMI version: 2.1

HDMI ports quantity: 1

USB 2.0 ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Processor socket: Socket AM4

Processor manufacturer: AMD

Supported processor sockets: Socket AM4

Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series

Microphone in: Yes

Headphone outputs: 3

PS/2 ports quantity: 1

USB connector type: USB Type-A

VGA (D-Sub) ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

Supported storage drive types: HDD & SSD

RAID support: Yes

Supported storage drive interfaces: M.2, SATA III

RAID levels: 0, 1, 10

Number of storage drives supported: 5

Height: 35 mm

Width: 233 mm

Depth: 198 mm

MB-Format: micro-ATX

MB-Socket: AM4

RAM-Slots: 2

PCI: 0

USB3: 4-8

PCI-Ex1: 1

PCI-Ex16: 1

Onboard-CPU: No

Garantia Produsului: 36 luni
