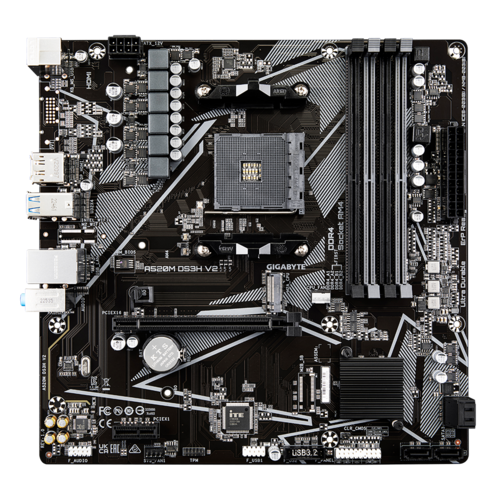

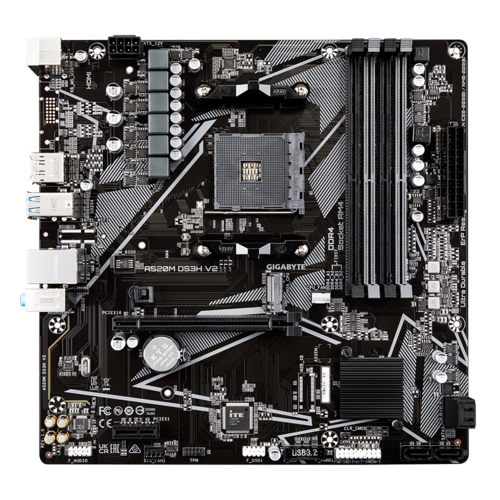

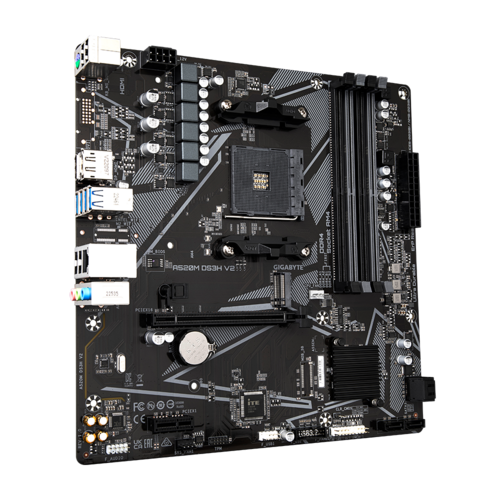

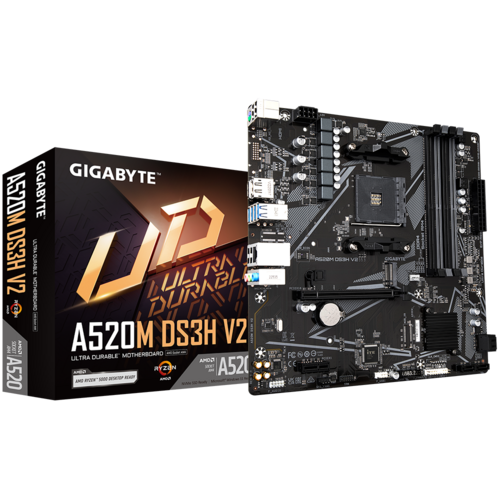

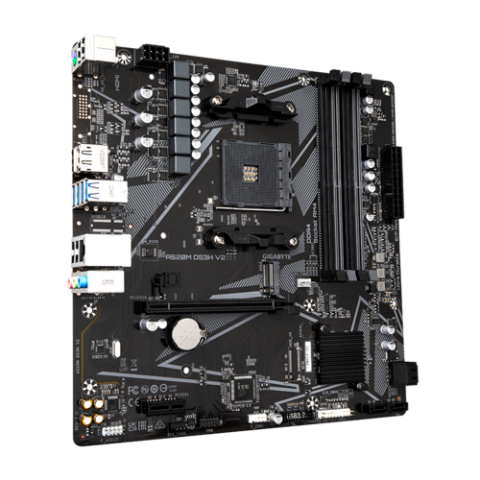

MB GIGABYTE A520M DS3H V2 AM4

Placa de baza GIGABYTE A520M DS3H V2 AM4, 4x DDR4, 1x DP 1x HDMI, 1 PCIE x16 1x PCIE x1, 1x M.2, 4x SATA 6gb/s
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Clear CMOS button: Yes
BIOS memory size: 128 Mbit
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1
Audio output channels: 7.1 channels
Component for: PC
Cooling type: Active
Windows operating systems supported: Windows 10 x64
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Audio Chip: Realtek ALC887
PC health monitoring: CPU, LED, Power supply, Temperature, Voltage
Power source type: ATX
Number of displays supported: 3
Discrete graphics support: Yes
HDCP: Yes
Maximum resolution: 5120 x 2880 pixels
Total number of SATA connectors: 4
12V power connector: Yes
USB 2.0 connectors: 1
Serial port headers: 1
Front panel connector: Yes
TPM connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Number of SATA II connectors: 0
Number of Parallel ATA connectors: 0
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Power fan connector: Yes
Number of EATX power connectors: 1
Country of origin: China
Supported memory clock speeds: 2133,2400,2667,2933,3200,3333,3600,4000,4400,4733 MHz
Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 16GB, 32GB
ECC сompatibility: ECC & Non-ECC
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel
Maximum internal memory: 128 GB
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-FI: No
Drivers included: Yes
Cables included: SATA
Bundled software: Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility
Package width: 265 mm
Package depth: 265 mm
Package weight: 810 g
Package height: 54 mm
Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series
Processor socket: Socket AM4
Processor manufacturer: AMD
Maximum number of SMP processors: 1
Supported processor sockets: Socket AM4
Maximum internal memory supported by processor: 128 GB
eSATA ports quantity: 0
Firewire (IEEE 1394) ports: 0
PS/2 ports quantity: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
HDMI version: 2.1
USB connector type: USB Type-A
DisplayPort version: 2.0
DVI-D ports quantity: 1
Digital audio optical out: 1
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
Microphone in: Yes
Headphone outputs: 1
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
Number of HDDs supported: 4
Number of storage drives supported: 5
RAID levels: 0, 1, 10
Height: 35 mm
Depth: 24.4 mm
Width: 244 mm
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
