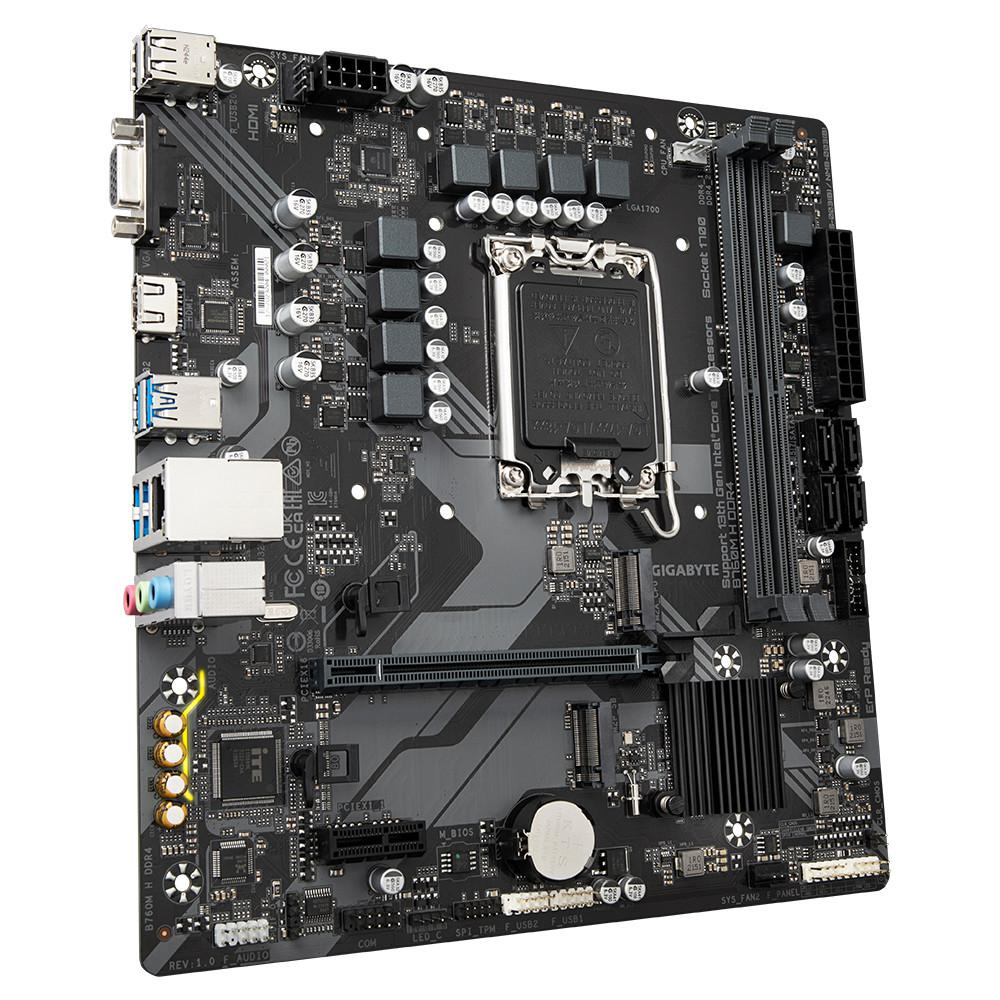

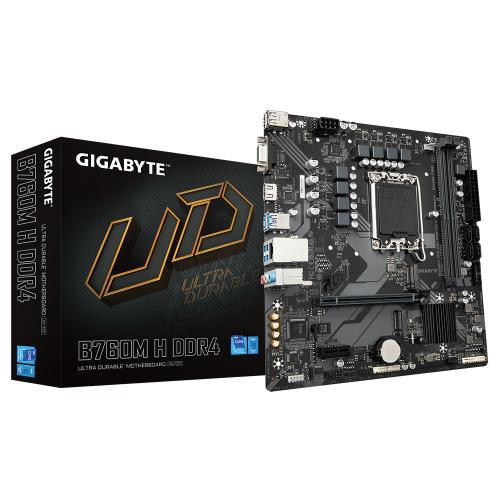

MB GB B760M H DDR4 LGA1700 DDR4

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

BIOS memory size: 128 Mbit

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

Product colour: Brown

PCI Express x16 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 2

Audio output channels: 7.1 channels

Audio Chip: Realtek ALC897

Component for: PC

Windows operating systems supported: Windows 10, Windows 11

Motherboard form factor: micro ATX

Motherboard chipset family: Intel

Power source type: ATX

Motherboard chipset: Intel B760 Express

DirectX version: 12.1

Parallel processing technology support: Not supported

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Front panel connector: Yes

TPM connector: Yes

RGB LED pin header: Yes

Serial port headers: 1

Total number of SATA connectors: 4

Country of origin: China

Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB

Supported memory clock speeds: 2133,2400,2666,2933,3000,3200 MHz

Supported memory clock speed (max): 3200 MHz

ECC сompatibility: Non-ECC

Memory slots type: DIMM

Maximum internal memory: 64 GB

Number of memory slots: 2

Supported memory types: DDR4-SDRAM

Memory channels: Dual-channel

Ethernet LAN: Yes

Wi-FI: No

Ethernet interface type: Gigabit Ethernet

Package height: 54 mm

Package width: 265 mm

Package depth: 265 mm

Package weight: 825 g

DVI-D ports quantity:

DisplayPort version: 1.4

HDMI ports quantity: 1

HDMI version: 1.4

USB 2.0 ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

DisplayPorts quantity: 1

Processor manufacturer: Intel

Processor socket: LGA 1700

Maximum number of SMP processors: 1

Supported processor sockets: LGA 1700

Maximum internal memory supported by processor: 64 GB

Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold

VGA (D-Sub) ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

RAID support: Yes

Number of HDDs supported: 4

RAID levels: 0, 1, 5, 10

Number of storage drives supported: 6

Supported storage drive interfaces: M.2, SATA III

Depth: 215 mm

Height: 35 mm

Width: 230 mm

Onboard-CPU: No

PCI: 0
