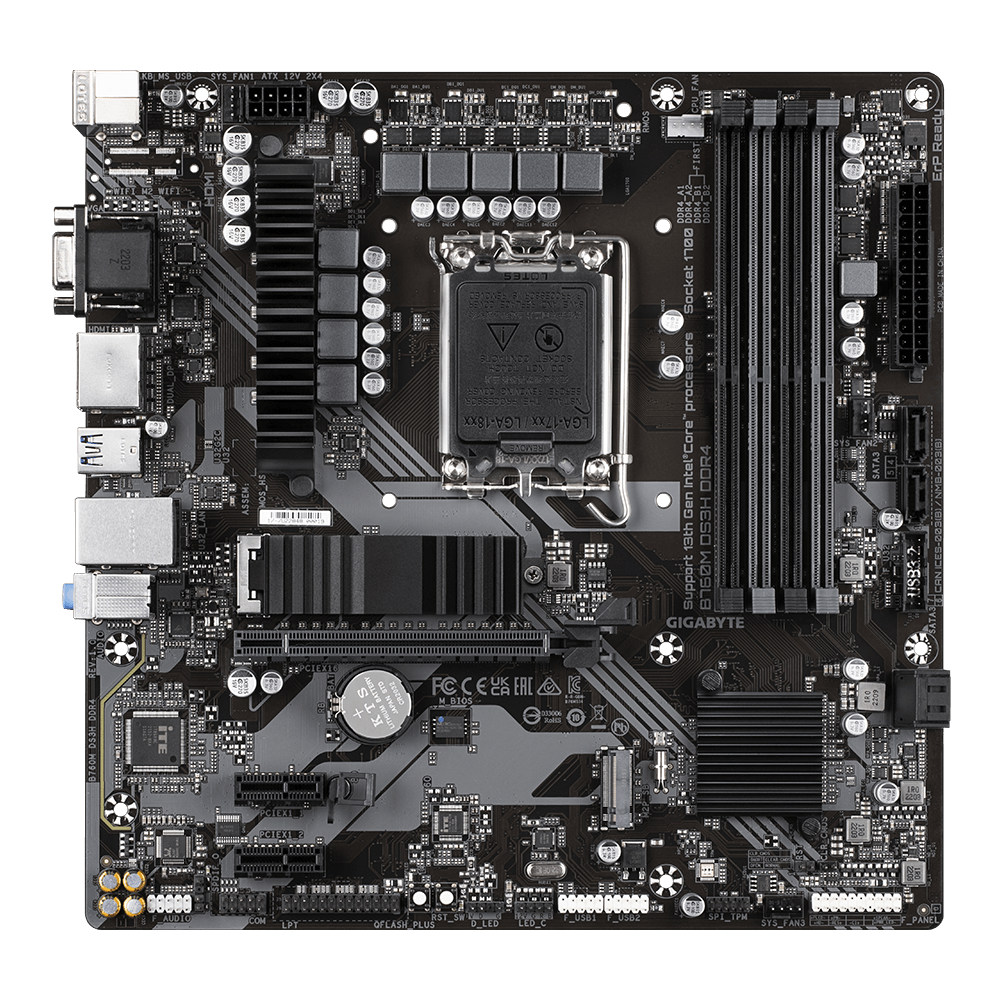

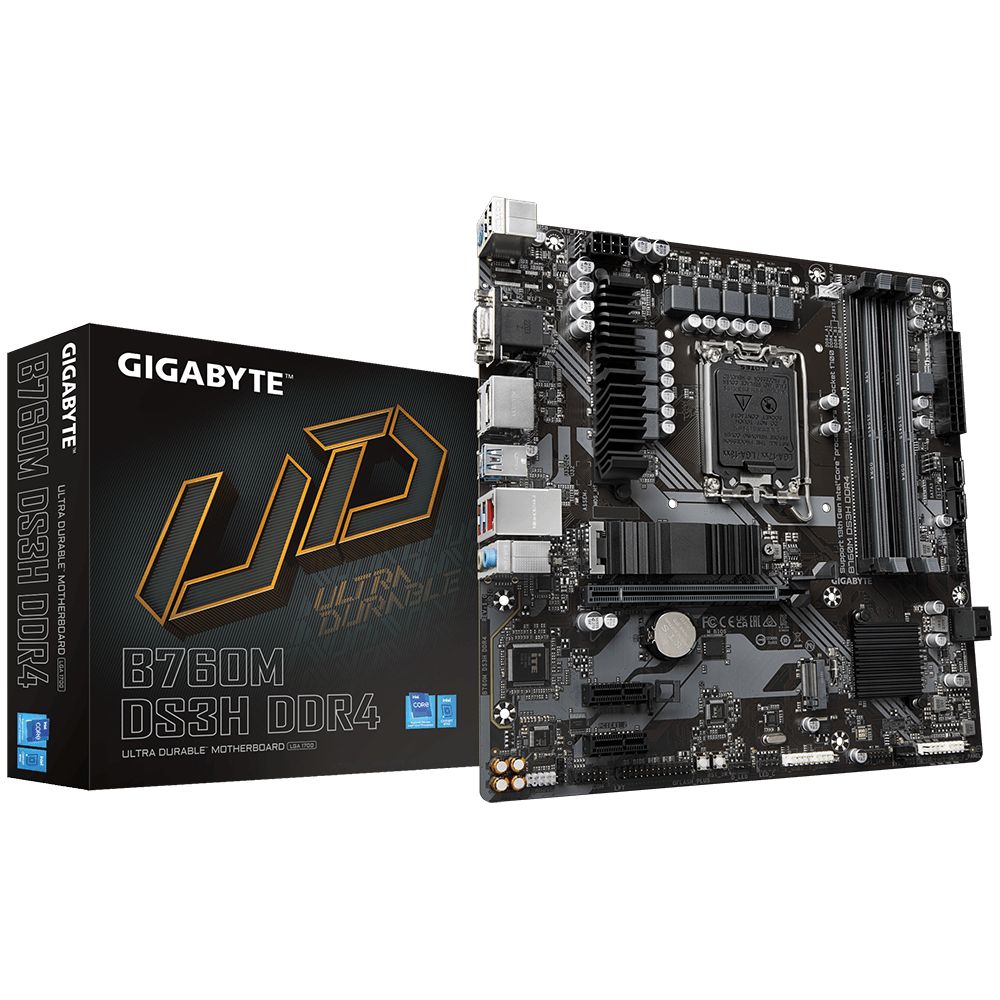

MB GB B760M DS3H DDR4 LGA1700 DDR4

Placa de baza Gigabyte B760M DS3H DDR4 LGA1700, 4x sloturi ram, max.128GB, frecventa maxima suportata 5333MHz, 1x D-Sub, 2x DisplayPort, 1x HDMI, 1x PCIe x16, 2x PCIe x1, 2x M.2, 4x conectori SATA 6GB/s, 1x LAN 2.5Gbps, microATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS memory size: 128 Mbit
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
Audio output channels: 7.1 channels
Component for: PC
Windows operating systems supported: Windows 10, Windows 11
Motherboard chipset family: Intel
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Motherboard form factor: micro ATX
Motherboard chipset: Intel B760 Express
Product colour: Brown
Power source type: ATX
Number of displays supported: 4
Maximum resolution: 4096 x 2304 pixels
HDCP: Yes
Parallel processing technology support: Not supported
DirectX version: 12.0
Front panel connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
Total number of SATA connectors: 4
Number of chassis fan connectors: 3
S/PDIF out connector: Yes
Serial port headers: 1
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Parallel connector: Yes
Country of origin: China
Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Supported memory clock speed (max): 5333 MHz
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel
Maximum internal memory: 128 GB
ECC сompatibility: Non-ECC
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-FI: No
Ethernet LAN: Yes
Bundled software: Norton Internet Security
Package height: 54 mm
Package width: 265 mm
Package depth: 265 mm
Package weight: 990 g
Maximum internal memory supported by processor: 128 GB
Processor socket: LGA 1700
Supported processor sockets: LGA 1700
Processor manufacturer: Intel
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0

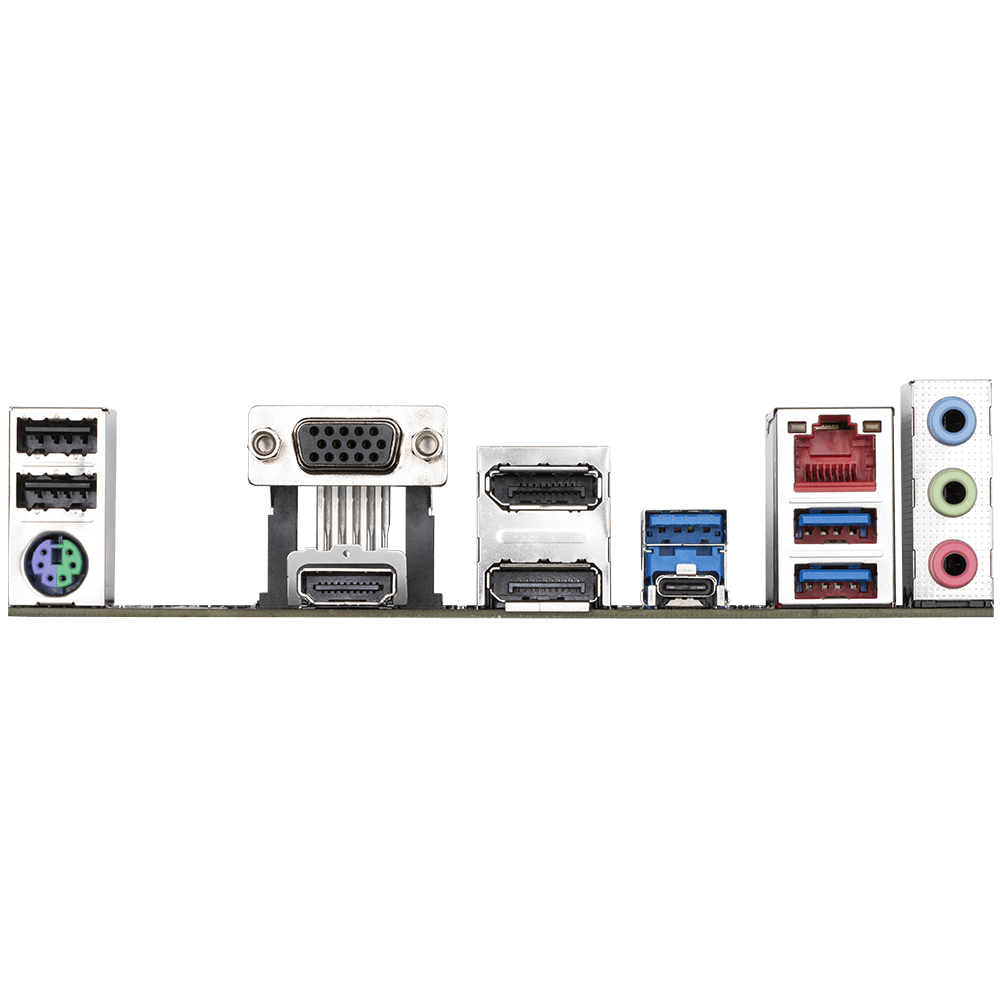

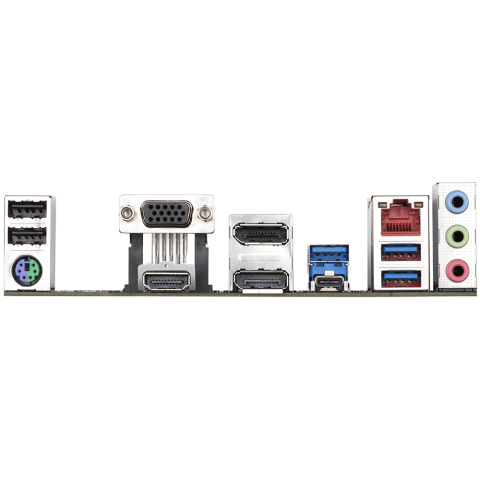

DisplayPorts quantity: 2
Line-in: Yes
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
VGA (D-Sub) ports quantity: 1
PS/2 ports quantity: 1
DVI-D ports quantity: 0
Headphone outputs: 1
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
RAID levels: 0, 1, 5, 10
Number of storage drives supported: 6
RAID support: Yes
Supported storage drive types: HDD & SSD
Height: 35 mm
Width: 244 mm
Depth: 24.4 mm
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
