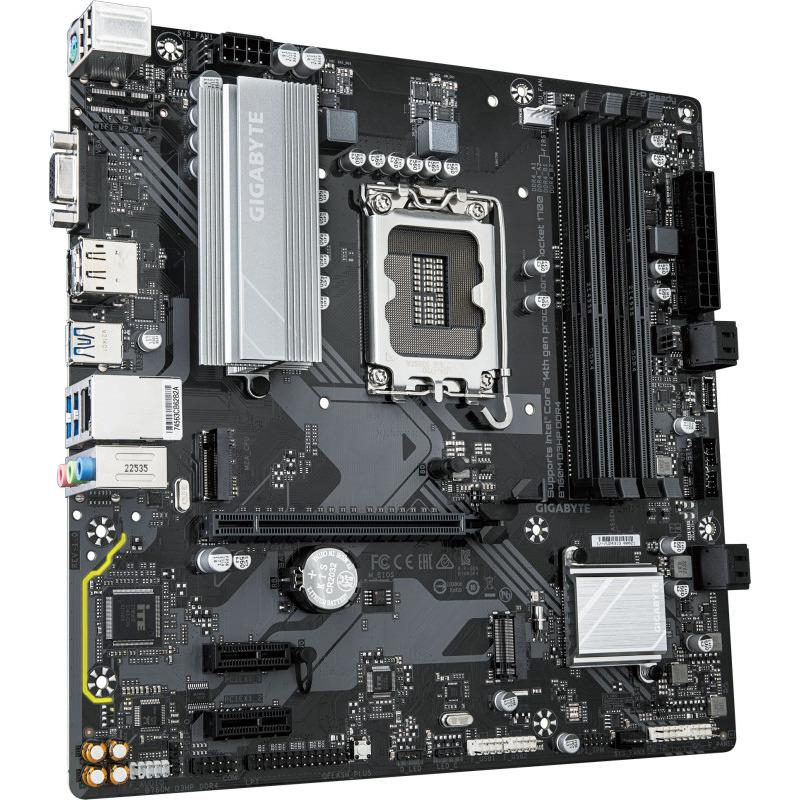

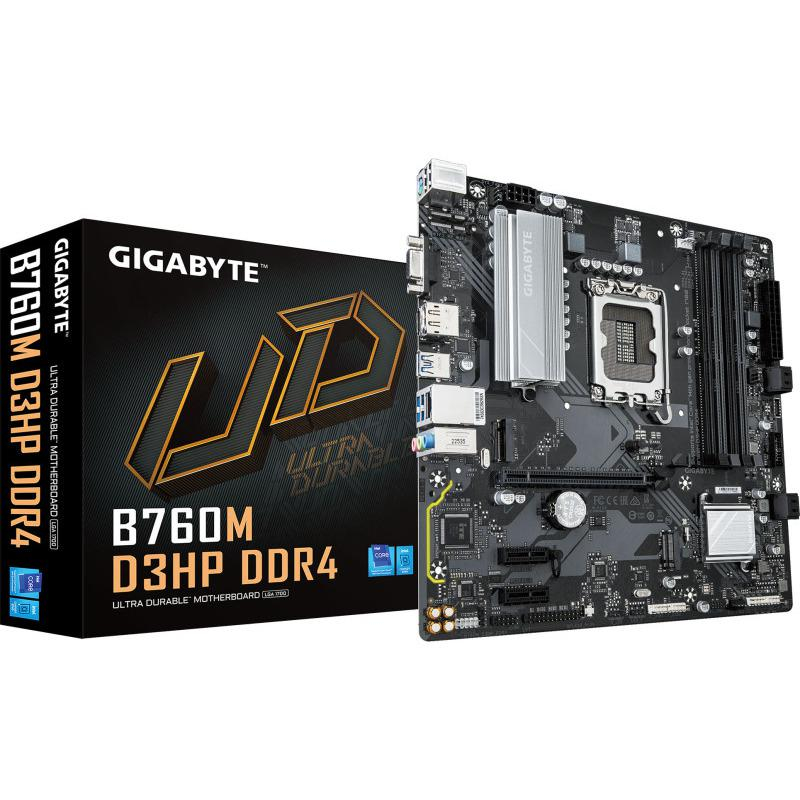

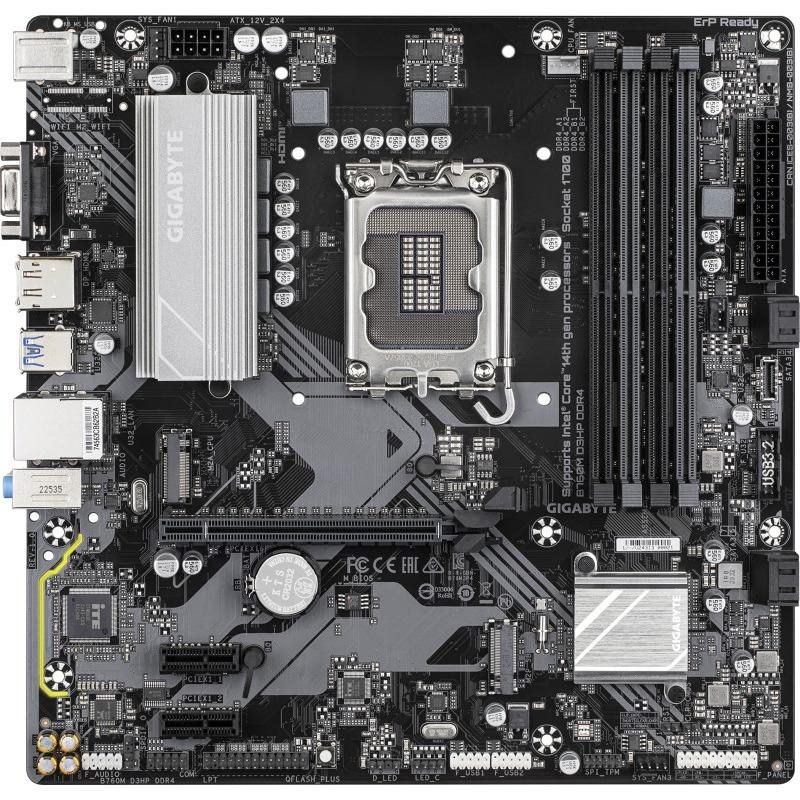

MB GB B760M D3HP DDR4 LGA1700

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

BIOS memory size: 128 Mbit

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

Product colour: Brown

PCI Express x4 slots: 1

Number of M.2 (M) slots: 2

PCI Express x1 slots: 1

PCI Express x16 (Gen 3.x) slots: 1

PCI Express x1 (Gen 3.x) slots: 1

PCI Express x16 slots: 1

PCI Express x16 (Gen 4.x) slots: 1

Audio output channels: 7.1 channels

Component for: PC

Windows operating systems supported: Windows 10, Windows 11

Motherboard chipset family: Intel

PC health monitoring: Fan, Temperature, Voltage, Water cooling

Motherboard form factor: micro ATX

Motherboard chipset: Intel B760 Express

Power source type: ATX

Maximum resolution: 4096 x 2304 pixels

DirectX version: 12.0

HDCP: Yes

Parallel processing technology support: Not supported

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Front panel connector: Yes

TPM connector: Yes

RGB LED pin header: Yes

Total number of SATA connectors: 4

12V power connector: Yes

Number of chassis fan connectors: 3

Serial port headers: 1

Audio connector: Yes

Power fan connector: Yes

Parallel connector: Yes

Number of Parallel ATA connectors: 1

S/PDIF out connector: Yes

Country of origin: China

Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB

Supported memory clock speed (max): 5333 MHz

ECC сompatibility: ECC & Non-ECC

Number of memory slots: 4

Memory slots type: DIMM

Unbuffered memory: Yes

Supported memory types: DDR4-SDRAM

Memory channels: Dual-channel

Maximum internal memory: 128 GB

Ethernet interface type: Gigabit Ethernet

Ethernet LAN: Yes

Wi-FI: No

Bundled software: Norton Internet Security

Package height: 54 mm

Package width: 265 mm

Package depth: 265 mm

Package weight: 990 g

DVI-D ports quantity:

HDMI version: 2.1

DisplayPort version: 1.4

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

USB 2.0 ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

DisplayPorts quantity: 2

Processor manufacturer: Intel

Maximum internal memory supported by processor: 128 GB

Processor socket: LGA 1700

Supported processor sockets: LGA 1700

Digital audio optical out: 3

Microphone in: Yes

Headphone outputs: 1

VGA (D-Sub) ports quantity: 1

PS/2 ports quantity: 1

USB connector type: USB Type-A

Line-in: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

Supported storage drive types: HDD & SSD

RAID support: Yes

Supported storage drive interfaces: M.2, SATA III

Number of HDDs supported: 4

RAID levels: 0, 1, 5, 10

Number of storage drives supported: 6

Height: 35 mm

Width: 244 mm

Depth: 24.4 mm

Onboard-CPU: No

PCI: 0
