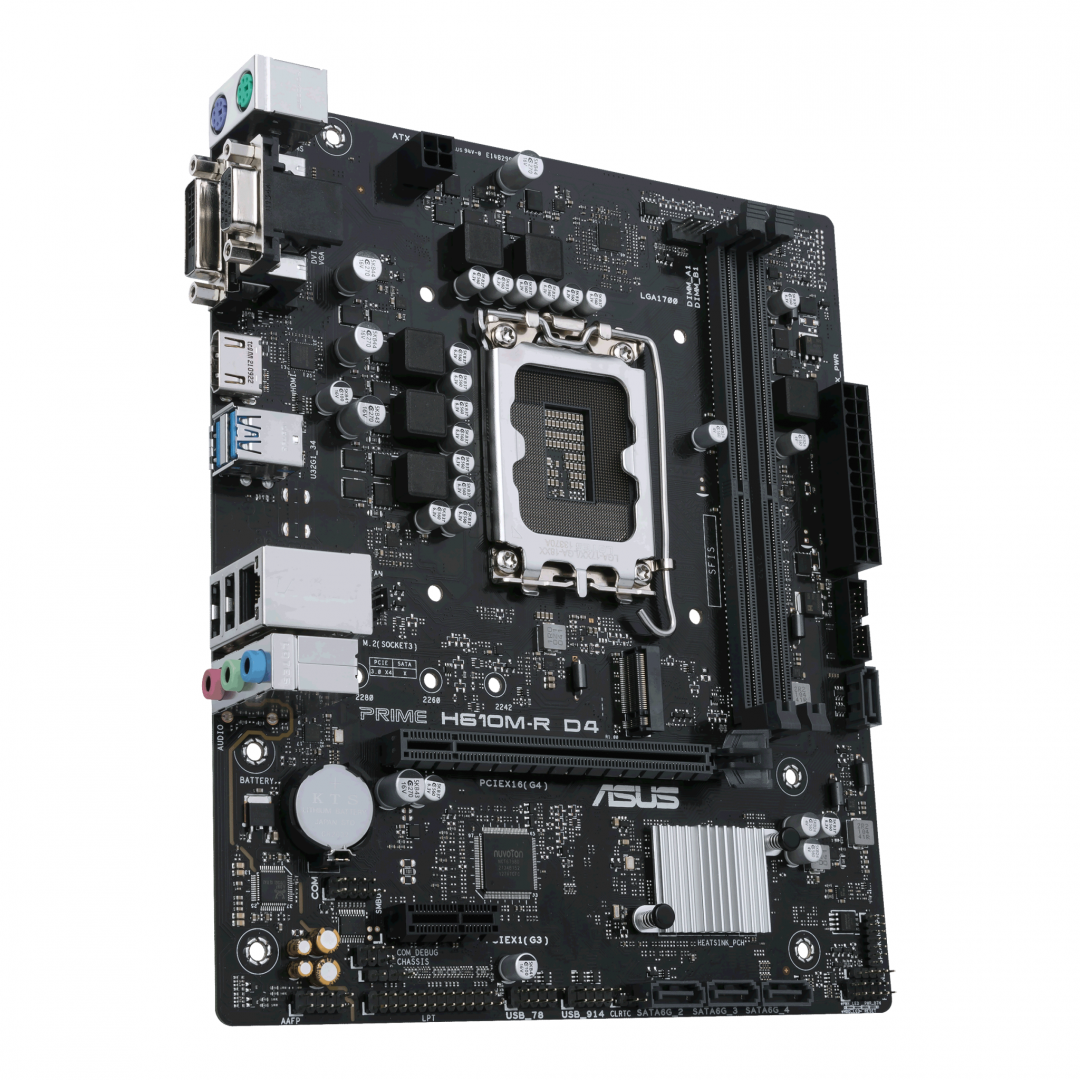

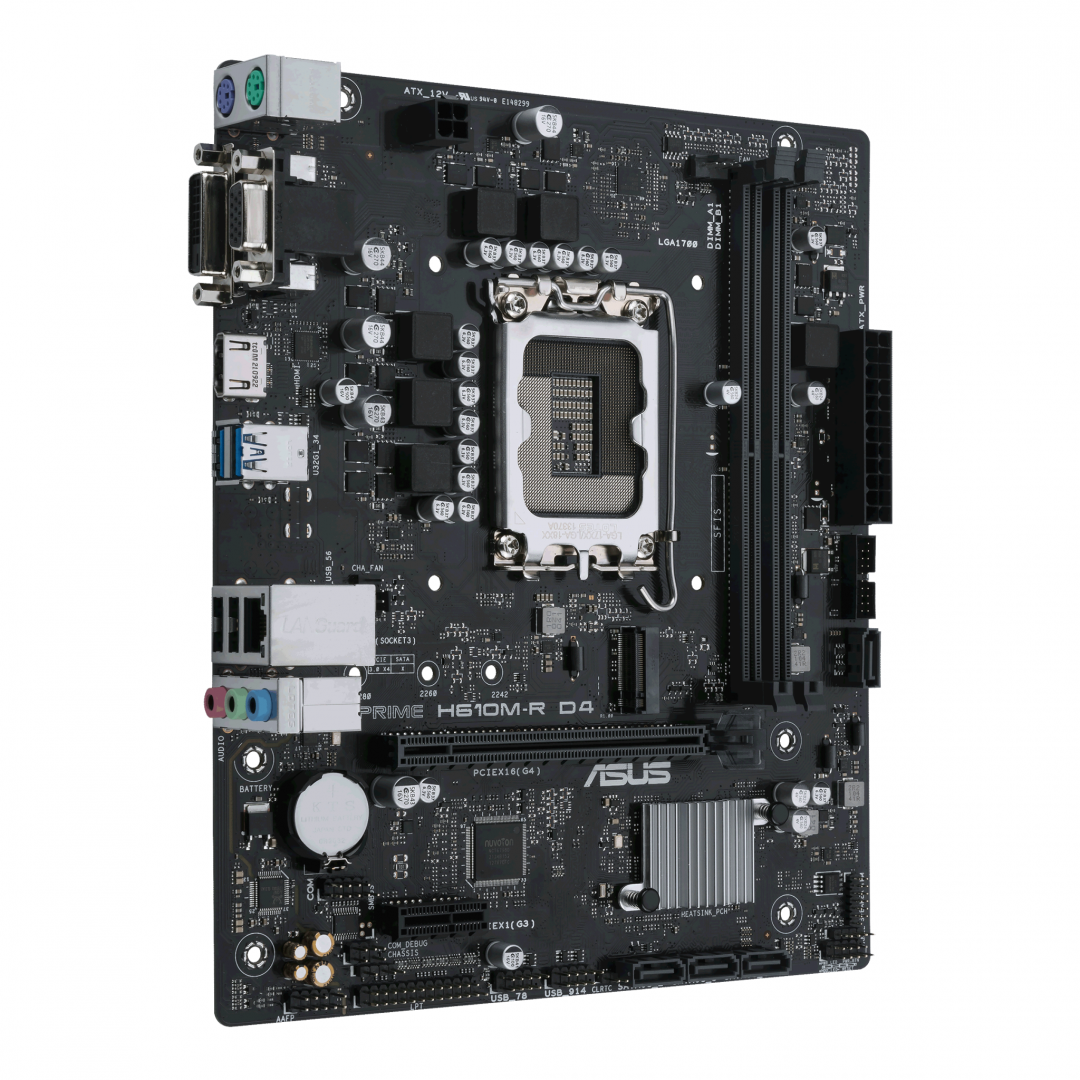

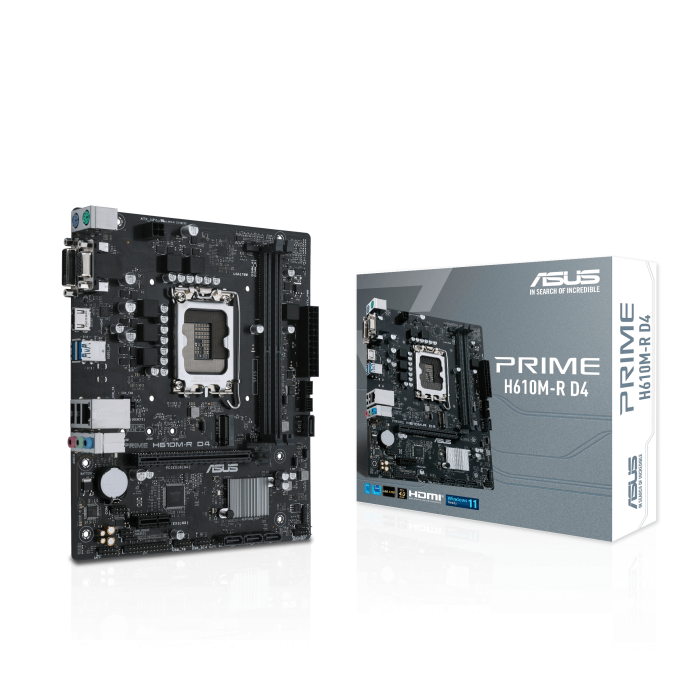

MB ASUS PRIME H610M-R D4 LGA 1700

Placa de baza Asus PRIME H610M-R D4 LGA 1700 Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot Realtek 1 Gb Ethernet, HDMI®,D-Sub, DVI USB 3.2 Gen 1 ports, SATA 6 Gbps COM header, LPT header, TPM header Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors Comprehensive cooling: PCH heatsink Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 5X Protection III: Multiple hardware safeguards for all-round protection
Garantie: 36 luni


Specificatii tehnice

BIOS type: UEFI AMI
Clear CMOS jumper: Yes
BIOS memory size: 128 Mbit
Number of M.2 (M) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Component for: PC
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Motherboard chipset: Intel H610
Maximum resolution: 3840 x 2160 pixels
TPM connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Chassis intrusion connector: Yes
12V power connector: Yes
Number of chassis fan connectors: 1
Audio connector: Yes
Number of COM connectors: 1
Harmonized System (HS) code: 84733020
ECC сompatibility: Non-ECC
Supported memory clock speeds: 2133,2400,2666,2800,2933,3000,3200 MHz
Memory slots type: DIMM
Unbuffered memory: Yes
Supported memory types: DDR4-SDRAM
Number of memory slots: 2
Wake-on-LAN ready: Yes
Ethernet interface type: Gigabit Ethernet
Weight: 842 g
Cables included: SATA
Drivers included: Yes
Processor socket: LGA 1700
Supported processor sockets: LGA 1700
VGA (D-Sub) ports quantity: 1
DVI-D ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI version: 2.1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB connector type: USB Type-A
Headphone outputs: 3
Microphone in: Yes
PS/2 ports quantity: 2
Number of storage drives supported: 5
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Width: 226 mm
Depth: 193 mm
MB-Socket: 1700
PCI-Ex1: 0
MB-Format: micro-ATX
RAM-Slots: 2
PCI: 0
Serial-or-Paralel: No/No
USB3: 4-8
PCI-Ex16: 1
Onboard-CPU: No
