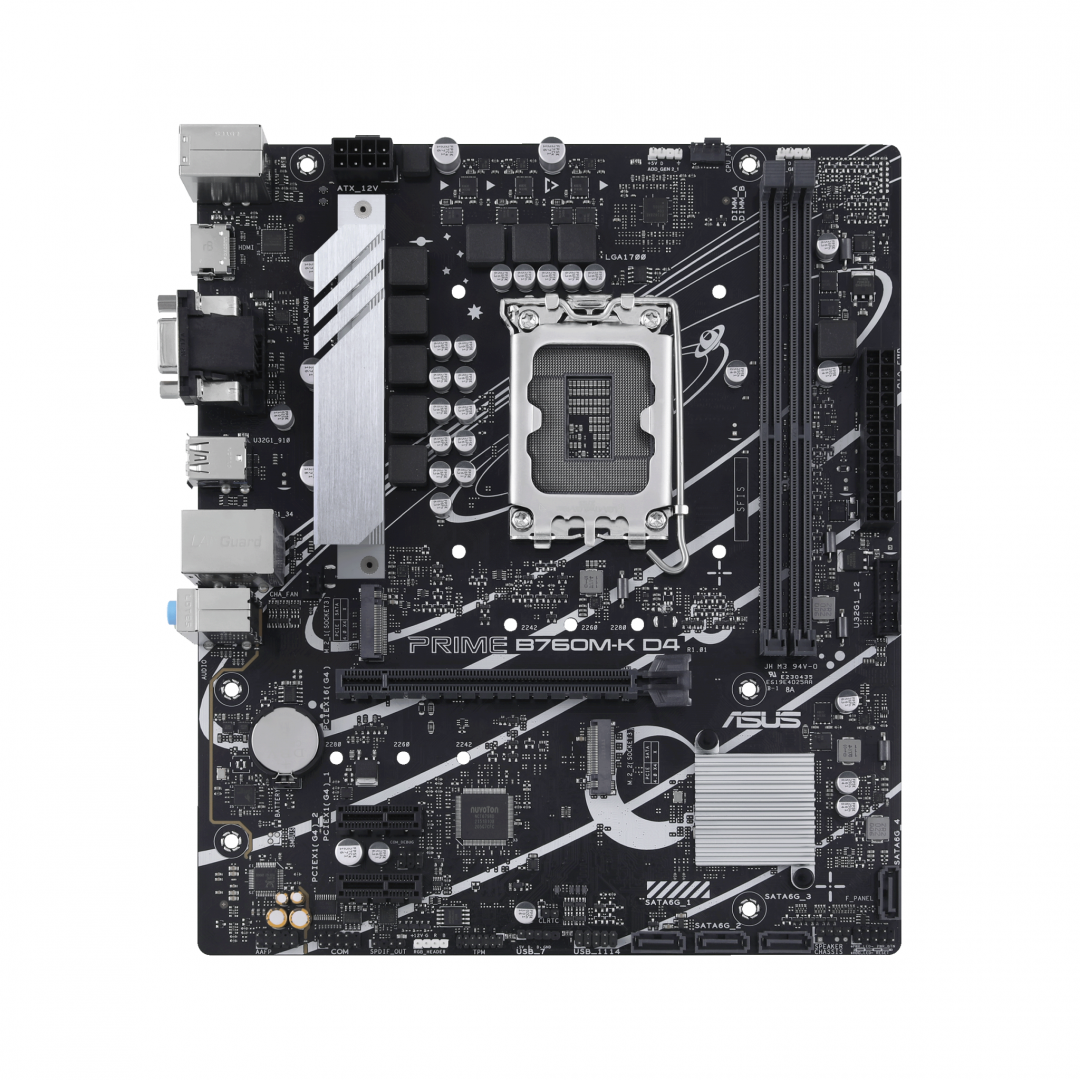

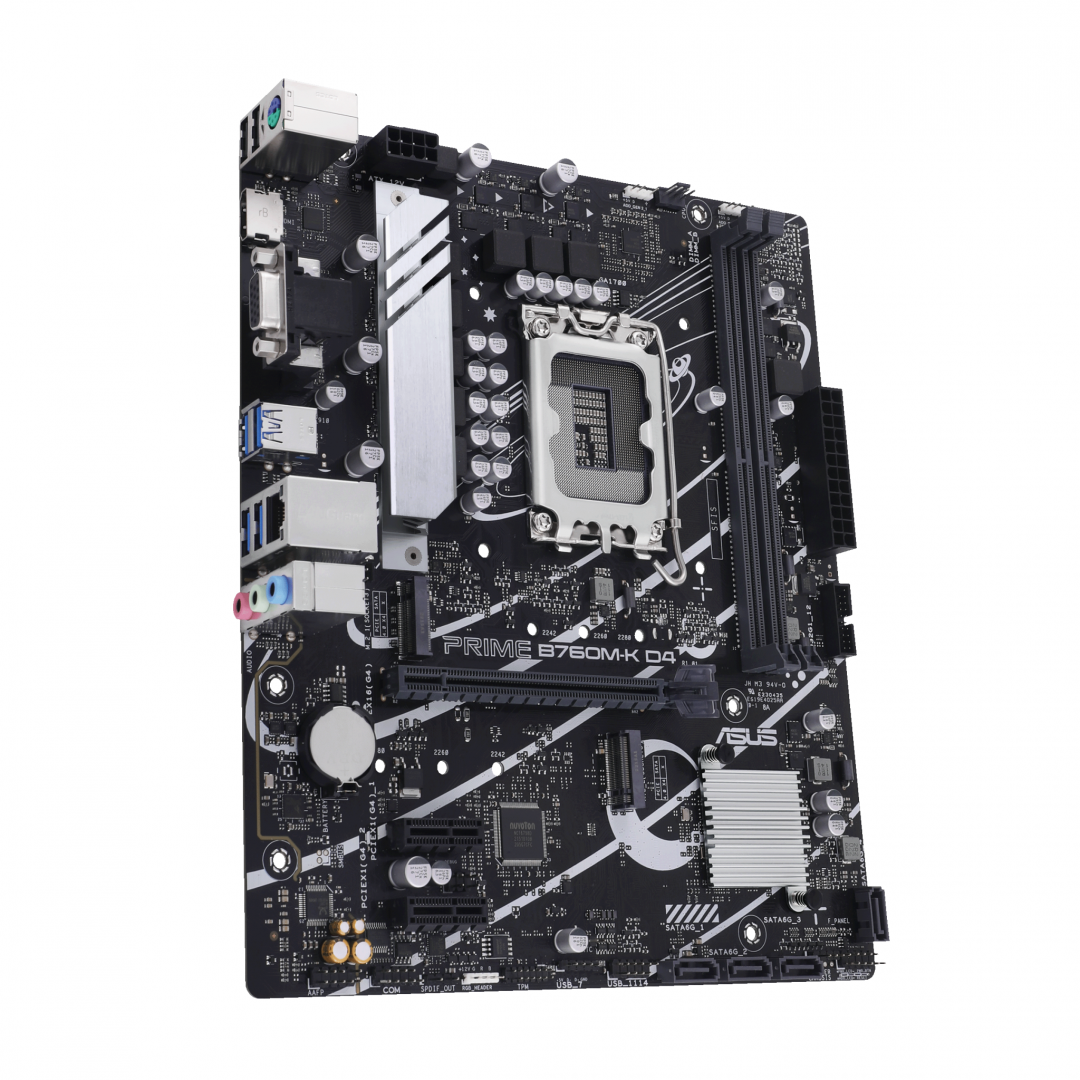

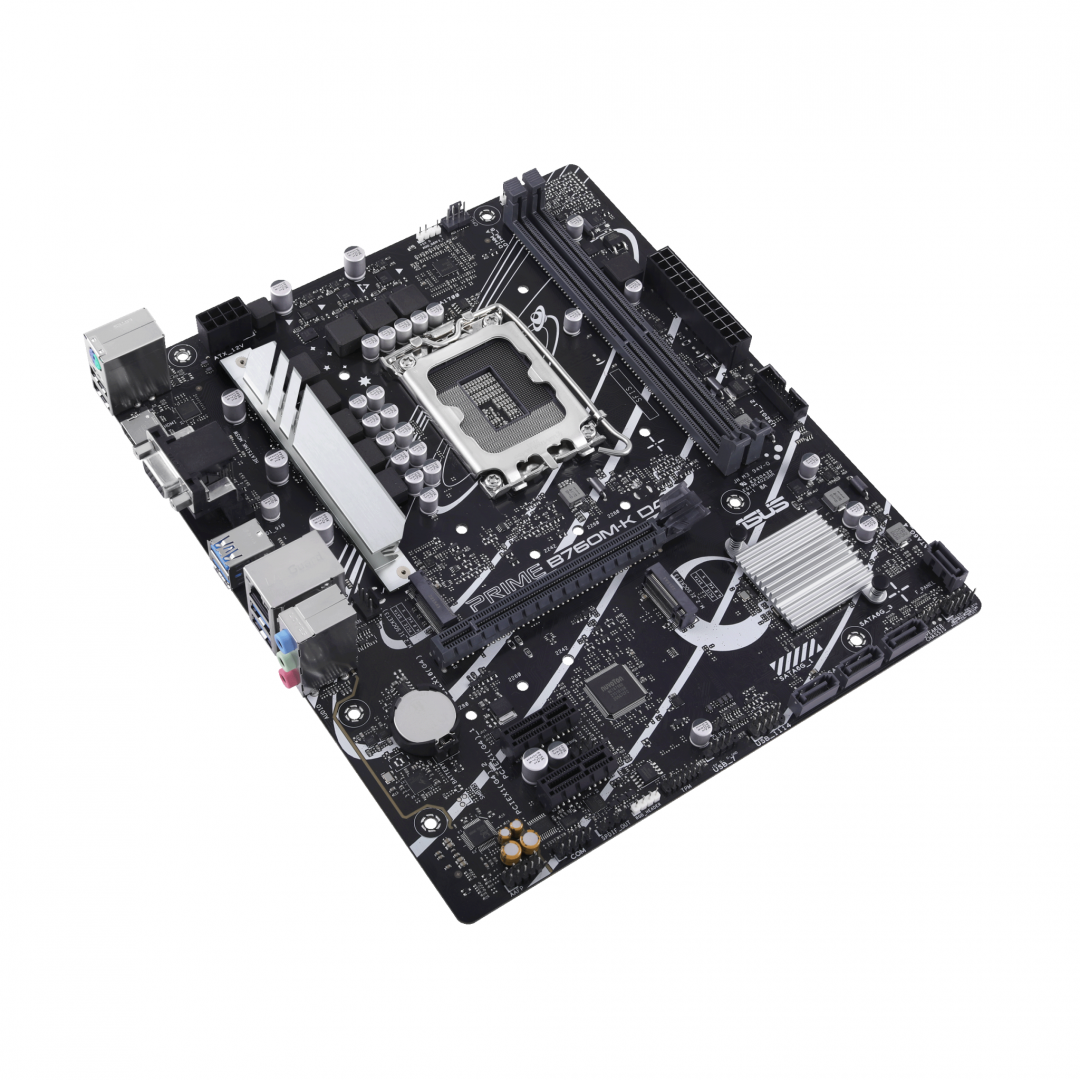

MB ASUS PRIME B760M-K DDR4 LGA1700

Placa de baza ASUS PRIME B760M-K DDR4 LGA1700 Model PRIME B760M-K D4 CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® B760 Chipset Memory 2 x DIMM, Max. 64GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000 (OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333 (OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. Graphics 1 x VGA port 1 x HDMI® port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI® 2.1. Expansion Slots Intel® 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel® B760 Chipset 2 x PCIe 4.0 x1 slots Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Ethernet 1 x Realtek 2.5Gb Ethernet
Garantie: 36 luni


Specificatii tehnice

BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
PCI Express x1 (Gen 4.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
Audio output channels: 7.1 channels
Component for: PC
Motherboard chipset: Intel B760
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10 x64, Windows 11
Motherboard form factor: micro ATX
Parallel processing technology support: Not supported
12V power connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
Number of chassis fan connectors: 1
S/PDIF out connector: Yes
Number of COM connectors: 1
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Memory channels: Dual-channel
Number of memory slots: 2
Maximum internal memory: 64 GB
Supported memory clock speed (max): 5333 MHz
ECC сompatibility: Non-ECC
Supported memory types: DDR4-SDRAM
Memory slots type: DIMM
Unbuffered memory: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Wake-on-LAN ready: Yes
Wi-FI: No
Weight: 5.28 g

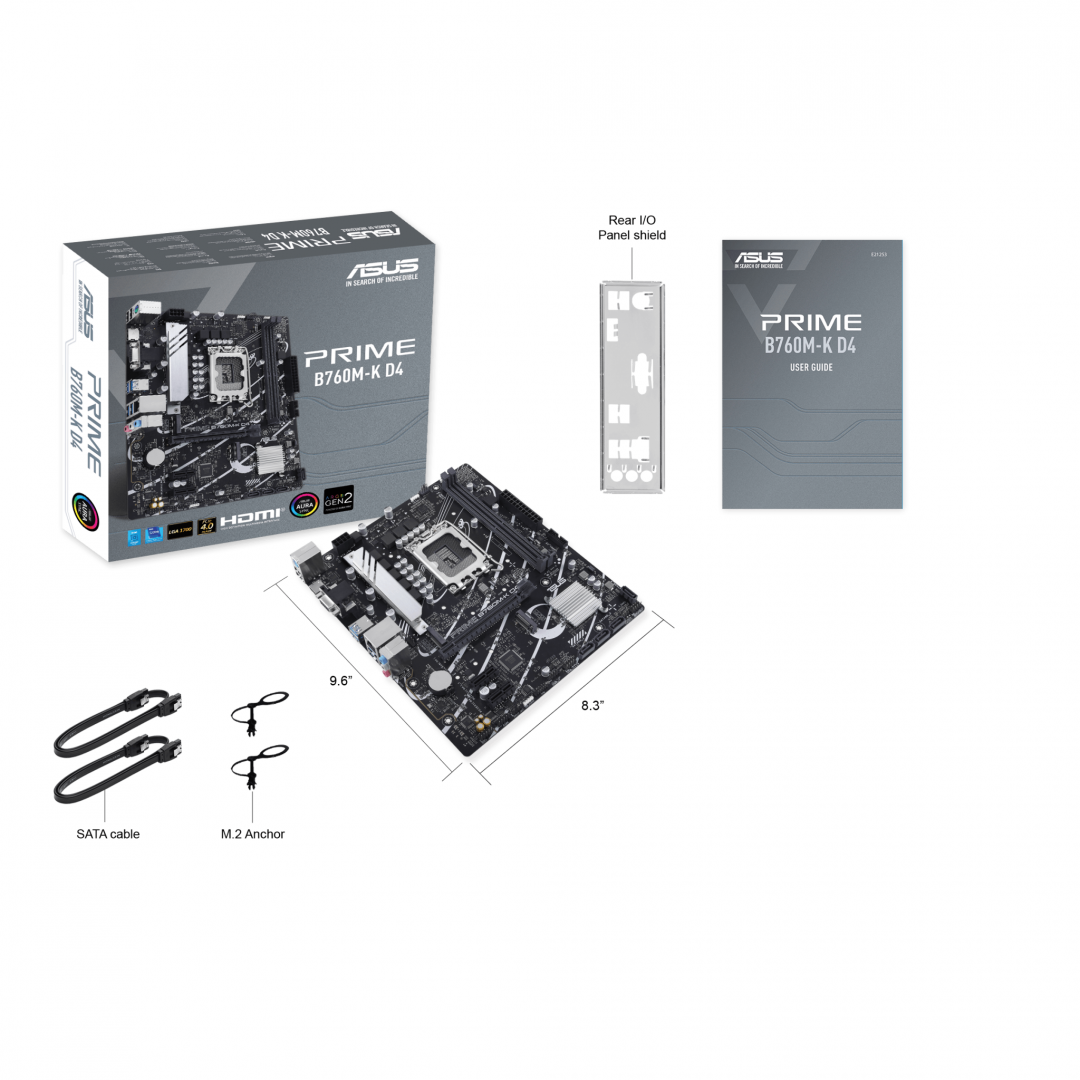

Cables included: SATA
Package width: 270 mm
Package depth: 51.5 mm
Package height: 263 mm
Package weight: 926.3 g
Processor socket: LGA 1700
Supported processor sockets: LGA 1700
Processor manufacturer: Intel
VGA (D-Sub) ports quantity: 1
PS/2 ports quantity: 1
USB connector type: USB Type-A
HDMI ports quantity: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
DVI-D ports quantity: 0
Microphone in: Yes
Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 6
Number of HDDs supported: 4
RAID levels: 0, 1, 5, 10
Supported storage drive types: HDD & SSD
RAID support: Yes
Width: 244 mm
Height: 36 mm
Depth: 21.1 mm
MB-Socket: 1700
MB-Format: micro-ATX
PCI-Ex1: 2
RAM-Slots: 2
PCI: 0
Serial-or-Paralel: No/No
USB3: 4-8
PCI-Ex16: 1
Onboard-CPU: No
