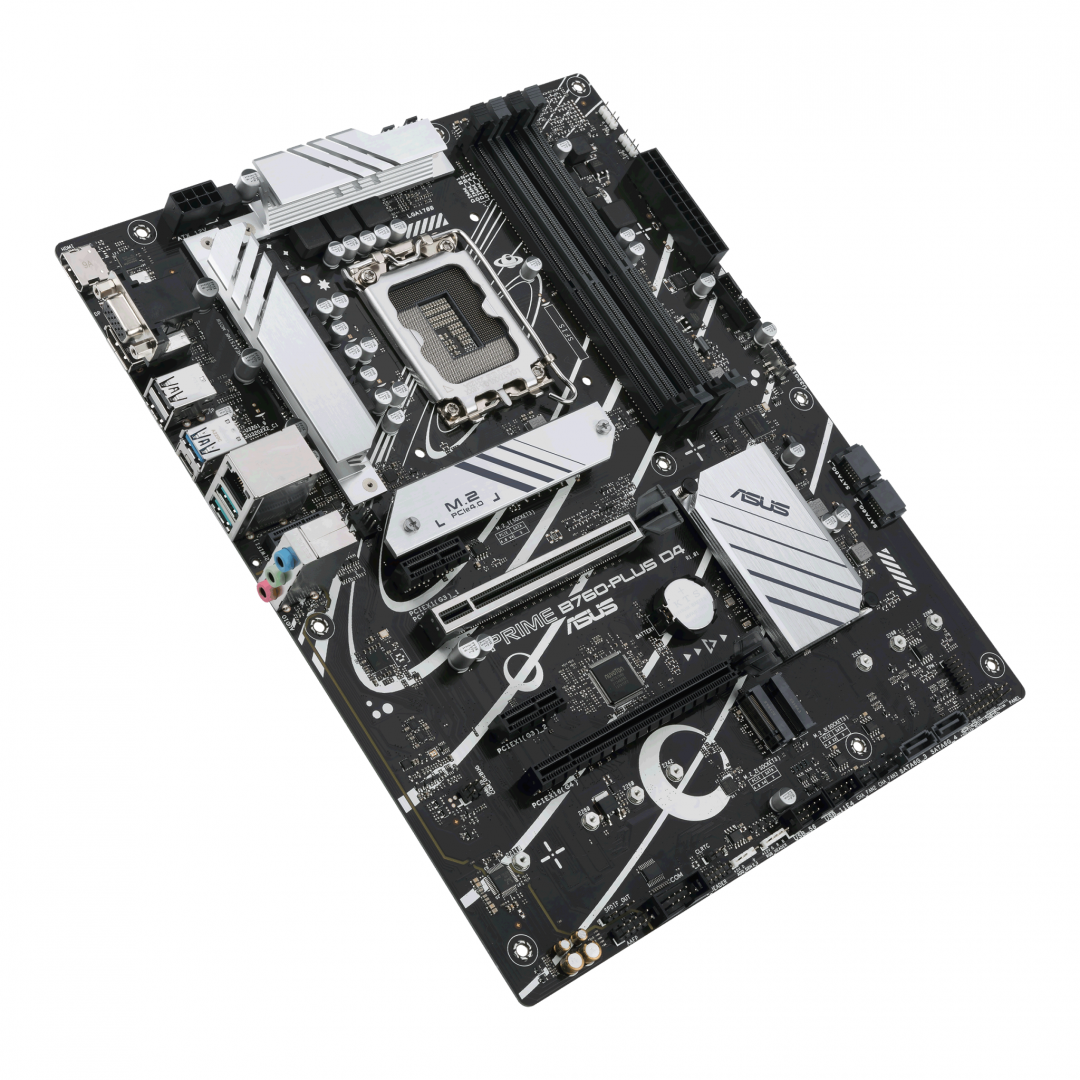

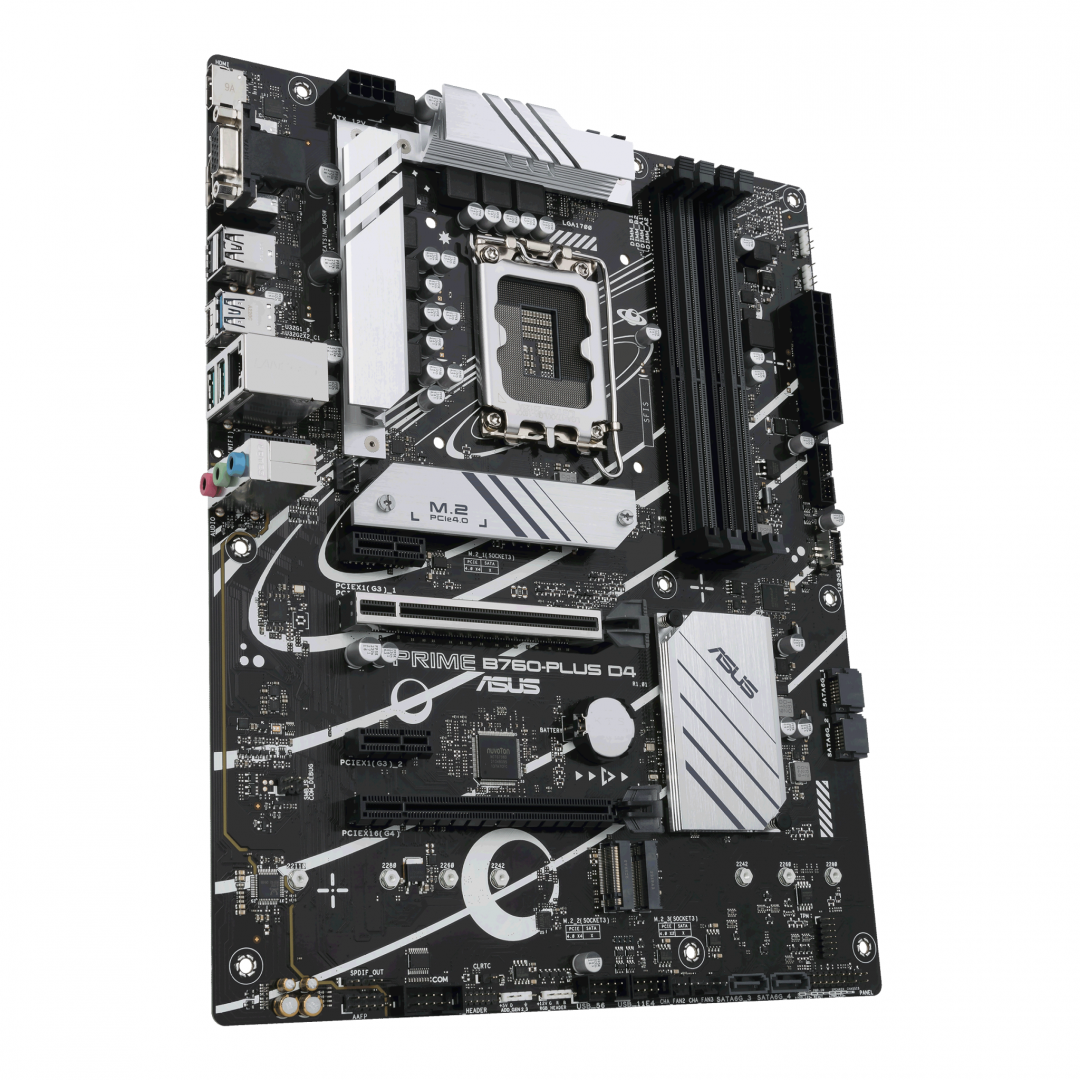

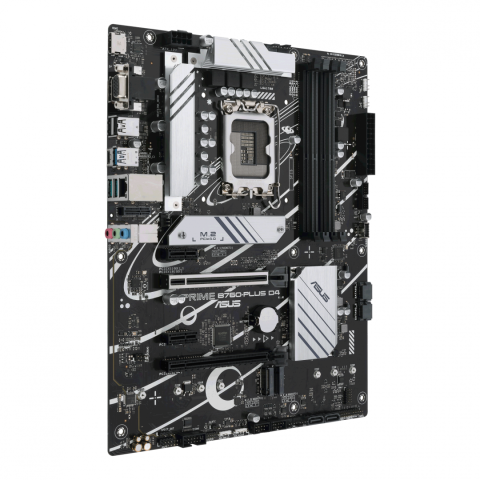

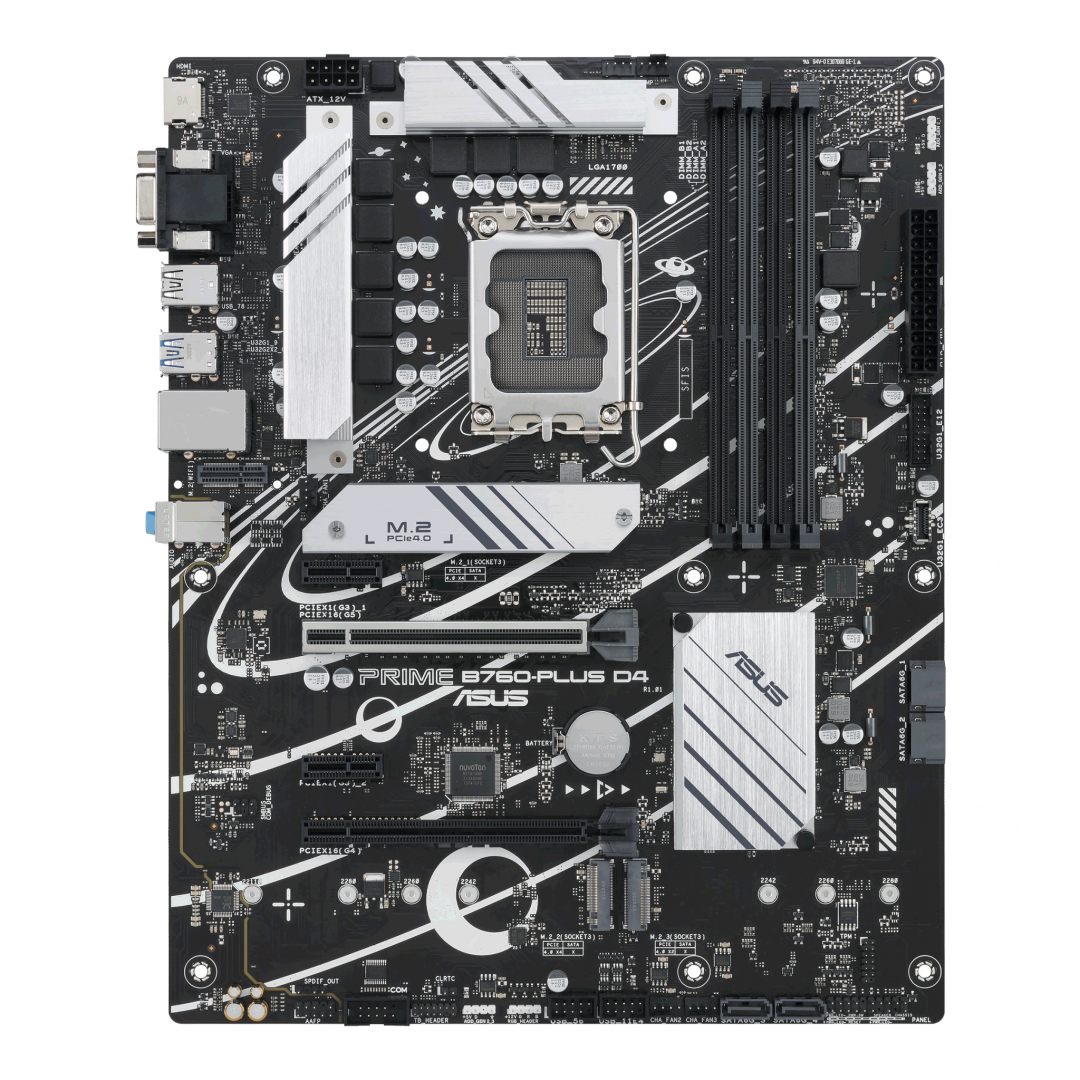

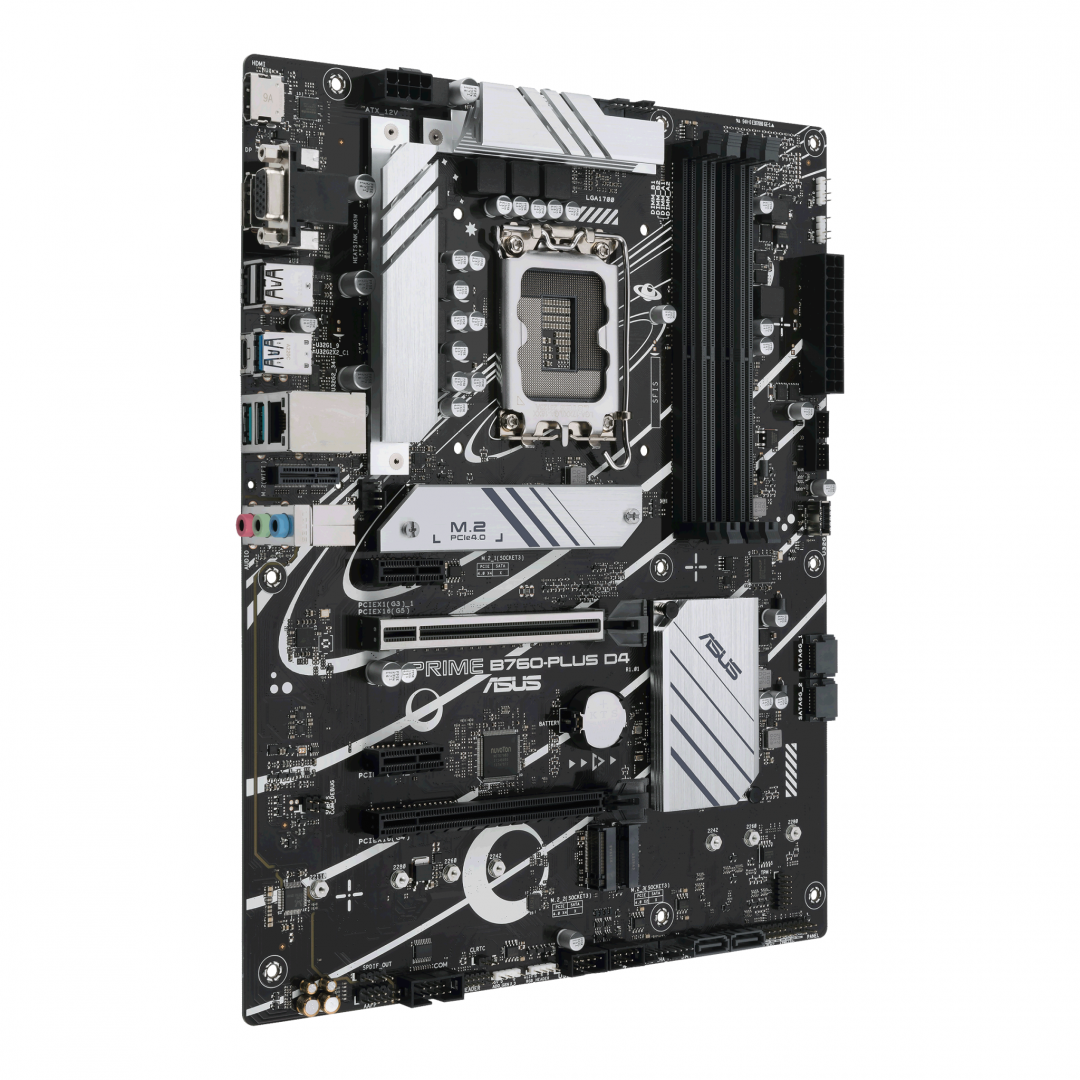

MB ASUS PRIME B760-PLUS D4 LGA 1700

Placa de baza ASUS PRIME B760-PLUS D4 LGA 1700 Model PRIME B760-PLUS D4 CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® B760 Chipset Memory 4 x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400 (OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333 (OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. Graphics 1 x DisplayPort** 1 x VGA port 1 x HDMI® port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI® 2.1. Expansion Slots Intel® 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Ethernet 1 x Realtek 2.5Gb Ethernet
Garantie: 36 luni


Specificatii tehnice

BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
Number of M.2 (M) slots: 3
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Audio output channels: 7.1 channels
Cooling type: Passive
Component for: PC
Windows operating systems supported: Windows 10, Windows 11
Motherboard form factor: ATX
Motherboard chipset family: Intel
Power source type: ATX
Motherboard chipset: Intel B760
Parallel processing technology support: Not supported
Front panel connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Thunderbolt headers: 1
Peripheral (Molex) power connectors (4-pin): 1
12V power connector: Yes
S/PDIF out connector: Yes
Number of COM connectors: 1
Number of chassis fan connectors: 3
USB 2.0 connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel
Maximum internal memory: 128 GB
Supported memory clock speeds: 5066,5000,4800,4600,4400,4266,4000,3733,3600,3466,3400,3333,3200,3000,2933,2800,2666,2400,2133 MHz
Supported memory clock speed (max): 5066 MHz
ECC сompatibility: Non-ECC
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Wi-FI: No
Number of M.2 (E) slots: 1
User guide: Yes
Cables included: SATA
Package height: 53 mm
Package weight: 11.6 kg
Package width: 328 mm
Package depth: 266 mm
Processor socket: LGA 1700
Maximum number of SMP processors: 1
Supported processor sockets: LGA 1700
Processor manufacturer: Intel

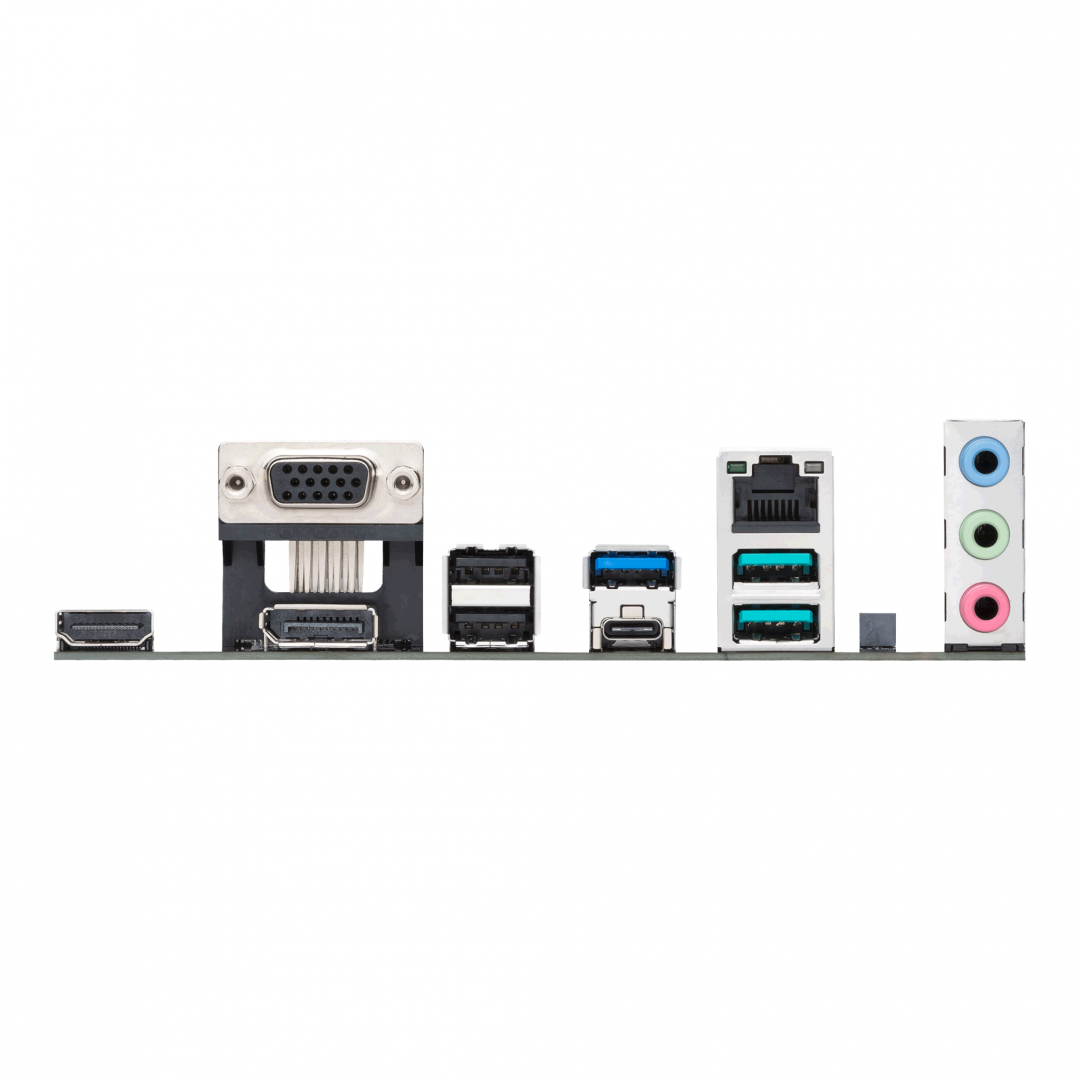

HDMI ports quantity: 1
HDMI version: 2.1
USB 2.0 ports quantity: 2
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
DisplayPort version: 1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
VGA (D-Sub) ports quantity: 1
DisplayPorts quantity: 1
Line-in: Yes
DVI-D ports quantity: 0
Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 1
Number of HDDs supported: 4
Number of storage drives supported: 7
RAID levels: 0, 1, 5, 10
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
Width: 30.5 mm
Depth: 24.4 mm
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
