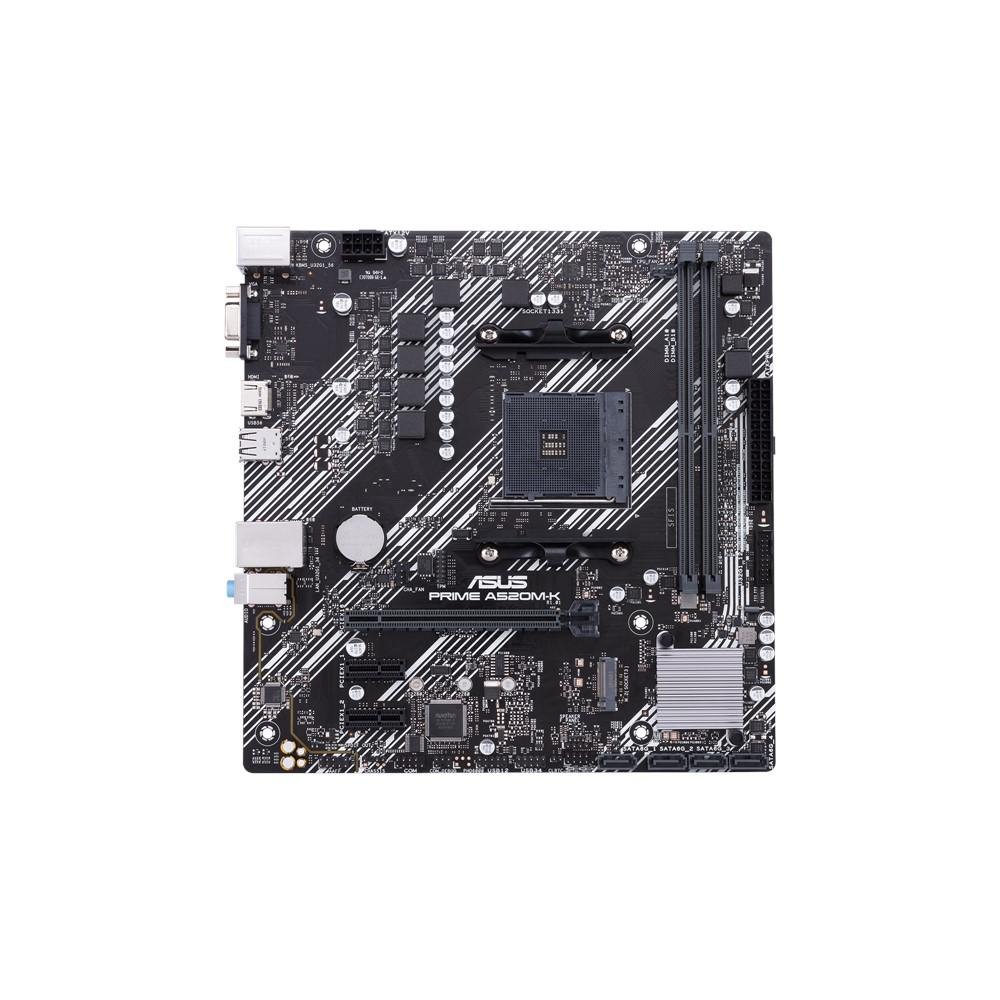

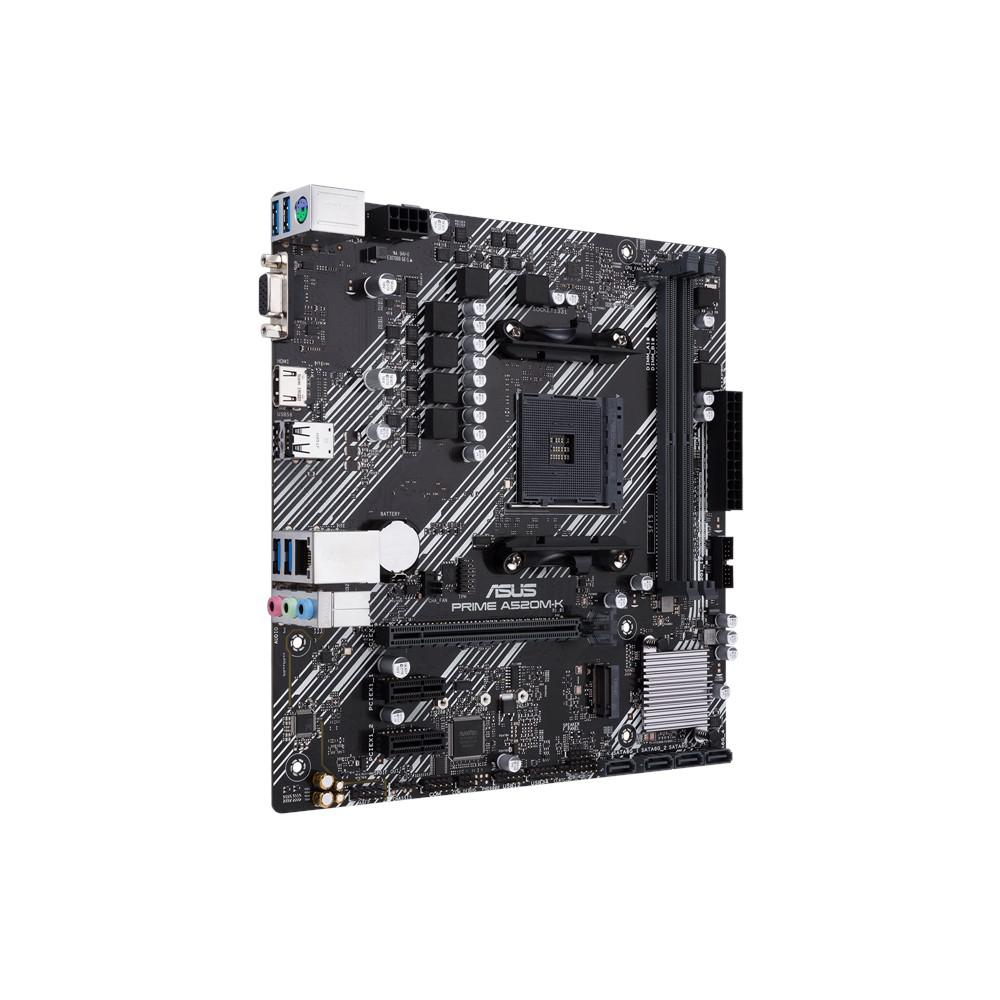

MB ASUS PRIME A520M-K AM4

Placa de baza Asus PRIME A520M-K Socket LGA AM4 CPU Build in AMD AM4 Socket Processors * * Refer to www.asus.com for CPU support list Chipset AMD A520 Memory 2 x DIMM, Max. 64GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733 (O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor. Graphic 1 x D-Sub 1 x HDMI 2.1(4K@60HZ) Expansion Slots 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 Storage Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support AMD A520 Chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 LAN Realtek RTL8111H 1Gb Ethernet ASUS LANGuard Audio Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC * - Supports : Jack-detection, Multi-streaming, Front Panel Jack- retasking, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers https://www.asus.com/Motherboards/PRIME-A520M-K/specifications/
Garantie: 36 luni


Specificatii tehnice

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1
Windows operating systems supported: Windows 10 x64, Windows 11
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Motherboard chipset: AMD A520
Audio Chip: Realtek ALC887 / Realtek ALC897
Parallel processing technology support: Not supported
Number of chassis fan connectors: 1
TPM connector: Yes
Number of EATX power connectors: 2
12V power connector: Yes
S/PDIF out connector: Yes
Number of COM connectors: 1
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Harmonized System (HS) code: 84733020
Memory slots type: DIMM
Unbuffered memory: Yes
Number of memory slots: 2
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel
Maximum internal memory: 64 GB
ECC сompatibility: ECC
Ethernet LAN: Yes
Wake-on-LAN ready: Yes
Wi-FI: No
LAN controller: Realtek RTL8111H
Ethernet interface type: Gigabit Ethernet

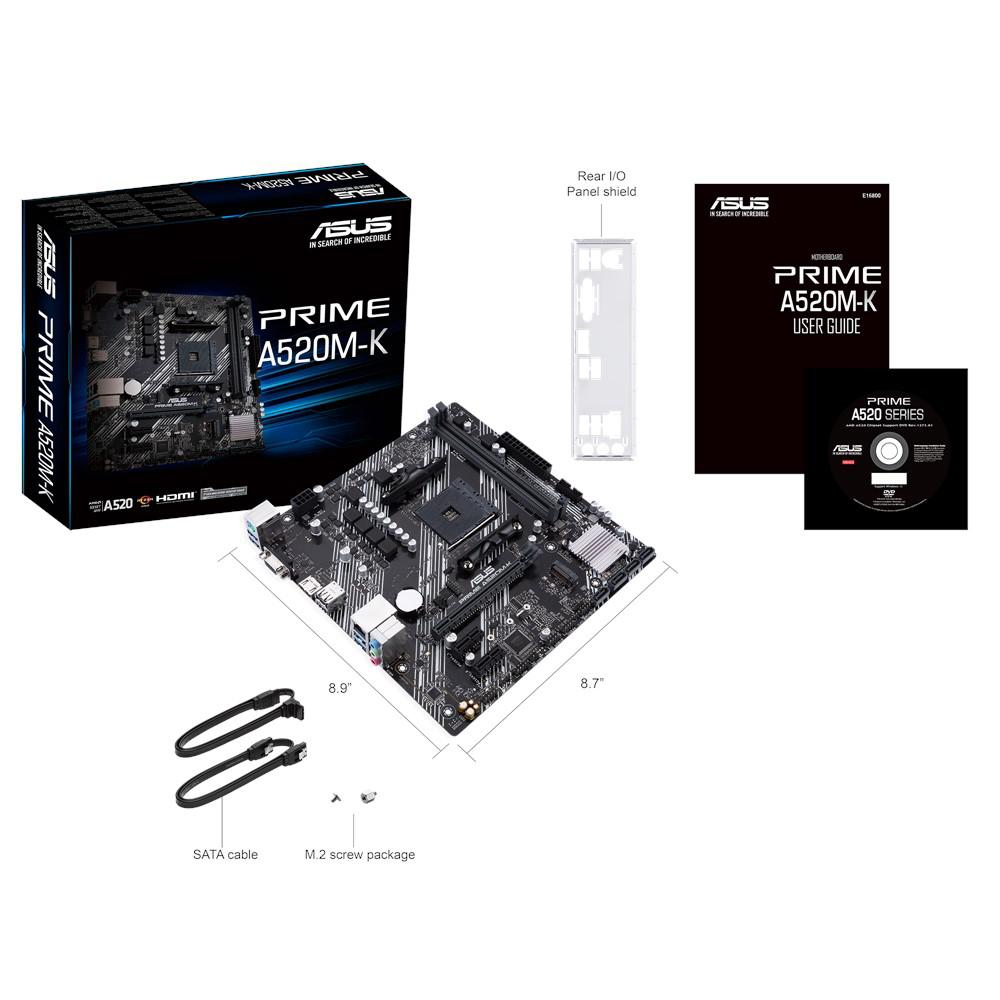

Cables included: SATA
Supported processor sockets: Socket AM4
Compatible processor series: AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7
Processor socket: Socket AM4
Processor manufacturer: AMD

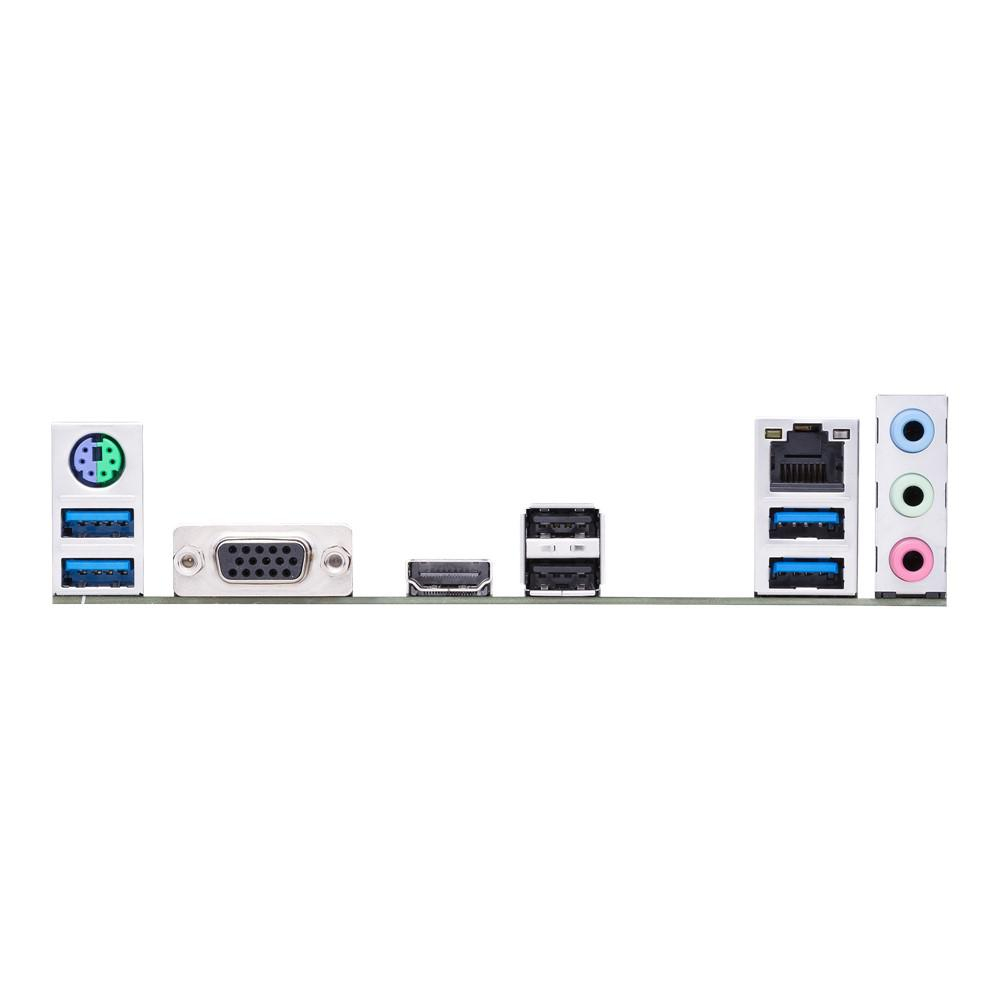

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
HDMI version: 2.1
USB connector type: USB Type-A
DVI-D ports quantity: 0
VGA (D-Sub) ports quantity: 1
Microphone in: Yes
Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 3
PS/2 ports quantity: 1
RAID levels: 0, 1, 10
Number of storage drives supported: 5
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
Supported storage drive types: HDD & SSD
Width: 226 mm
Depth: 221 mm
MB-Format: micro-ATX
MB-Socket: AM4
RAM-Slots: 2
PCI: 0
Serial-or-Paralel: No/No
USB3: 4-8
CPU încorporat: No
PCI-Ex1: 1
PCI-Ex16: 1
