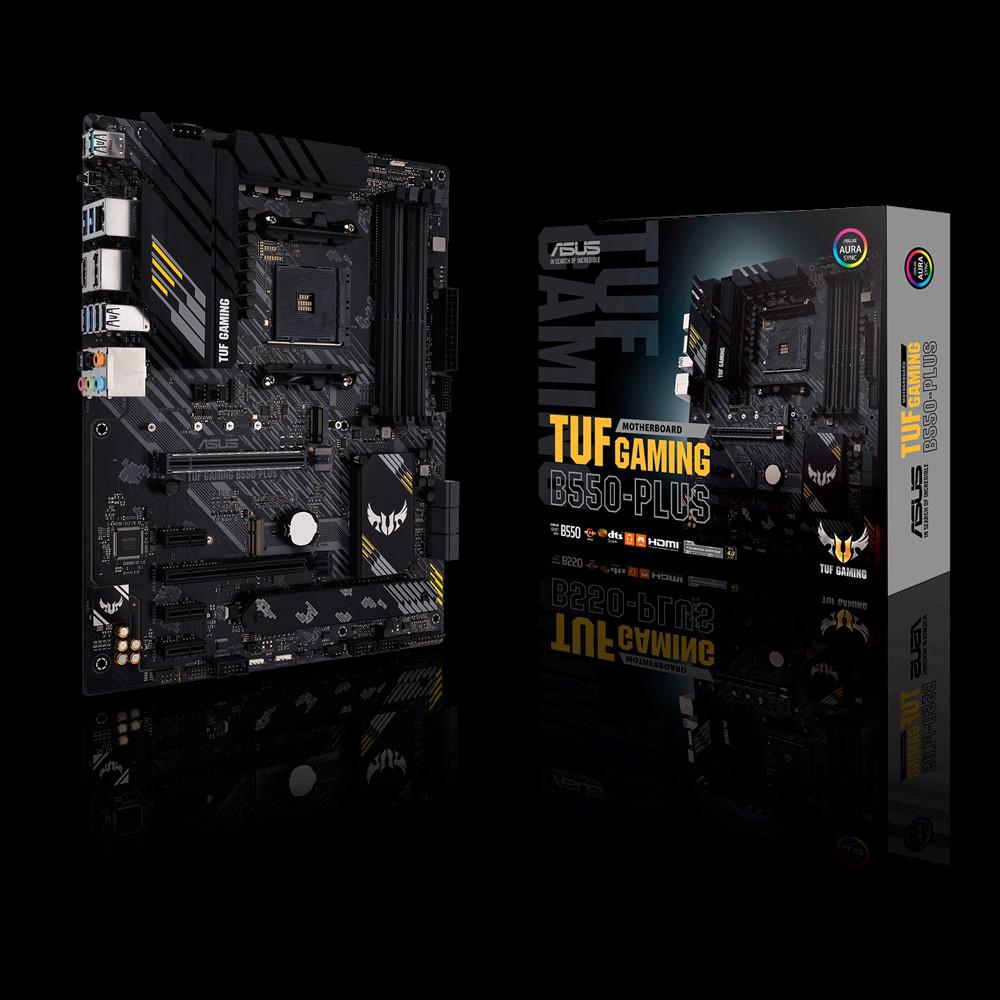

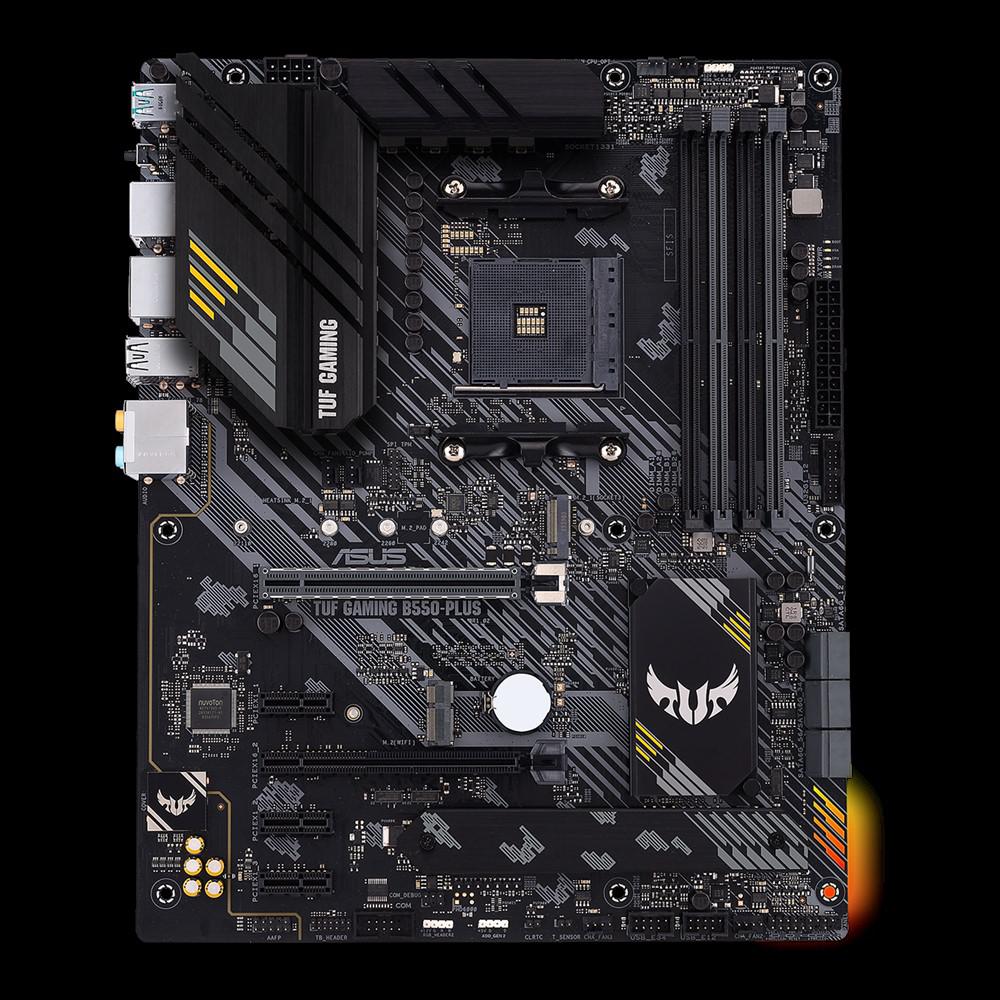

MB ASUS AMD TUF GAMING B550-PLUS

Placa de baza Asus AM4 TUF GAMING B550-PLUS Socket LGA AM4
Garantie: 36 luni


Specificatii tehnice

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
PCI Express x1 (Gen 3.x) slots: 3
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
Audio output channels: 7.1 channels
Motherboard chipset: AMD B550
Windows operating systems supported: Windows 10 x64
Motherboard chipset family: AMD
Motherboard form factor: ATX
Component for: Nettop
Audio Chip: Realtek ALC S1200A
Parallel processing technology support: 2-Way CrossFireX
Number of SATA III connectors: 6
Number of chassis fan connectors: 3
Number of SATA connectors: 4
TPM connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Harmonized System (HS) code: 84733020
Number of memory slots: 4
Memory slots type: DIMM
Supported memory clock speeds: 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz
ECC сompatibility: ECC
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel
Maximum internal memory: 128 GB
Ethernet LAN: Yes
Wi-FI: No
LAN controller: Realtek RTL8125B
Ethernet interface type: 2.5 Gigabit Ethernet
Weight: 945 g

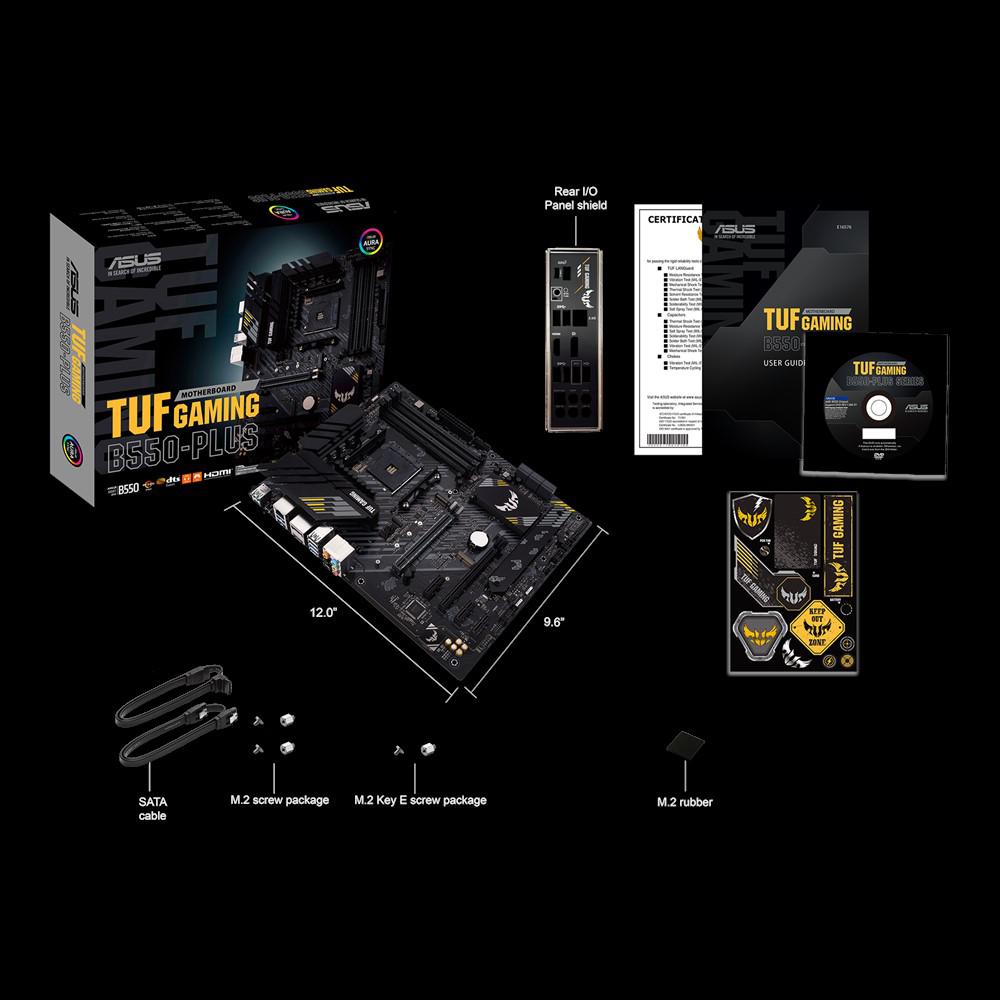

Cables included: SATA
Drivers included: Yes
Compatible processor series: AMD Ryzen 3000 Series
Processor socket: Socket AM4
Processor manufacturer: AMD
Maximum number of SMP processors: 1
Supported processor sockets: Socket AM4
Firewire (IEEE 1394) ports: 0

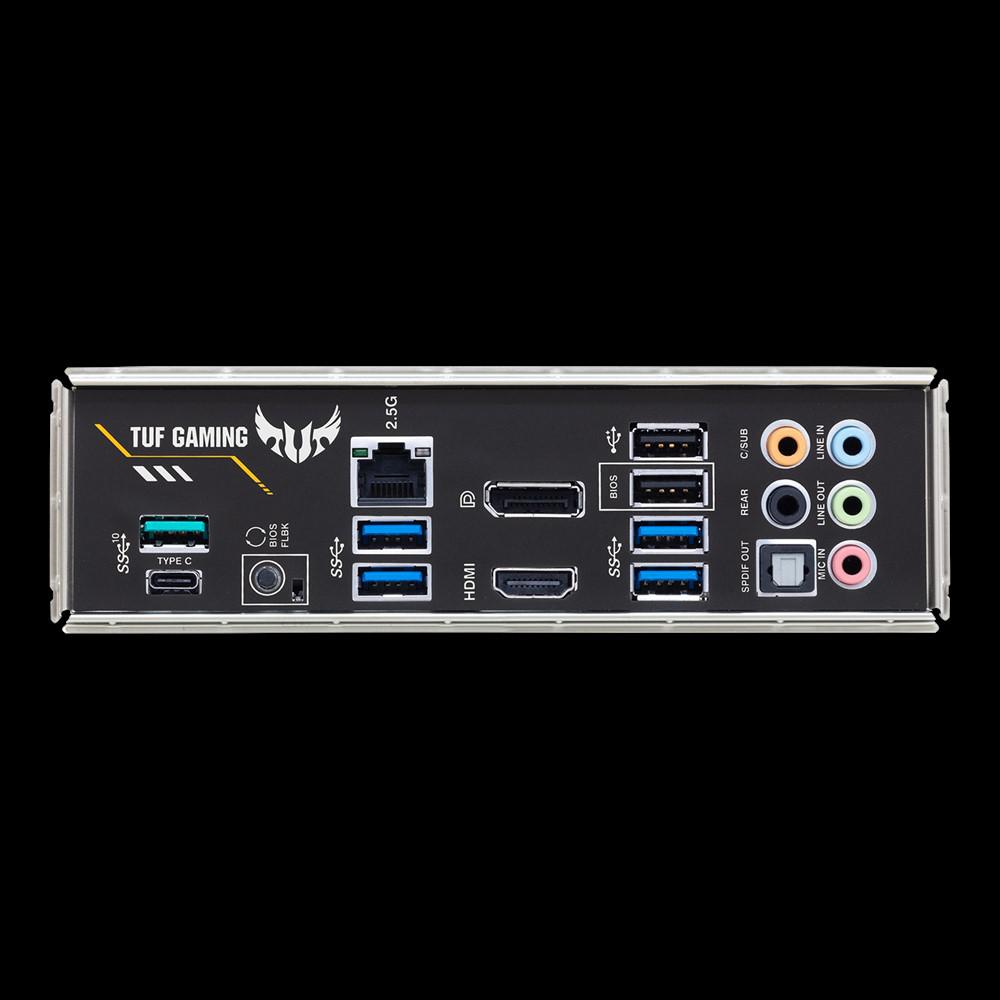

Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
S/PDIF out port: Yes
PS/2 ports quantity: 1
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
DVI-D ports quantity: 0
Supported storage drive interfaces: M.2, SATA
RAID levels: 0, 1, 10
Height: 6.8 mm
Width: 30.5 mm
Depth: 24.4 mm
MB-Format: ATX
RAM-Slots: 4
MB-Socket: AM4
PCI-Ex16: 2
PCI: 0
Serial-or-Paralel: No/No
USB3: 4-8
CPU încorporat: No
PCI-Ex1: 1
