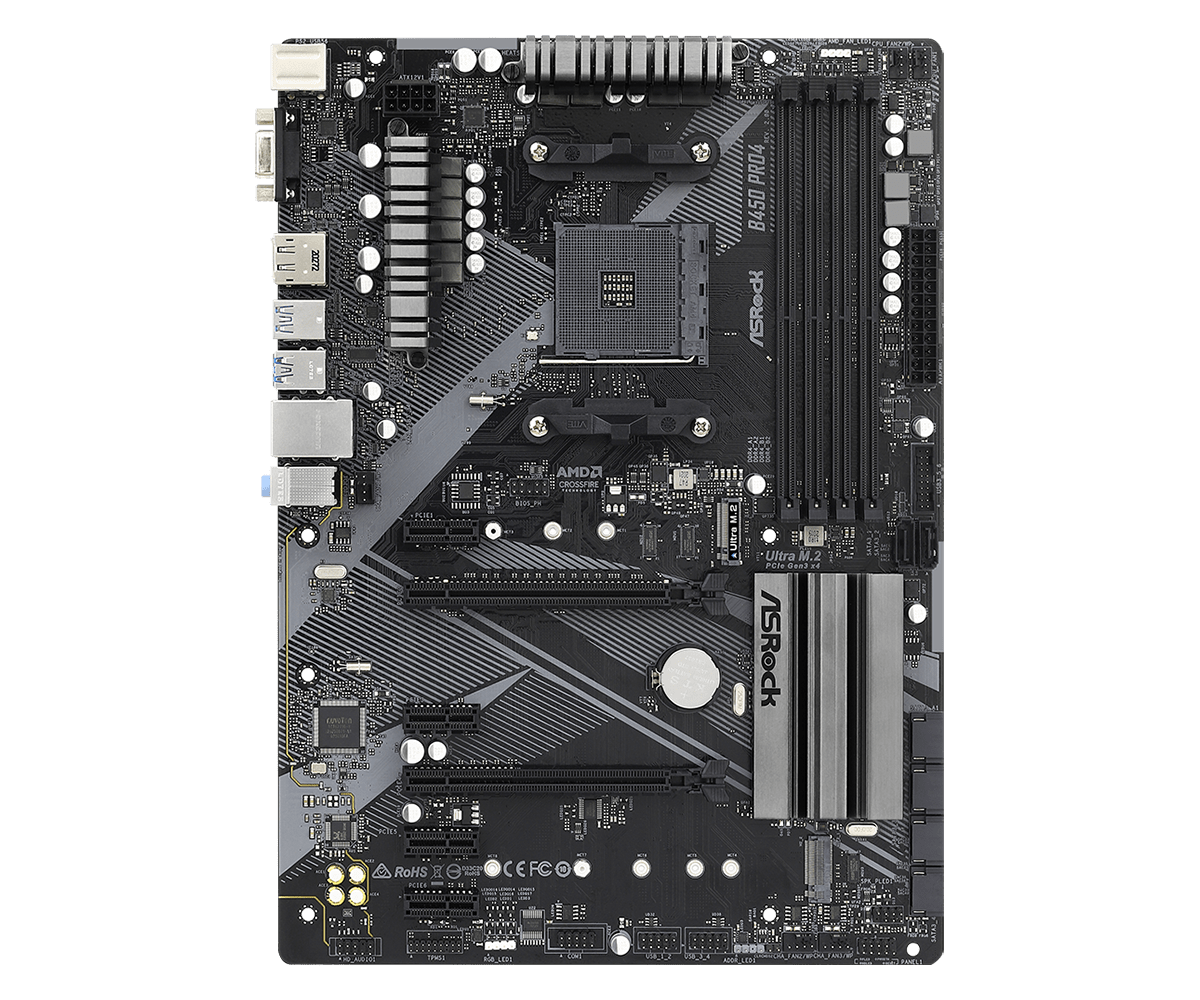

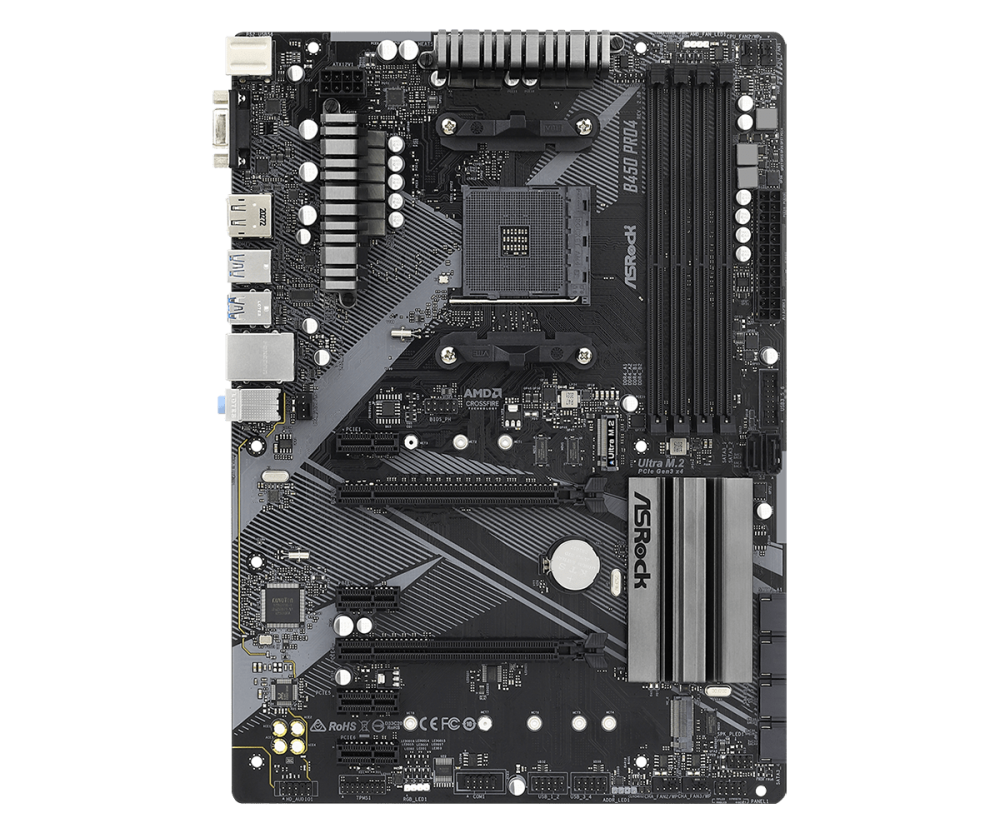

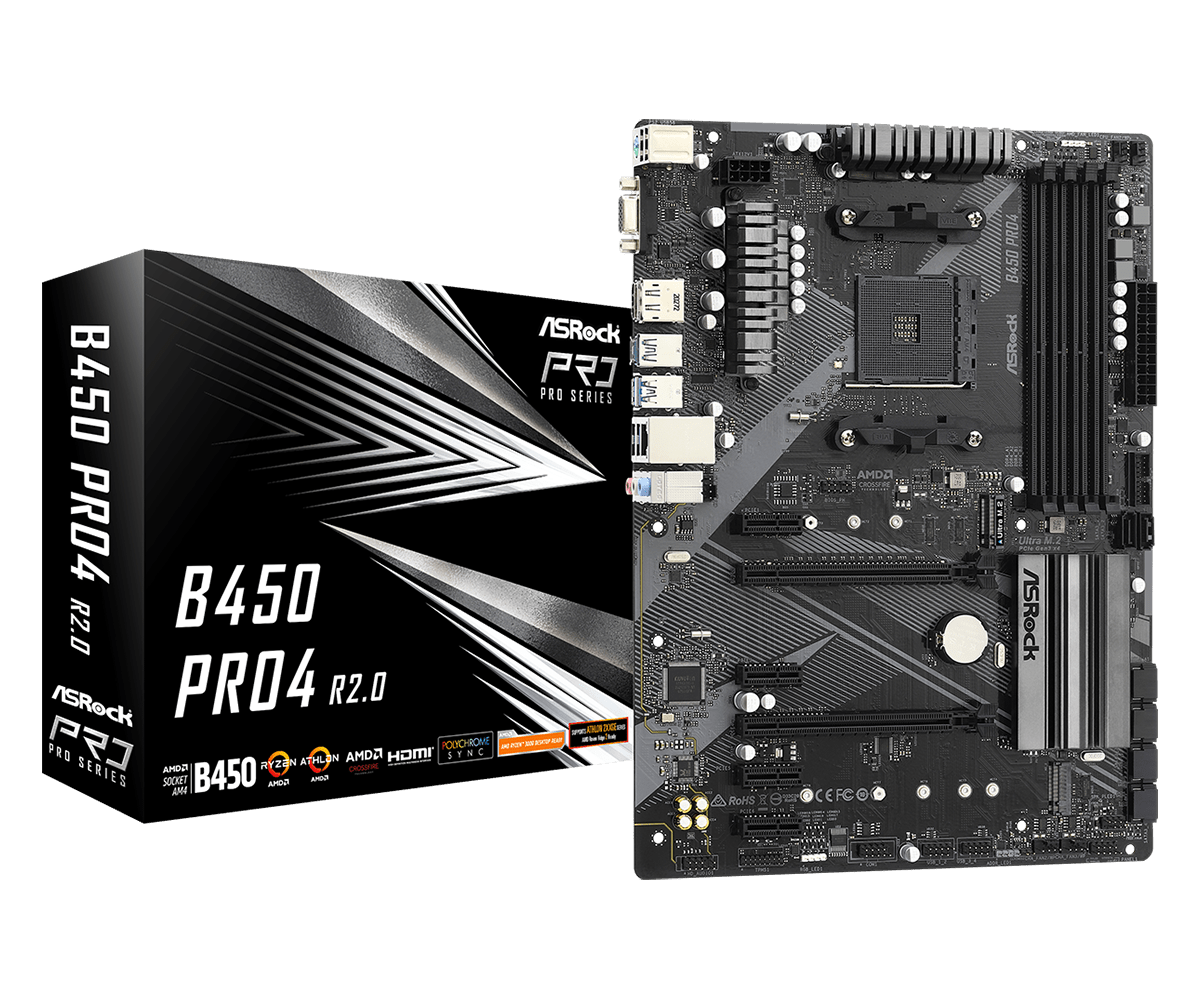

MB Asrock B450 Pro4 R2.0 AM4

BIOS type: UEFI AMI

BIOS memory size: 128 Mbit

ACPI version: 5.1

System Management BIOS (SMBIOS) version: 2.3

PCI Express x16 (Gen 3.x) slots: 2

Number of M.2 (M) slots: 2

PCI Express x1 (Gen 2.x) slots: 4

PC health monitoring: Fan, Temperature, Voltage

Motherboard chipset: AMD B450

Motherboard chipset family: AMD

Audio Chip: Realtek ALC892 / Realtek ALC897

Certification: FCC, CE, ErP/EuP

Audio output channels: 7.1 channels

Component for: PC

Windows operating systems supported: Windows 10 x64

Motherboard form factor: ATX

DirectX version: 12.0

Maximum resolution: 4096 x 2160 pixels

HDCP: Yes

Parallel processing technology support: CrossFireX, Quad-GPU CrossFireX

Number of displays supported: 3

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

12V power connector: Yes

Number of COM connectors: 1

TPM connector: Yes

RGB LED pin header: Yes

Number of SATA III connectors: 6

Number of chassis fan connectors: 3

Harmonized System (HS) code: 84733020

Supported memory clock speeds: 2133,2400,2667,2933,3200 MHz

ECC сompatibility: ECC & Non-ECC

Number of memory slots: 4

Memory slots type: DIMM

Unbuffered memory: Yes

Supported memory types: DDR4-SDRAM

Maximum internal memory: 128 GB

Memory channels: Dual-channel

Ethernet LAN: Yes

Wake-on-LAN ready: Yes

Ethernet interface type: Gigabit Ethernet

Wi-FI: No

LAN controller: Realtek RTL8111H

Drivers included: Yes

Cables included: SATA

Bundled software: ASRock A-TuningnASRock Polychrome SYNCnASRock XFast LAN

DVI-D ports quantity:

DisplayPorts quantity: 1

DisplayPort version: 1.2

HDMI version: 1.4

USB 2.0 ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

Processor manufacturer: AMD

Processor socket: Socket AM4

Maximum number of SMP processors: 1

Compatible processor series: AMD Athlon, AMD Ryzen 3000 Series, AMD Ryzen 5000 Series

Ethernet LAN (RJ-45) ports: 1

PS/2 ports quantity: 1

VGA (D-Sub) ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

RAID support: Yes

Supported storage drive interfaces: M.2, SATA III

RAID levels: 0, 1, 10

Width: 30.5 mm

Depth: 224 mm

MB-Format: ATX

RAM-Slots: 4

MB-Socket: AM4

PCI-Ex16: 2

USB3: 4-8

CPU încorporat: No

PCI-Ex1: 1

PCI: 0

Garantia Produsului: 36 luni
