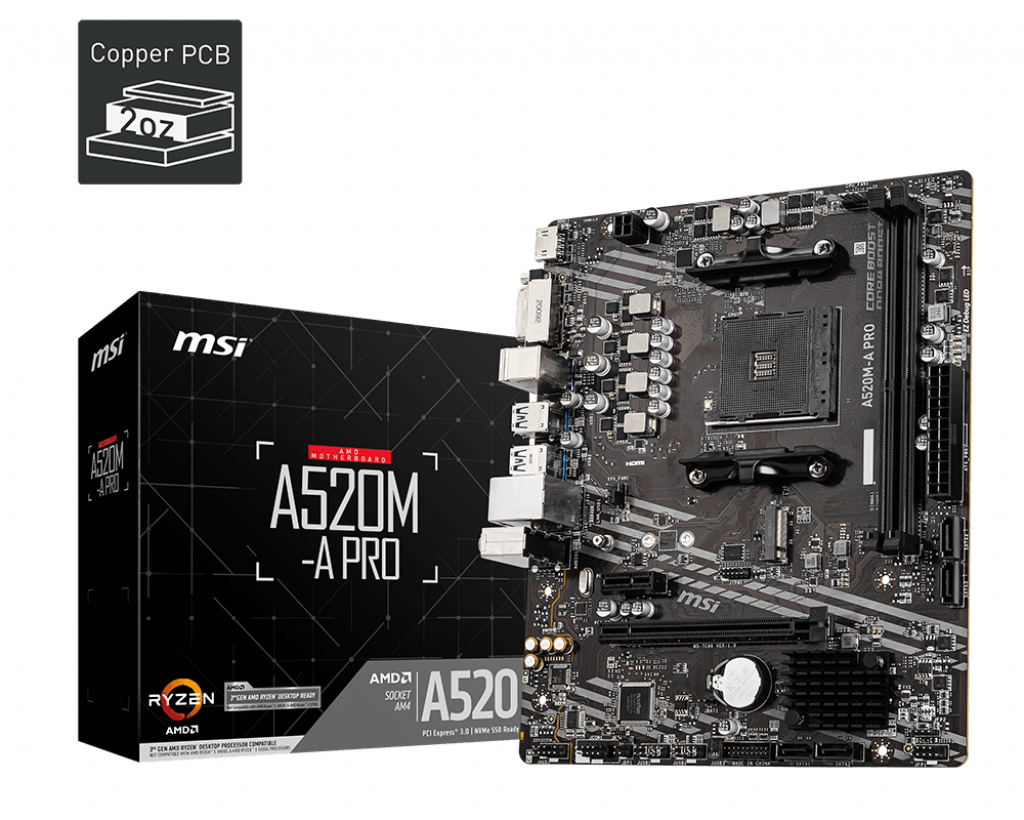

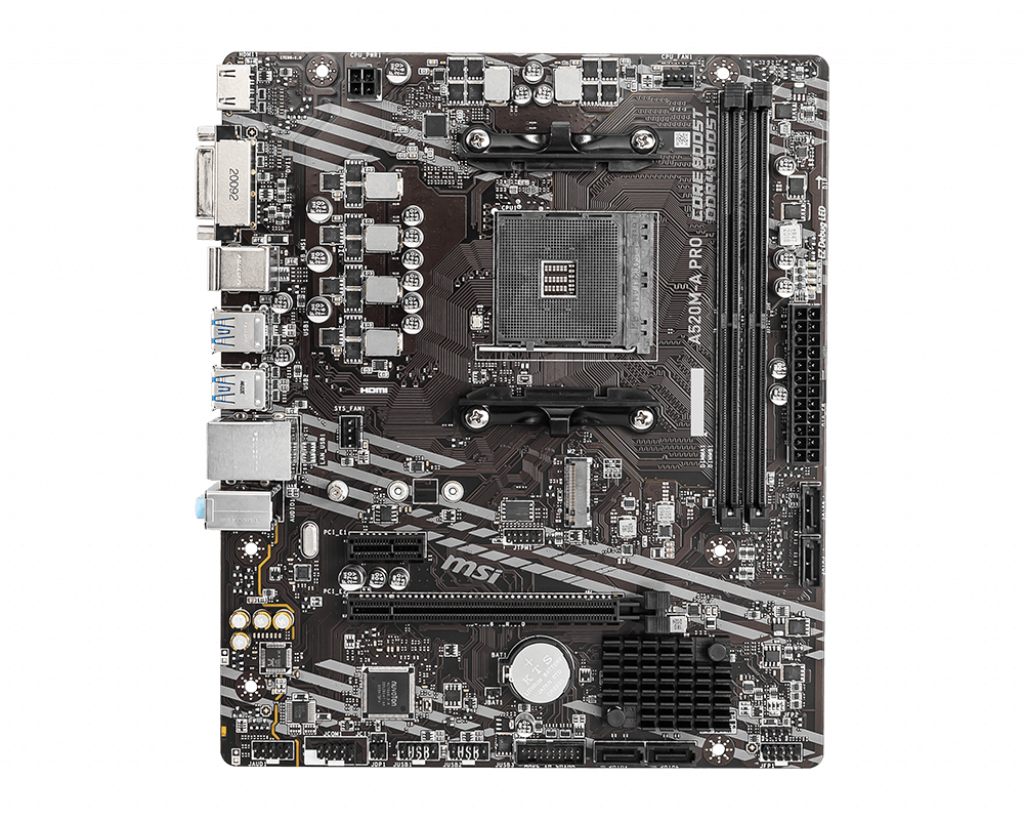

MB AMD MSI AM4 A520M-A PRO

Placa de baza MSI Socket AM4 A520M-A PRO 911-7C96-001 / 4719072749927 SPECIFICATIONS Model Name A520M-A PRO CPU Support Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors CPU Socket AMD Socket AM4 Chipset AMD A520 Chipset Graphics Interface 1x PCI-E 3.0 x16 slot Display Interface HDMI, DVI-D – Requires Processor Graphics Memory Support 2 DIMMs, Dual Channel DDR4-4600MHz (OC) Expansion Slots 1x PCI-E 3.0 x1 slot Storage 1x M.2 Gen3 x4 slot, 4x SATA 6Gb/s ports USB ports 6x USB 3.2 Gen 1 5Gbps (Type-A) + 6x USB 2.0 LAN Realtek® RTL8111H Gigabit LAN Audio 8-Channel (7.1) HD Audio with Audio Boost
Garantie: 36 luni


Specificatii tehnice

PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Motherboard chipset: AMD A520
Number of mounting holes: 8
Audio Chip: Realtek ALC892
Audio output channels: 7.1 channels
Component for: PC
On-board graphics card: No
Number of displays supported: 2
Maximum resolution: 4096 x 2160 pixels
Front panel connector: Yes
Chassis intrusion connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Number of SATA II connectors: 0
Number of SATA connectors: 0
Number of Parallel ATA connectors: 0
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
Harmonized System (HS) code: 84733020
Supported memory clock speeds: 1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz
ECC сompatibility: ECC & Non-ECC
Memory slots type: DIMM
Unbuffered memory: Yes
Number of memory slots: 2
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel
Maximum internal memory: 64 GB
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-FI: No
LAN controller: Realtek RTL8111H
mSATA ports quantity: 0
Weight: 698 g
Compatible processor series: AMD Ryzen 3000 Series
Maximum number of SMP processors: 1
Processor socket: Socket AM4
Processor manufacturer: AMD
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
PS/2 ports quantity: 0
eSATA ports quantity: 0
Firewire (IEEE 1394) ports: 0
DVI-D ports quantity: 1
VGA (D-Sub) ports quantity: 0
Microphone in: Yes
Headphone outputs: 1
Number of HDDs supported: 5
Supported storage drive interfaces: PCI Express 3.0, SATA
RAID support: Yes
RAID levels: 0, 1, 10
Supported storage drive types: HDD & SSD
Height: 60 mm
Depth: 200 mm
MB-Format: micro-ATX
MB-Socket: AM4
RAM-Slots: 2
USB3: 4-8
PCI-Ex1: 1
PCI-Ex16: 1
Onboard-CPU: No
PCI: 1
Serial-or-Paralel: Yes/No
