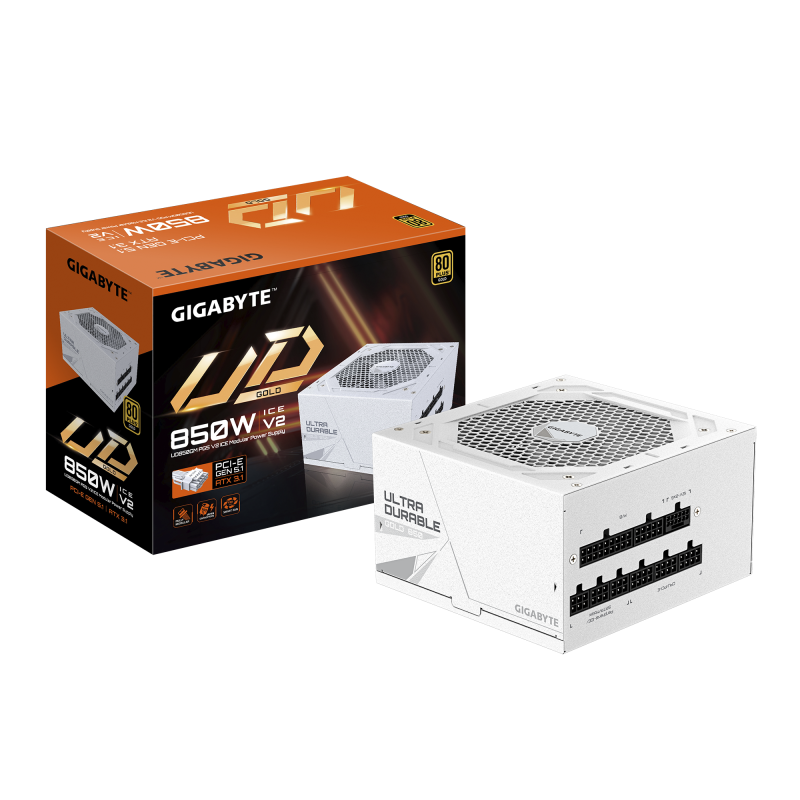

GIGABYTE UD850GM PG5 V2 ICE Power Supply

GIGABYTE UD850GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Garantie: 24 luni


Specificatii tehnice

Cooling type: Active
Number of fans: 1 fan(s)
Fan diameter: 12 cm
Product colour: White
On/off switch: Yes
Package height: 211 mm
Package type: Box
Package width: 618 mm
Package depth: 269 mm
Package weight: 2.56 kg
Purpose: PC
Mean time between failures (MTBF): 100000 h
Power supply unit (PSU) form factor: ATX
80 PLUS certification: 80 PLUS Gold
ATX version: 3.1
Bearing technology: HYB
PCI Express power cable length: 60 cm
Peripheral (Molex) power cable length: 150,500 mm
SATA power cable length: 150,600 mm
Number of EPS connectors: 2
PCI Express power connectors (12+4 pin): 1
PCI Express power connectors (12+4 pin) cable length: 700 mm
CPU power cable length: 65 cm
Number of SATA power connectors: 8
Motherboard power cable length: 61 cm
Cabling type: Fully-Modular
Peripheral (Molex) power connectors (4-pin): 3
Motherboard power connector: 20+4 pin ATX
PCI Express power connectors (6+2 pin): 4
CPU power connector (4+4 pin): Yes
PCI Express connector: Yes
Floppy drive power connector: 1
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 12 - 6.5 A
Power Factor Correction (PFC) type: Active
Combined power (+5Vsb): 15 W
Max output current (+5Vsb): 3 A
Combined power (-12V): 3.6 W
Max output current (-12V): 0.3 A
Power factor: 0.9
Hold time: 16 ms
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Total power: 850 W
Max output current (+12V): 70.8 A
Combined power (+12V): 850 W
Efficiency: 90%
Max output current (+3.3V): 20 A
Max output current (+5V): 20 A
Combined power (+3.3V): 105 W
Combined power (+5V): 105 W
Warranty period: 10 year(s)
Depth: 140 mm
Width: 150 mm
Height: 86 mm
Weight: 2.4 kg
