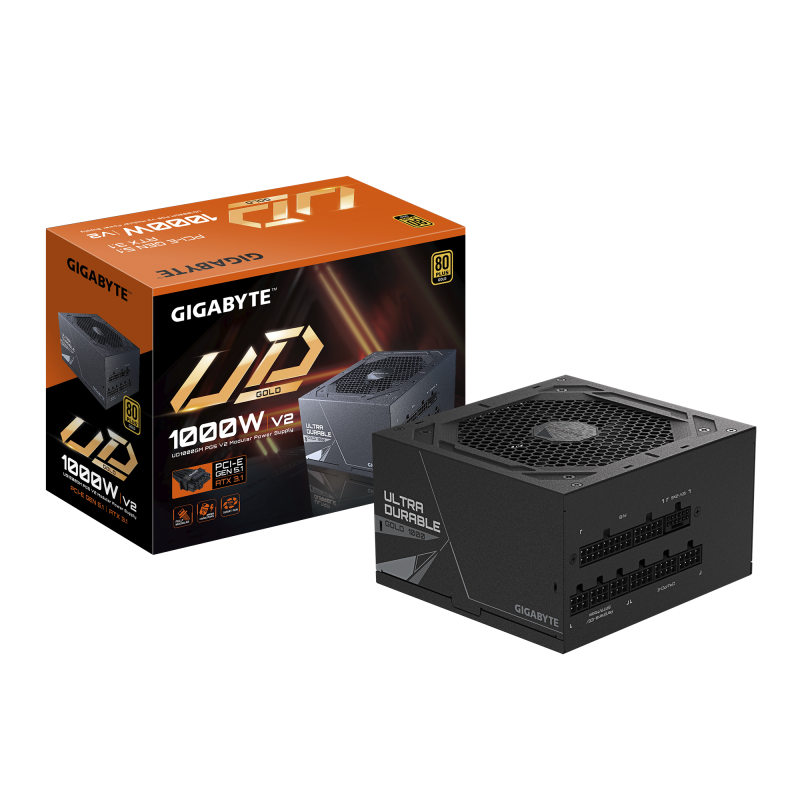

GIGABYTE UD1000GM PG5 V2 Power Supply Un

Cooling type: Active

Number of fans: 1 fan(s)

Fan diameter: 12 cm

Product colour: Black

On/off switch: Yes

Warranty period: 10 year(s)

Package height: 211 mm

Package type: Box

Package weight: 2.64 kg

Package width: 618 mm

Package depth: 269 mm

80 PLUS certification: 80 PLUS Gold

ATX version: 3.1

Bearing technology: HYB

Purpose: PC

Mean time between failures (MTBF): 100000 h

Power supply unit (PSU) form factor: ATX

Number of SATA power connectors: 8

Motherboard power cable length: 61 cm

Cabling type: Fully-Modular

Motherboard power connector: 20+4 pin ATX

Peripheral (Molex) power connectors (4-pin): 3

PCI Express power connectors (6+2 pin): 4

CPU power connector (4+4 pin): Yes

CPU power cable length: 60 cm

PCI Express connector: Yes

Floppy drive power connector: 1

PCI Express power connectors (16-pin): 1

PCI Express power cable length: 70 cm

SATA power cable length: 150,600 mm

Number of EPS connectors: 2

Peripheral (Molex) power cable length: 120,150,500 mm

Max output current (+12V): 0.3 A

Input current: 15 - 6.5 A

Combined power (-12V): 1000 W

Combined power (+12V): 3.6 W

Total power: 1000 W

Max output current (-12V): 83.3 A

Power factor: 0.9

Hold time: 16 ms

Efficiency: 90%

Combined power (+3.3V): 125 W

Combined power (+5V): 125 W

Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Max output current (+5Vsb): 3 A

Power Factor Correction (PFC) type: Active

Combined power (+5Vsb): 15 W

Max output current (+3.3V): 25 A

Max output current (+5V): 25 A

AC input voltage: 100 - 240 V

AC input frequency: 50/60 Hz

Depth: 140 mm

Height: 86 mm

Weight: 2.48 kg

Width: 150 mm

Garantia Produsului: 24 luni
