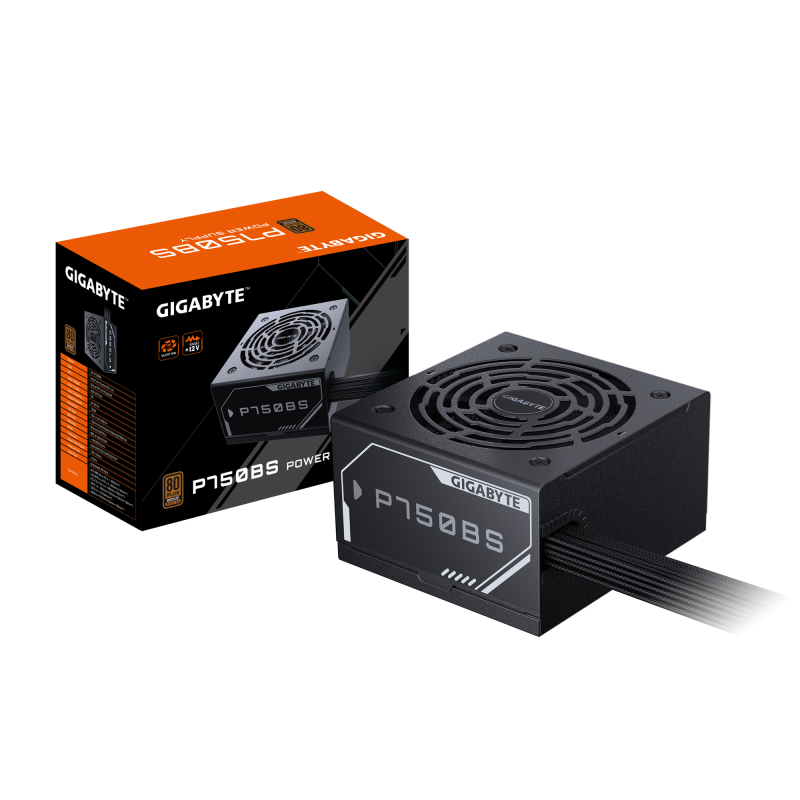

GIGABYTE P750BS power supply unit

Cooling type: Active

Number of fans: 1 fan(s)

Fan diameter: 12 cm

Fan location: Top

On/off switch: Yes

Warranty period: 3 year(s)

Package height: 117 mm

Package width: 254 mm

Package depth: 206 mm

Package type: Box

Package weight: 2.68 kg

Bearing technology: FDB

Power supply unit (PSU) form factor: ATX

Mean time between failures (MTBF): 100000 h

Purpose: PC

80 PLUS certification: 80 PLUS Bronze

PCI Express power connectors (6+2 pin): 4

Motherboard power connector: 20+4 pin ATX

CPU power connector (4+4 pin): Yes

ATX power connector (20+4 pin): Yes

PCI Express connector: Yes

Cabling type: Non-Modular

Peripheral (Molex) power connectors (4-pin): 2

Motherboard power cable length: 60 cm

Floppy disk drive connector: Yes

Peripheral (Molex) power cable length: 150,600 mm

Floppy drive power connector: 2

SATA power cable length: 150,500 mm

Number of SATA power connectors: 7

Max output current (+12V): 0.3 A

Combined power (+12V): 3.6 W

Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Efficiency: 88%

Power Good signal delay range: 100 - 150 ms

Combined power (+5Vsb): 15 W

Power Factor Correction (PFC) type: Active

Max output current (+3.3V): 20 A

Power factor: 0.9

Hold time: 16 ms

Max output current (+5Vsb): 3 A

Max output current (+5V): 20 A

Input current: 6 A

Max output current (-12V): 0.3 A

Total power: 750 W

Combined power (+3.3V): 100 W

Combined power (+5V): 100 W

Combined power (-12V): 3.6 W

AC input voltage: 200 - 240 V

AC input frequency: 50/60 Hz

Depth: 140 mm

Weight: 2.22 kg

Width: 150 mm

Height: 86 mm
