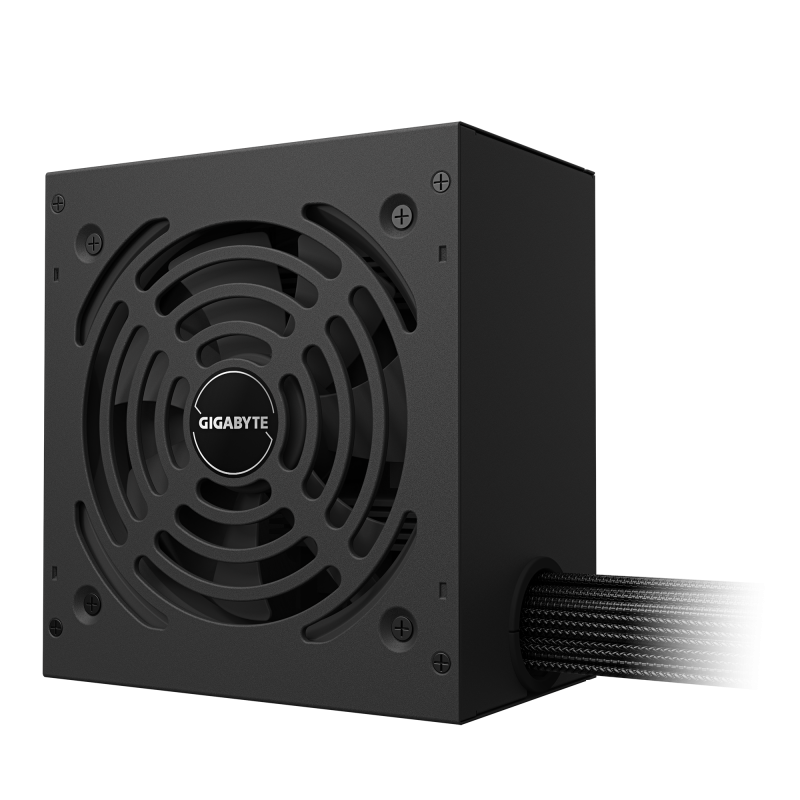

GIGABYTE P650G PCIE 5.1 power supply

GIGABYTE P650G PCIE 5.1. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 120,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm
Garantie: 24 luni


Specificatii tehnice

Cooling type: Active
Number of fans: 1 fan(s)
Fan diameter: 12 cm
Fan location: Top
Product colour: Black
On/off switch: Yes
Package width: 260 mm
Package depth: 110 mm
Package height: 180 mm
Package weight: 1.92 kg
Package type: Box
Bearing technology: HYB
Purpose: PC
Mean time between failures (MTBF): 100000 h
ATX version: 3.1
Power supply unit (PSU) form factor: ATX
80 PLUS certification: 80 PLUS Gold
Floppy disk drive connector: Yes
PCI Express power connectors (6+2 pin): 2
PCI Express power cable length: 50 cm
CPU P4 connector (4-pin): 1
Peripheral (Molex) power connectors (4-pin): 3
Motherboard power cable length: 60 cm
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 6
CPU power connector (4+4 pin): Yes
CPU power cable length: 60 cm
ATX power connector (20+4 pin): Yes
Cabling type: Non-Modular
SATA power cable length: 120,500 mm
Peripheral (Molex) power cable length: 150 mm
Max output current (+12V): 54.2 A
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 10 - 6 A
Max output current (+5Vsb): 18 A
Power Factor Correction (PFC) type: Active
Combined power (+5Vsb): 15 W
Total power: 650 W
Combined power (-12V): 3.6 W
Max output current (-12V): 0.3 A
Max output current (+3.3V): 18 A
Maximum input current (@110V): 10 A
Combined power (+3.3V): 90 W
Max output current (+5V): 18 A
Power Good signal delay range: 100 - 150 ms
Maximum input current (@220V): 6 A
Combined power (+12V): 650 W
Combined power (+5V): 650 W
Power protection features: Over power, Overcharge, Short circuit, Under voltage
Warranty period: 5 year(s)
Weight: 1.76 kg
Width: 140 mm
Depth: 150 mm
Height: 86 mm
