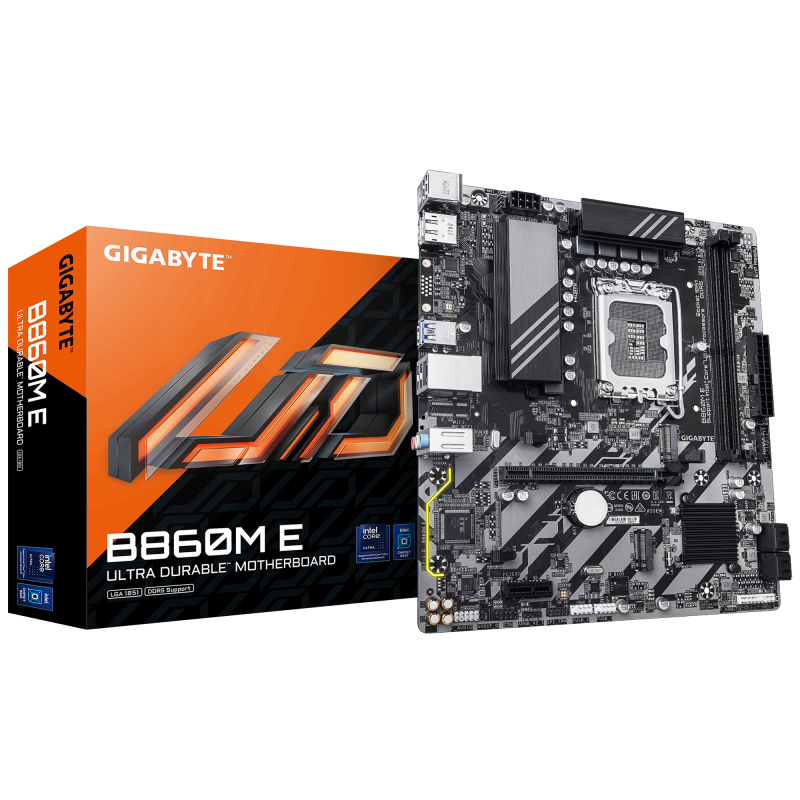

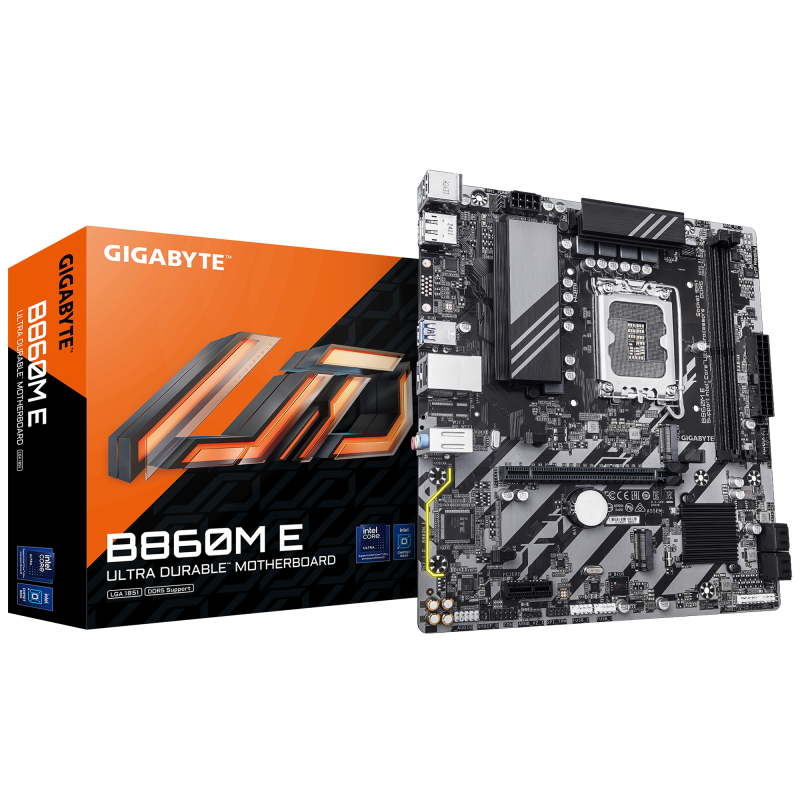

GIGABYTE B860M E motherboard

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

BIOS type: UEFI AMI

BIOS memory size: 256 Mbit

Clear CMOS jumper: Yes

Cooling type: Passive

Product colour: Dark brown

1st M.2 largest key size: 2280

2nd M.2 largest key size: 2280

1st M.2 highest PCI Express generation: 4.0

2nd M.2 highest PCI Express generation: 4.0

PCI Express x16 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 2

PCI Express x1 (Gen 3.x) slots: 1

Audio output channels: 7.1 channels

Audio Chip: Realtek ALC897

Component for: PC

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Motherboard form factor: micro ATX

Power source type: ATX

Motherboard chipset family: Intel

Motherboard chipset: Intel B860

PC health monitoring: Fan, Temperature, Voltage, Water cooling

DirectX version: 12.0

Maximum resolution: 4096 x 2160 pixels

HDCP version: 2.3

Parallel processing technology support: Not supported

HDCP: Yes

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Front panel connector: Yes

Number of CPU fan connectors: 2

TPM connector: Yes

Number of water pump connectors: 2

RGB LED pin header: Yes

Number of chassis fan connectors: 1

Number of EPS power connectors (8-pin): 1

12V power connector: Yes

S/PDIF out connector: Yes

Serial port headers: 1

Number of RGB LED pin headers: 2

Country of origin: China

Products per shipping (inner) case: 1 pc(s)

Supported memory clock speeds: 8800,8600,8400,8266,8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,5600 MHz

Supported memory clock speed (max): 8800 MHz

Memory slots type: DIMM

Unbuffered memory: Yes

Supported memory types: DDR5-SDRAM

ECC сompatibility: ECC & Non-ECC

Maximum internal memory per slot: 64 GB

Number of memory slots: 2

Memory channels: Dual-channel

Maximum internal memory: 128 GB

Ethernet LAN: Yes

Ethernet interface type: Gigabit Ethernet

Wi-FI: No

LAN controller: Realtek RTL8111H

Weight: 890 g

Bundled software: Norton® Internet Security (OEM version)nLAN bandwidth management software

Batteries included: Yes

Screws included: Yes

Package height: 54 mm

Package weight: 972.4 g

Package width: 265 mm

Package depth: 265 mm

Warranty period: 3 year(s)

DVI-D ports quantity:

DisplayPorts quantity: 1

DisplayPort version: 2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

HDMI version: 2.1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

HDMI ports quantity: 1

USB 2.0 ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

Processor manufacturer: Intel

Processor socket: LGA 1851 (Socket V1)

Supported processor sockets: LGA 1851

Compatible processor series: Intel Core Ultra (Series 2)

Ethernet LAN (RJ-45) ports: 1

Microphone in: Yes

Headphone outputs: 1

VGA (D-Sub) ports quantity: 0

PS/2 ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

Line-in: Yes

Supported storage drive types: HDD & SSD

RAID support: Yes

Number of HDDs supported: 4

RAID levels: 0, 1, 5, 10

Number of storage drives supported: 6

Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III

Depth: 215 mm

Height: 35 mm

Width: 244 mm
