CR PSU SF1000 FULLY MODULAR 80+ PLATINUM

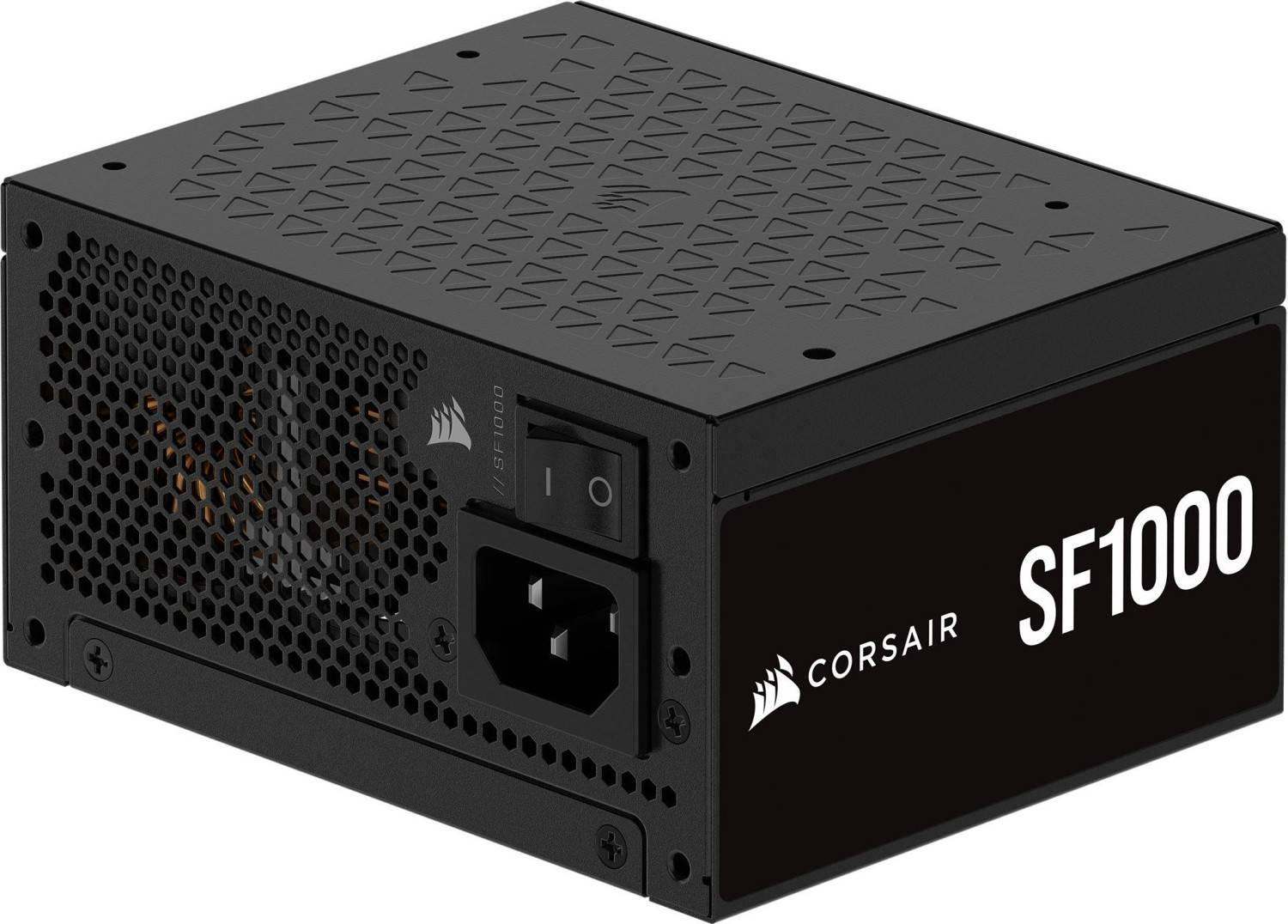

Sursa CORSAIR SF1000 1000W 80 PLUS Platinum SFX, ATX 3.1, Fully Modular, Active PFC
Garantie: 84 luni


Specificatii tehnice

Cooling type: Active
Number of fans: 1 fan(s)
Fan location: Top
Fan diameter: 9.2 cm
Product colour: Black
On/off switch: Yes
Cables included: AC, CPU, PATA, PCIe, SATA
Package type: Box
Silent mode: Yes
Power supply unit (PSU) form factor: SFX
Bearing technology: FDB
ATX version: 3.1
Purpose: PC
80 PLUS certification: 80 PLUS Platinum
Mean time between failures (MTBF): 100000 h
EPS power connector (4+4 pin): Yes
PCI Express power connectors (6+2 pin): 4
EPS power connector (8-pin): Yes
Peripheral (Molex) power connectors (4-pin): 1
Motherboard power connector: 24-pin ATX
Peripheral (Molex) power cable length: 750 mm
Cabling type: Fully-Modular
Number of SATA power connectors: 3
Motherboard power cable length: 30 cm
PCI Express power cable length: 40 cm
SATA power cable length: 445 mm
Max output current (-12V): 83.3 A
Combined power (-12V): 1000 W
Power protection features: Over power, Over voltage, Overheating, Short circuit, Under voltage
Combined power (+12V): 1000 W
Total power: 1000 W
Max output current (+12V): 83.3 A
Input current: 12 - 6 A
Maximum input current (@110V): 12 A
Maximum input current (@220V): 6 A
Max output current (+3.3V): 20 A
Max output current (+5V): 20 A
Combined power (+3.3V): 130 W
Combined power (+5V): 130 W
Combined power (+5Vsb): 15 W
Max output current (+5Vsb): 3 A
AC input frequency: 47-63 Hz
AC input voltage: 100 - 240 V
Number of PATA power connectors: 1
Weight: 2.3 kg
