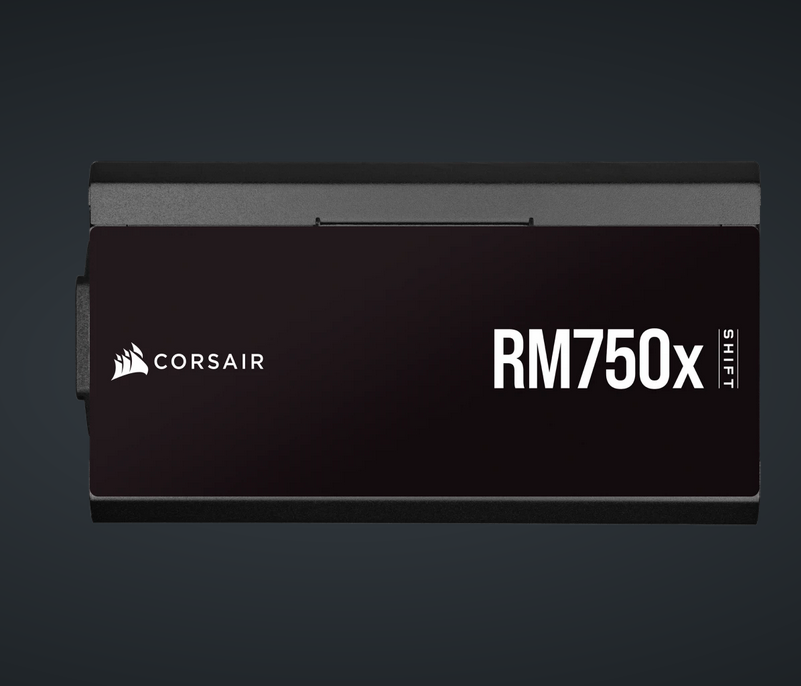

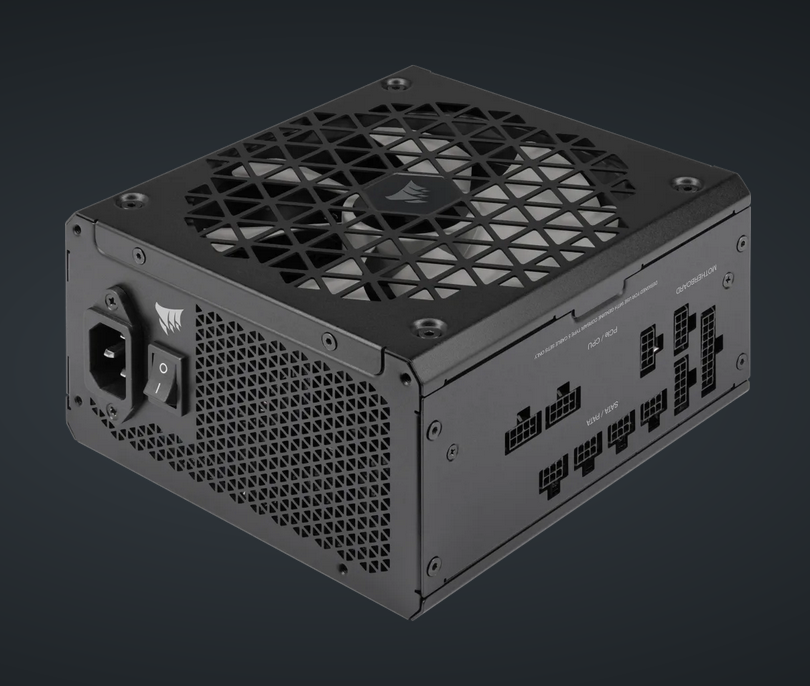

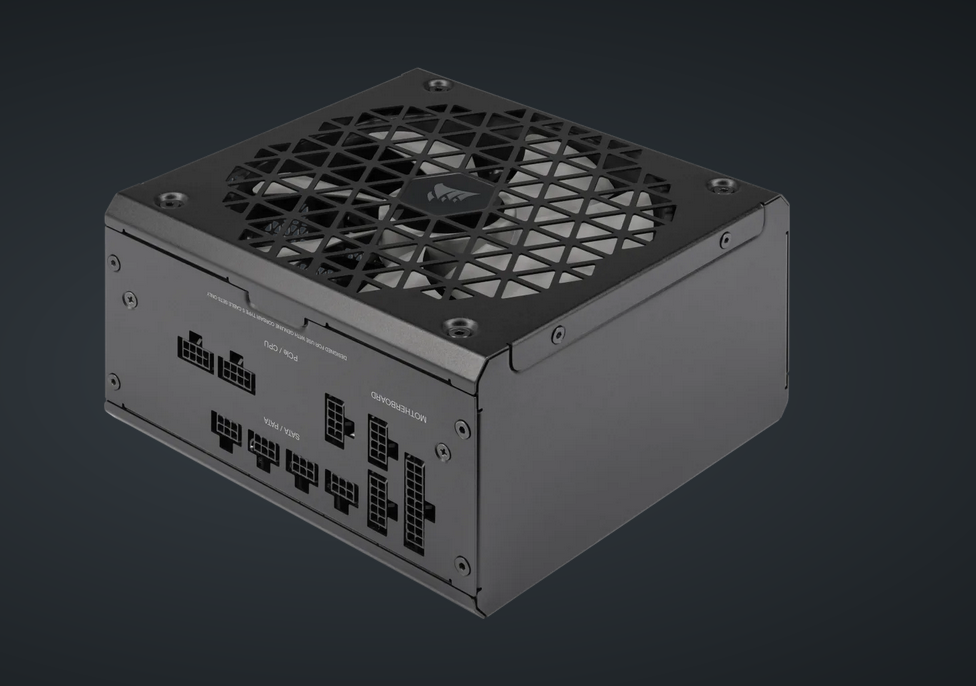

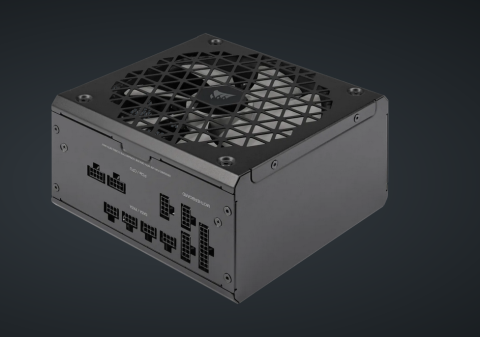

CR PSU RM750x SHIFT 80+ GOLD

Sursa Corsair RM750x SHIFT 80-PLUS Gold, 750W ATX Connector 1 ATX12V Version 3 Continuous power W 750 Watts Fan bearing technology FDB Fan size mm 140mm MTBF hours 100,000 hours 80 PLUS Efficiency Gold Cable Type Type 5 EPS12V Connector 2 EPS12V Version 2.92 PCIe Connector 3 SATA Connector 12
Garantie: 120 luni


Specificatii tehnice

Compliance certificates: Low Voltage Directive (LVD), RoHS, UKCA
Cooling type: Active
Number of fans: 1 fan(s)
Fan diameter: 14 cm
Product colour: Black
EPS cable length: 65 cm
Screws included: Yes
Cables included: AC, DC
Power supply unit (PSU) form factor: ATX
Purpose: PC/Server
EPS version: 2.92
ATX version: 3.0
80 PLUS certification: 80 PLUS Gold
Number of SATA power connectors: 12
SATA power cable length: 455,570,685,800 mm
Peripheral (Molex) power cable length: 450,550,650,750 mm
PCI Express power connectors (6+2 pin): 3
PCI Express power connectors (16-pin): 1
PCI Express power cable length: 75 cm
Motherboard power connector: 24-pin ATX
Motherboard power cable length: 61 cm

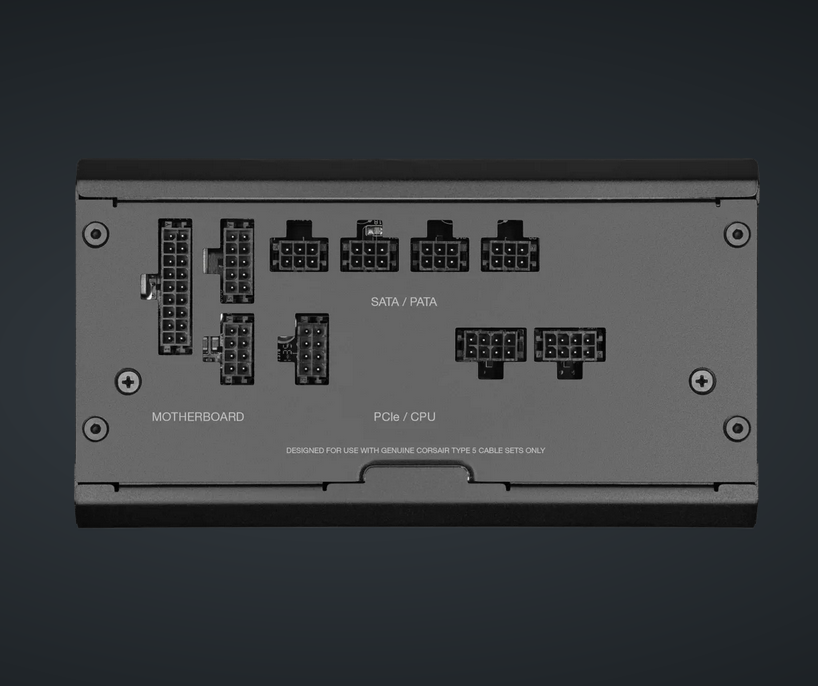

Cabling type: Fully-Modular
EPS power connector (4+4 pin): Yes
Peripheral (Molex) power connectors (4-pin): 4
Total power: 750 W
Combined power (+12V): 750 W
Combined power (+5Vsb): 15 W
Max output current (+12V): 62.5 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit
Combined power (+3.3V): 150 W
Combined power (+5V): 150 W
Max output current (+3.3V): 20 A
Max output current (+5V): 20 A
Combined power (-12V): 750 W
Max output current (-12V): 62.5 A
Input current: 5 - 10 A
Efficiency: 90%
AC input voltage: 100 - 240 V
AC input frequency: 47-63 Hz
Sustainability compliance: Yes
Cable tie(s) included: Yes
Weight: 1.6 kg
Depth: 160 mm
Width: 150 mm
Height: 86 mm
