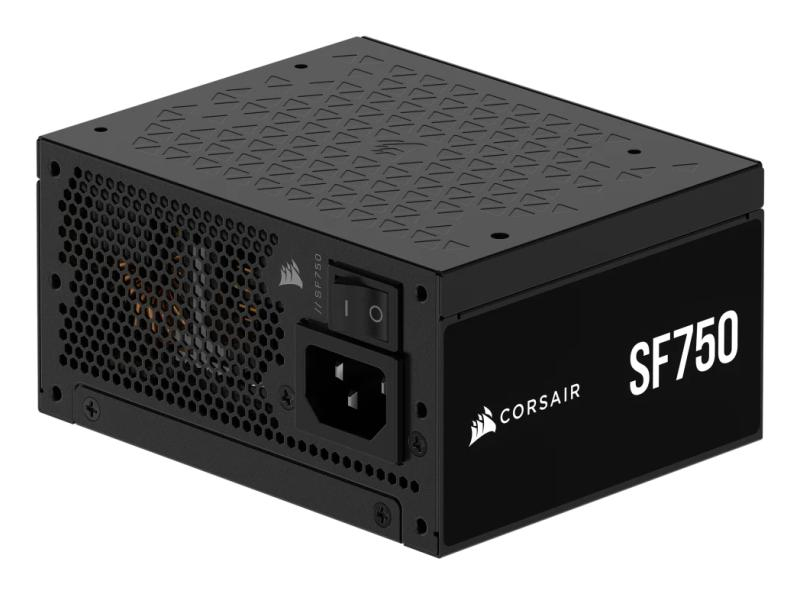

CR PSU 750W CP-9020284-EU

Cooling type: Active

Number of fans: 1 fan(s)

Fan location: Top

Fan diameter: 9.2 cm

On/off switch: Yes

Cables included: AC, CPU, PATA, PCIe, SATA

Package type: Box

Silent mode: Yes

ATX version: 3.1

Power supply unit (PSU) form factor: SFX

Bearing technology: FDB

Purpose: PC

80 PLUS certification: 80 PLUS Platinum

Mean time between failures (MTBF): 100000 h

EPS power connector (4+4 pin): Yes

PCI Express power connectors (6+2 pin): 2

Motherboard power connector: 24-pin ATX

Cabling type: Fully-Modular

Motherboard power cable length: 30 cm

Number of PATA power connectors: 1

Number of SATA power connectors: 3

PCI Express power cable length: 40 cm

SATA power cable length: 445 mm

AC input frequency: 47-63 Hz

Combined power (-12V): 750 W

Input current: 10 - 5 A

Max output current (-12V): 62.5 A

Combined power (+5Vsb): 15 W

Max output current (+12V): 62.5 A

Max output current (+3.3V): 20 A

Max output current (+5Vsb): 3 A

Max output current (+5V): 20 A

Efficiency: 80Plus-Platinum

Total power: 750 W

Combined power (+3.3V): 130 W

Combined power (+12V): 750 W

Combined power (+5V): 130 W

Weight: 2.15 kg

Modular: Yes

Garantia Produsului: 120 luni
