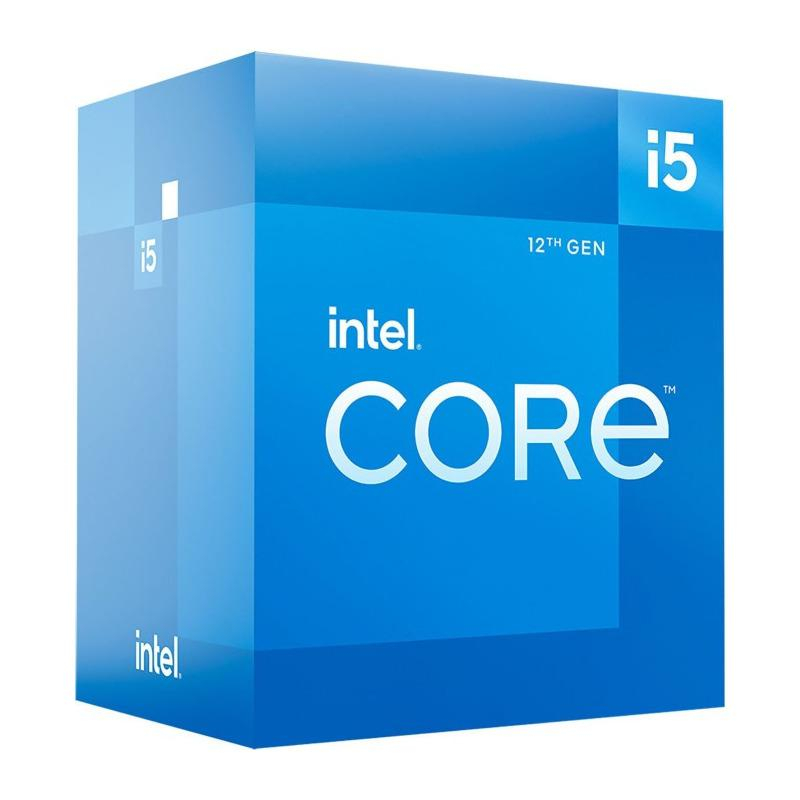

CPU Intel i5-12400 4.4GHz LGA1700

CPU configuration (max): 1

Embedded options available: No

Execute Disable Bit: Yes

Thermal Monitoring Technologies: Yes

Supported instruction sets: SSE4.1, SSE4.2, AVX 2.0

Idle States: Yes

Use conditions: PC/Client/Tablet

Maximum number of PCI Express lanes: 20

PCI Express slots version: 5.0, 4.0

PCI Express configurations: 1x16+1x4, 2x8+1x4

Scalability: 1S

Direct Media Interface (DMI) Revision: 4.0

Market segment: Desktop

Export Control Classification Number (ECCN): 5A992CN3

Commodity Classification Automated Tracking System (CCATS): G167599

Number of execution units: 24

Multi-Format Codec Engines: 1

On-board graphics card dynamic frequency (max): 1450 MHz

On-board graphics card ID: 0x4692 / 0x4682

On-board graphics card outputs supported: Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1

On-board graphics card base frequency: 300 MHz

Number of displays supported (on-board graphics): 4

On-board graphics card maximum resolution (DisplayPort): 7680 x 4320 pixels

On-board graphics card maximum resolution (eDP - Integrated Flat Panel): 5120 x 3200 pixels

On-board graphics card maximum resolution (HDMI): 4096 x 2160 pixels

On-board graphics card refresh rate at maximum resolution (DisplayPort): 60 Hz

On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel): 120 Hz

On-board graphics card refresh rate at maximum resolution (HDMI): 60 Hz

On-board graphics card model: Intel UHD Graphics 730

On-board graphics card DirectX version: 12.0

On-board graphics card OpenGL version: 4.5

On-board graphics card: Yes

Discrete graphics card: No

Discrete graphics card model: Not available

Harmonized System (HS) code: 85423119

Memory bandwidth (max): 76.8 GB/s

Memory channels: Dual-channel

Non-ECC: Yes

Memory types supported by processor: DDR4-SDRAM, DDR5-SDRAM

Maximum internal memory supported by processor: 128 GB

Tjunction: 100 °C

Maximum internal memory: 128 GB

Graphics output: eDP 1.4b, DP 1.4a, HDMI 2.1

Package type: Box

Performance-core boost frequency: 4.4 GHz

Processor ARK ID: 134586

Memory bandwidth supported by processor (max): 76.8 GB/s

Processor codename: Alder Lake

Processor manufacturer: Intel

Processor cache type: Smart Cache

Performance cores: 6

Bus type: DMI4

Processor threads: 12

Processor family: Intel® Core™ i5

Processor cache: 18 MB

Processor cores: 6

Processor generation: 12th gen Intel® Core™ i5

Processor boost frequency: 4.4 GHz

Box: Yes

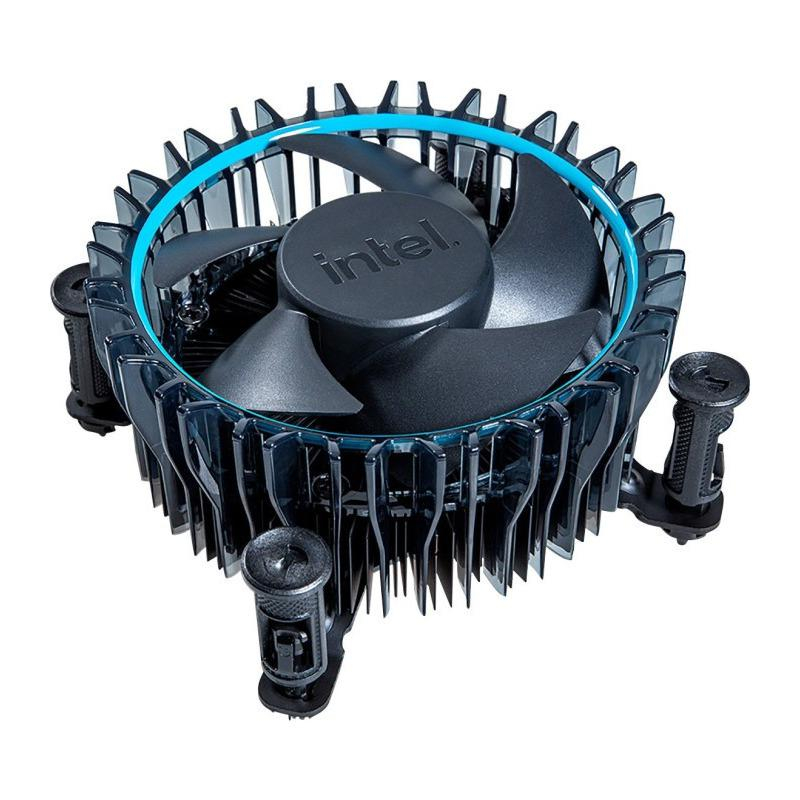

Cooler included: Yes

Maximum number of DMI lanes: 8

Processor model: i5-12400

Maximum turbo power: 117 W

Efficient cores:

Processor socket: LGA 1700

Processor operating modes: 64-bit

Processor base power: 65 W

Performance-core base frequency: 2.5 GHz

Intel® Speed Shift Technology: Yes

Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0: Yes

Intel® Control-flow Enforcement Technology (CET): Yes

Intel® Boot Guard: Yes

Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes

Intel® Volume Management Device (VMD): Yes

Mode-based Execute Control (MBE): Yes

Intel® Standard Manageability (ISM): Yes

Intel® Turbo Boost Technology: 2.0

Intel® Clear Video HD Technology (Intel® CVT HD): Yes

Intel® Hyper Threading Technology (Intel® HT Technology): Yes

Enhanced Intel SpeedStep Technology: Yes

Intel® Quick Sync Video Technology: Yes

Intel® AES New Instructions (Intel® AES-NI): Yes

Intel® Secure Key: Yes

Intel® OS Guard: Yes

Intel 64: Yes

Intel Virtualization Technology for Directed I/O (VT-d): Yes

Intel Virtualization Technology (VT-x): Yes

Intel VT-x with Extended Page Tables (EPT): Yes

Intel® Thread Director: No

Intel Turbo Boost Max Technology 3.0: No

Intel® Optane™ Memory Ready: Yes

Intel® Threat Detection Technology (TDT): Yes

OpenCL version: 2.1

Launch date: Q1'22

Target market: Gaming

Status: Launched

Processor package size: 45 x 37.5 mm

CPU-Socket: 1700

CPU-Cores: 6

CPU-Video: No

Garantia Produsului: 36 luni
