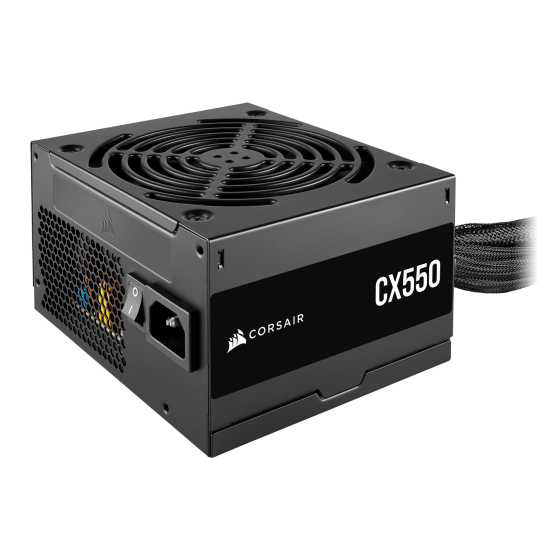

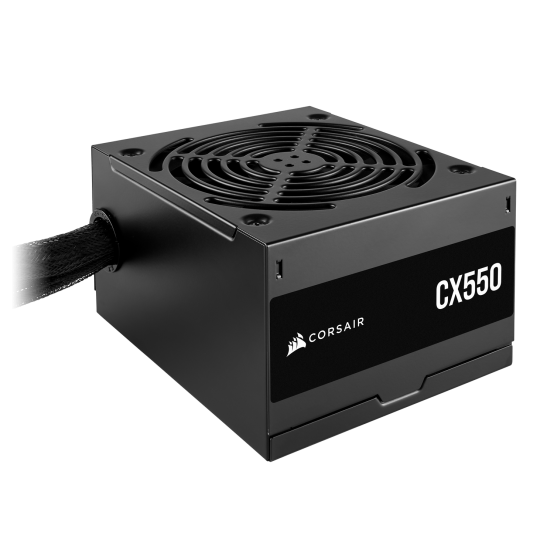

CORSAIR PSU CX550F 550W 80+ Bronze

Number of fans: 1 fan(s)

Fan diameter: 12 cm

Fan location: Top

80 PLUS certification: 80 PLUS Bronze

Purpose: PC

Power supply unit (PSU) form factor: ATX

Cabling type: Non-Modular

EPS power connector (8-pin): Yes

Motherboard power connector: 24-pin ATX

Motherboard power cable length: 60 cm

Number of SATA power connectors: 8

Peripheral (Molex) power connectors (4-pin):

PCI Express power connectors (6+2 pin): 1

Max output current (+5V): 20 A

Input current: 10 - 5 A

Max output current (+3.3V): 24 A

Combined power (+12V): 624 W

Max output current (+12V): 52 A

Efficiency: 80Plus-Bronze

Total power: 550 W

AC input voltage: 100 - 240 V

AC input frequency: 47 - 63 Hz

Combined power (+3.3V): 130 W

Combined power (+5V): 130 W

Combined power (+5Vsb): 15 W

Max output current (-12V): 0.3 A

Max output current (+5Vsb): 3 A

Combined power (-12V): 3.6 W

Depth: 125 mm

Width: 150 mm

Modular: Yes

Garantia Produsului: 120 luni
