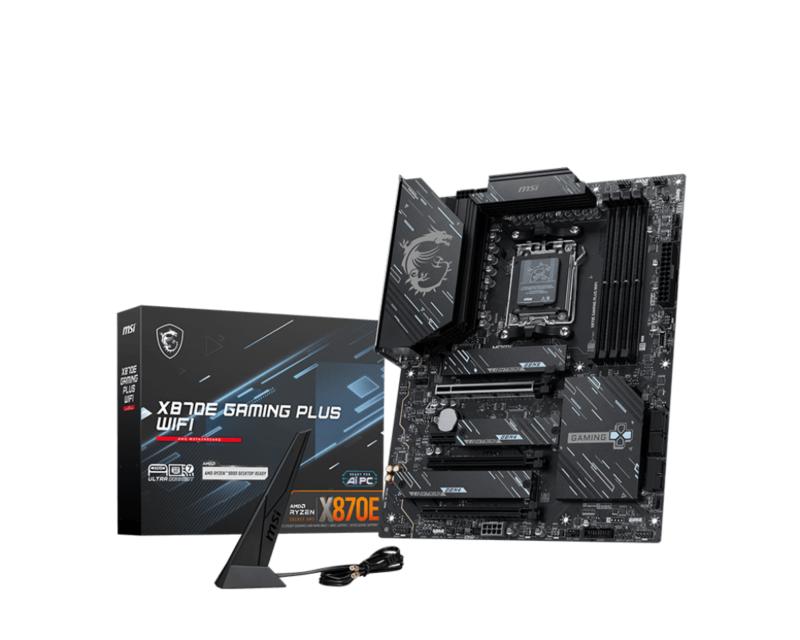

MSI X870E GAMING PLUS WIFI motherboard

MSI X870E GAMING PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive types: HDD, RAID levels: 0, 1, 5, 10. Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E...
Garantie: 24 luni


Specificatii tehnice

PCI Express x1 slots: 1
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 3.x) slots: 3
Motherboard chipset: AMD X870E
Motherboard form factor: ATX
Product colour: Black
Motherboard chipset family: AMD
Component for: PC
Audio output channels: 7.1 channels
On-board graphics card: No
Maximum resolution: 3840 x 2160 pixels
Parallel processing technology support: Not supported
Number of SATA III connectors: 4
Number of SATA II connectors: 0
Number of SATA connectors: 0
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Front panel connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
Number of COM connectors: 1
Number of chassis fan connectors: 6
Chassis intrusion connector: Yes
USB 2.0 connectors: 6
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
Number of water pump connectors: 1
Number of CPU fan connectors: 1
Number of RGB LED pin headers: 3
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
ECC сompatibility: ECC & Non-ECC
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Memory channels: Dual-channel
Ethernet LAN: Yes
Wi-FI: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ethernet interface type: 5 Gigabit Ethernet
Bluetooth version: 5.4
Bluetooth: Yes
mSATA ports quantity: 0
Screws included: Yes
Cables included: SATA
Antenna included: Yes
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor manufacturer: AMD
USB 2.0 ports quantity: 4
HDMI ports quantity: 1
HDMI version: 2.1
Microphone in: Yes
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 1
RAID support: Yes
Supported storage drive types: HDD
RAID levels: 0, 1, 5, 10
Width: 304.8 mm
Depth: 243.8 mm
