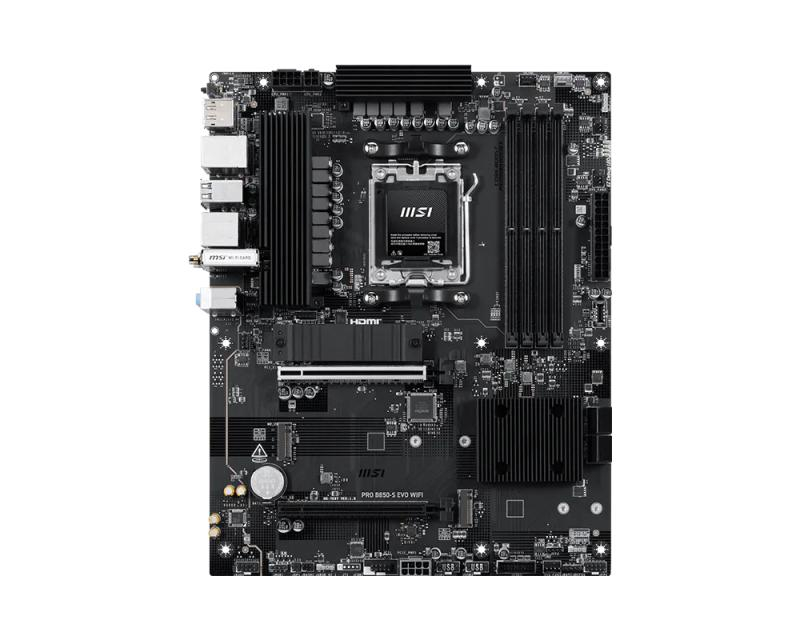

MSI PRO B850-S EVO WIFI motherboard

MSI PRO B850-S EVO WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
Garantie: 24 luni


Specificatii tehnice

BIOS type: UEFI AMI
BIOS memory size: 512 Mbit
ACPI version: 6.5
System Management BIOS (SMBIOS) version: 3.7
1st M.2 largest key size: 2280
3rd M.2 largest key size: 2280
Number of M.2 (M) slots: 3
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x4 (Gen 4.x) slots: 1
Audio Chip: Realtek ALC897
Component for: PC
Audio output channels: 7.1 channels
Motherboard chipset family: AMD
Motherboard form factor: ATX
Motherboard chipset: AMD B850
Product colour: Black
Power source type: ATX
On-board graphics card: No
Parallel processing technology support: Not supported
Number of SATA III connectors: 4
Number of SATA II connectors: 0
Number of SATA connectors: 0
Front panel audio connector: Yes
CPU fan connector: Yes
Audio connector: Yes
Number of CPU fan connectors: 1
USB 2.0 connectors: 4
Total number of SATA connectors: 4
Number of COM connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Chassis intrusion connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Front panel connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
Power fan connector: Yes
Supported memory clock speeds: 8200,5600,4800 MHz
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 8200 MHz
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Memory channels: Dual-channel
Ethernet LAN: Yes
Wi-FI: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Bluetooth version: 5.4
Bluetooth: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Antenna included: Yes
Screws included: Yes
Cables included: SATA
Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 2.0 ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
DisplayPort version: 1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
DVI-D ports quantity: 0
Supported storage drive types: HDD & SSD
Number of HDDs supported: 4
Number of storage drives supported: 7
RAID support: Yes
Supported storage drive interfaces: M.2, SATA
RAID levels: 0, 1, 10
Width: 243.8 mm
Depth: 304.8 mm
