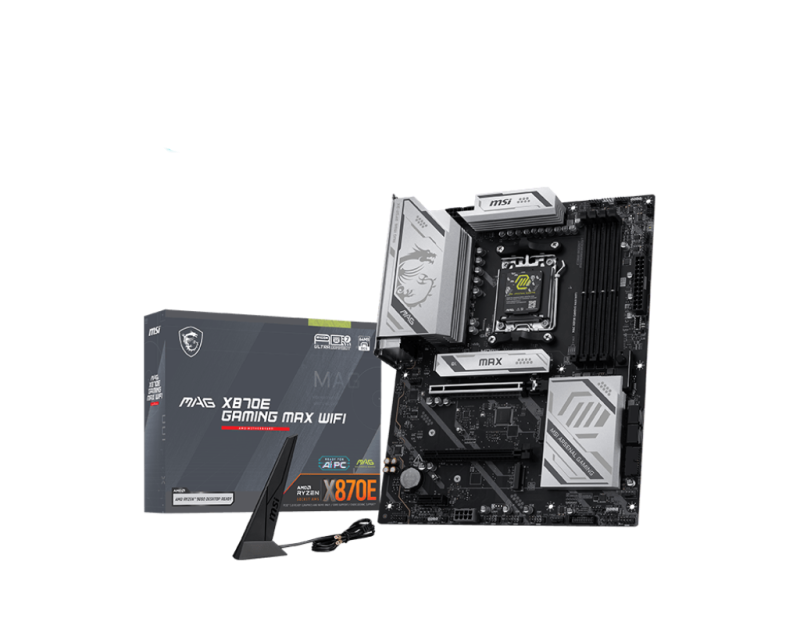

MSI MAG X870E GAMING MAX WIFI

MSI MAG X870E GAMING MAX WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: 5 Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
Garantie: 24 luni


Specificatii tehnice

BIOS type: UEFI AMI
BIOS memory size: 512 Mbit
ACPI version: 6.5
System Management BIOS (SMBIOS) version: 3.7
Number of M.2 (M) slots: 3
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2280
3rd M.2 largest key size: 2280
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
Audio output channels: 7.1 channels
Component for: PC
Motherboard chipset family: AMD
PC health monitoring: CPU, Fan, Temperature, Voltage
Motherboard chipset: AMD X870E
Product colour: Black
Motherboard form factor: ATX
On-board graphics card: No
Number of SATA III connectors: 4
Number of SATA II connectors: 0
Number of SATA connectors: 0
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
USB 2.0 connectors: 6
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
Total number of SATA connectors: 4
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
ECC сompatibility: Non-ECC
Supported memory clock speeds: 4800,5600,6000,6400,8200 MHz
Supported memory clock speed (max): 8200 MHz
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
Ethernet LAN: Yes
Wi-FI: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
LAN controller: Realtek RTL8126
Bluetooth: Yes
Bluetooth version: 5.4
Ethernet interface type: 5 Gigabit Ethernet
mSATA ports quantity: 0
Processor manufacturer: AMD
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Maximum internal memory supported by processor: 256 GB
Microphone in: Yes
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
DisplayPorts quantity: 2
DisplayPort version: 1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
S/PDIF out port: Yes
USB4 Gen 2x2 ports quantity: 1
VGA (D-Sub) ports quantity: 0
DVI-D ports quantity: 0
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
Number of HDDs supported: 4
Number of storage drives supported: 7
Width: 243.8 mm
Depth: 304.8 mm
