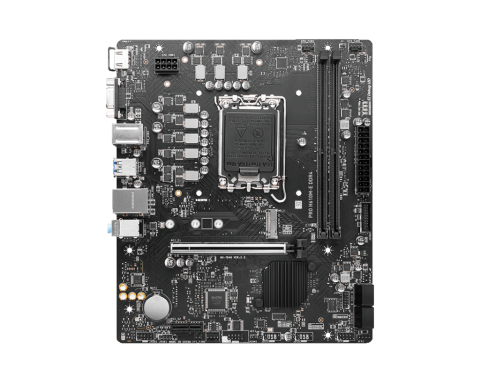

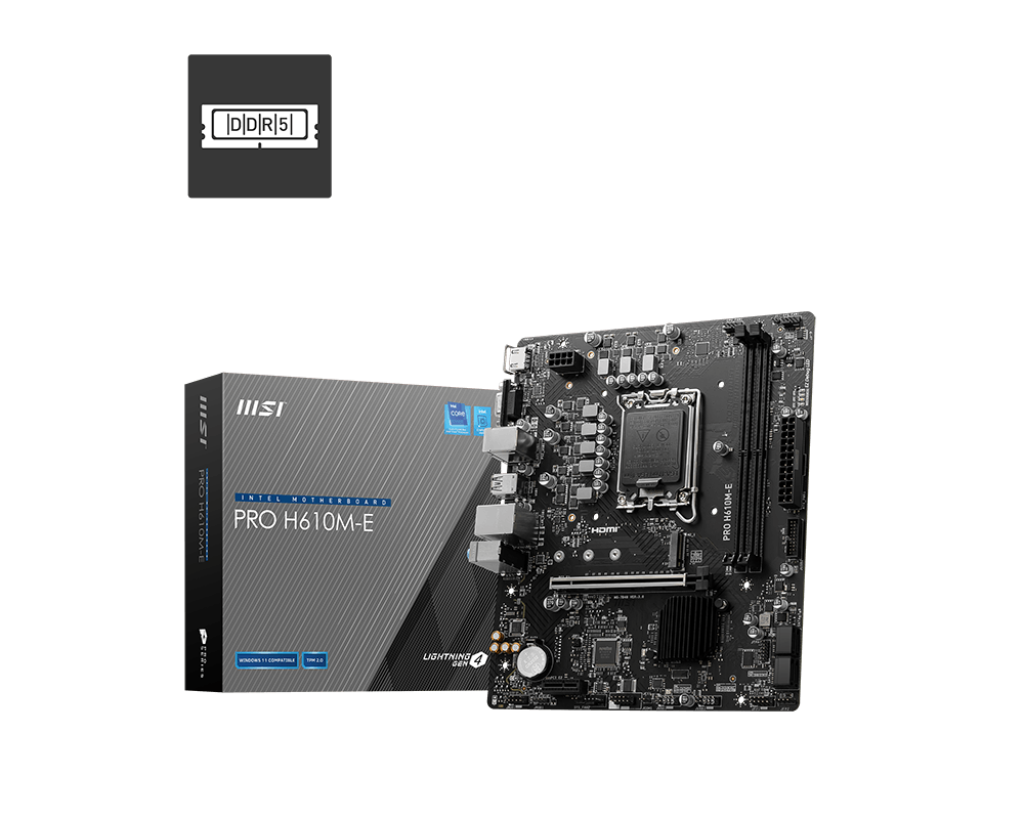

MB MSI PRO H610M-E DDR5 LGA 1700

Placa de baza MSI PRO H610M-E DDR5 LGA1700 2x DDR5, 1x HDMI 1x VGA, 1x PCIE x16 1x PCIE x1, 1x M.2 4x SATA 6gb/s, mATX
Garantie: 36 luni


Specificatii tehnice

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 6.4
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
Audio output channels: 7.1 channels
Component for: PC
Windows operating systems supported: Windows 10, Windows 11
Cooling type: Active
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Motherboard chipset: Intel H610
Power source type: ATX
Number of COM connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 4
Thunderbolt headers: 2
Audio connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
Memory channels: Dual-channel
Maximum internal memory: 96 GB
Supported memory clock speeds: 5600 MHz
Supported memory module capacities: 4GB, 8GB, 16GB, 32GB
ECC сompatibility: Non-ECC
Number of memory slots: 4
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Wi-FI: No
Drivers included: Yes
Cables included: SATA
Processor socket: LGA 1700
Supported processor sockets: LGA 1700
Processor manufacturer: Intel
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
VGA (D-Sub) ports quantity: 1
DVI-D ports quantity: 0
PS/2 ports quantity: 1
Headphone outputs: 2
Microphone in: Yes
Ethernet LAN (RJ-45) ports: 1
Supported storage drive interfaces: M.2, SATA III
RAID levels: 0, 1, 5, 10
RAID support: Yes
Supported storage drive types: HDD & SSD
Width: 200 mm
Depth: 236.2 mm
MB-Socket: 1700
MB-Format: micro-ATX
RAM-Slots: 2
PCI: 0
Serial-or-Paralel: No/No
USB3: 4-8
PCI-Ex1: 1
PCI-Ex16: 1
Onboard-CPU: No
