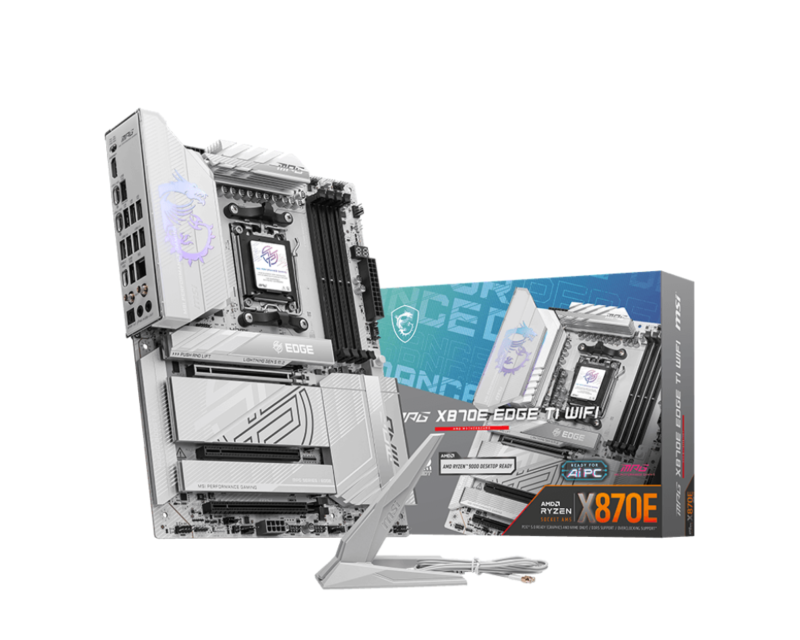

MB MSI MPG X870E EDGE TI WIFI AM5

Placa de Baza MSI MPG X870E EDGE TI WIFI AM5, 4x DDR5, 1x HDMI 2x Type-C DP, 3x PCIE x16, 4x M.2, 4x SATA 6GB/s, ATX
Garantie: 36 luni


Specificatii tehnice

PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
1st M.2 highest PCI Express generation: 5.0
3rd M.2 highest PCI Express generation: 4.0
Number of M.2 (M) slots: 4
2nd M.2 largest key size: 2280
3rd M.2 largest key size: 2280
4th M.2 largest key size: 2280
4th M.2 highest PCI Express generation: 4.0
2nd M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 22110
Motherboard chipset: AMD X870E
Motherboard form factor: ATX
PC health monitoring: CPU, Fan, Temperature, Voltage
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
Component for: PC
Product colour: White
On-board graphics card: No
Number of SATA III connectors: 4
Number of SATA II connectors: 0
Number of SATA connectors: 0
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Total number of SATA connectors: 4
USB 2.0 connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 8400 MHz
Supported memory clock speeds: 4800,5600,8400 MHz
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
Ethernet LAN: Yes
Wi-FI: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ethernet interface type: 5 Gigabit Ethernet
Bluetooth version: 5.4
LAN controller: Realtek RTL8126
mSATA ports quantity: 0
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Maximum internal memory supported by processor: 256 GB
Processor manufacturer: AMD
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
DisplayPort version: 1.4
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5
S/PDIF out port: Yes
USB4 Gen 2x2 ports quantity: 1
VGA (D-Sub) ports quantity: 0
DVI-D ports quantity: 0
Microphone in: Yes
Number of storage drives supported: 8
RAID support: Yes
Number of HDDs supported: 4
RAID levels: 0, 1, 5, 10
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Width: 243.8 mm
Depth: 304.8 mm
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
