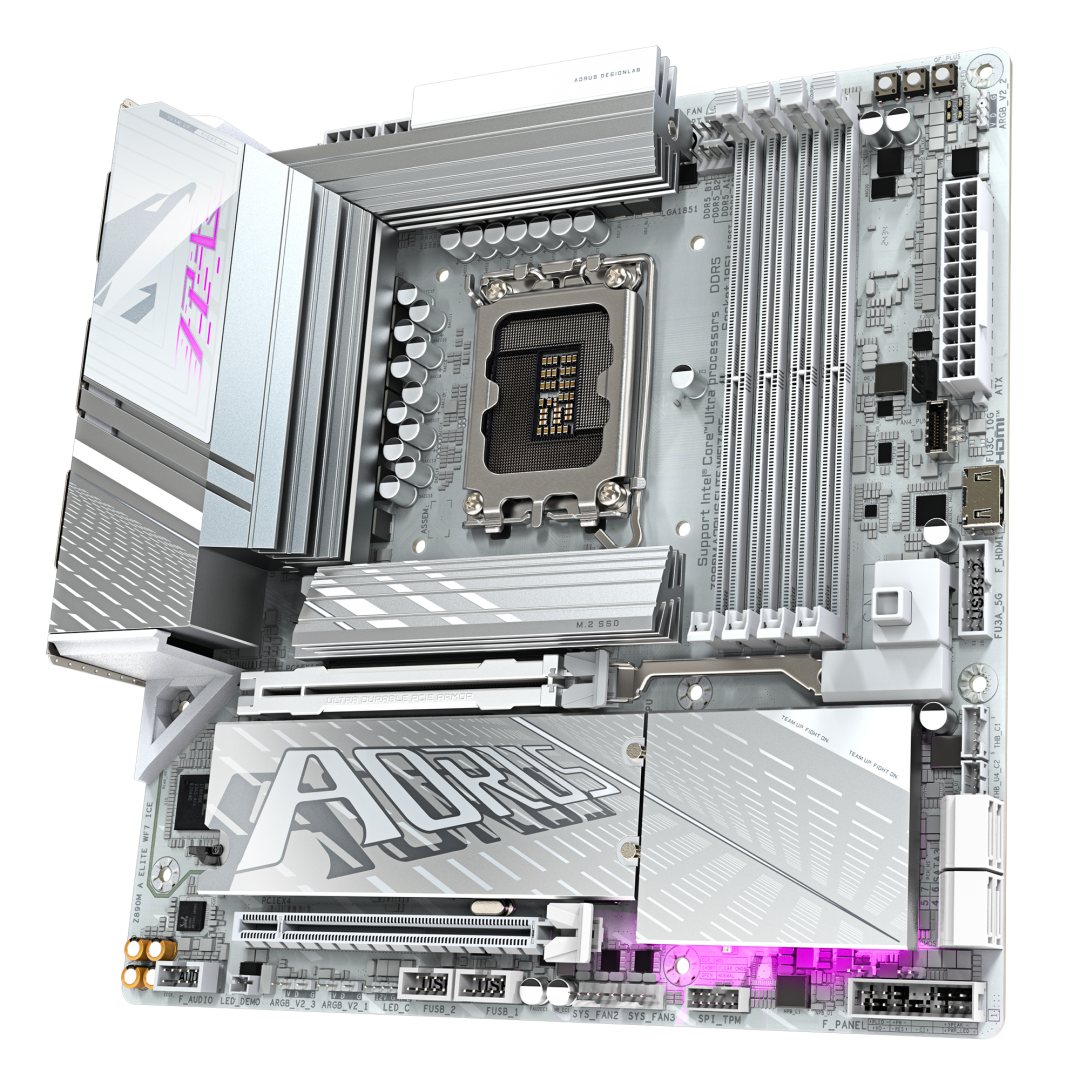

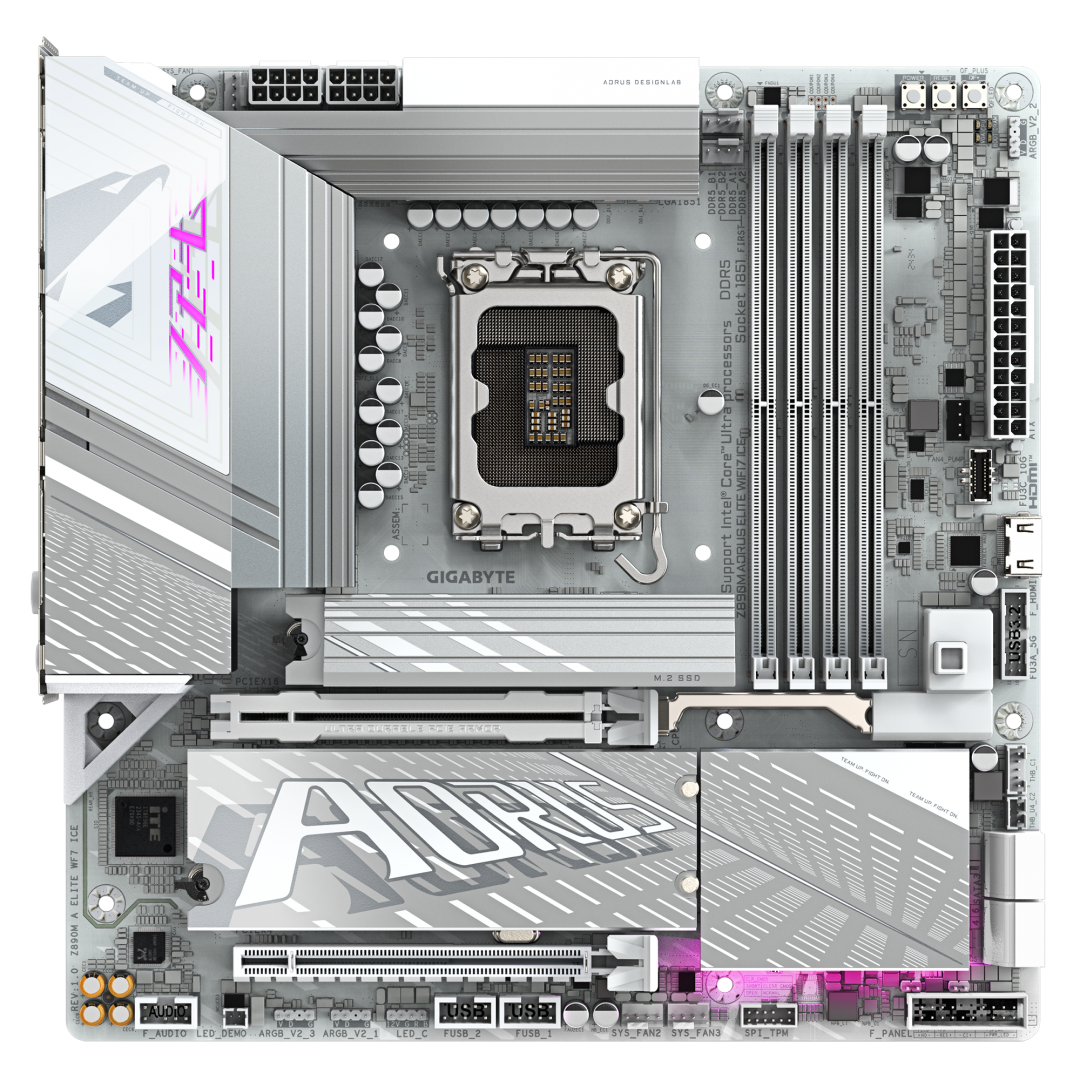

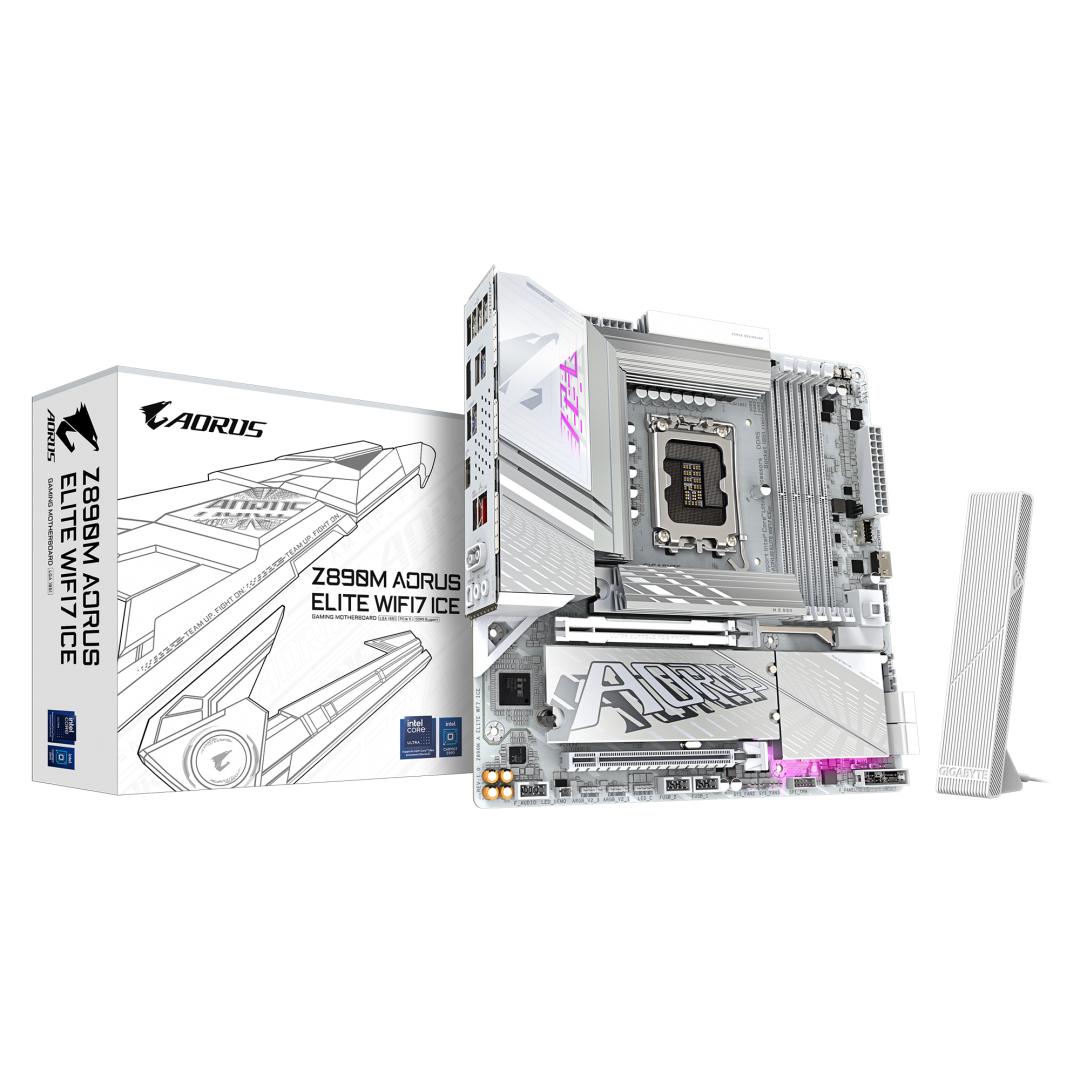

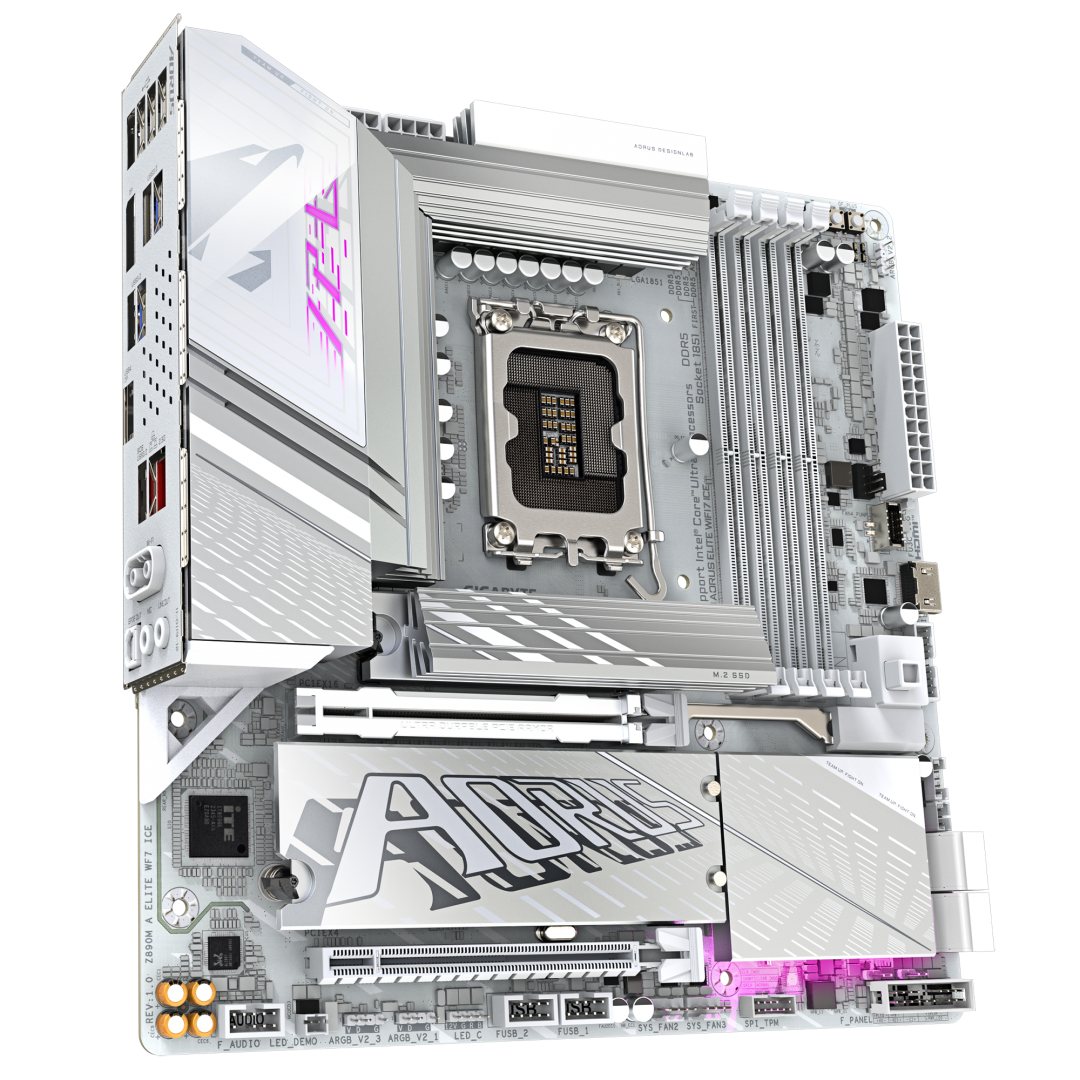

MB GIGABYTE Z890M A ELITE WIFI7 ICE

Placa de Baza GIGABYTE Z890M AORUS ELITE WIFI7 ICE LGA1851, 4x DDR5, 1x USB5 1x DP 1x front HDMI, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 3x M.2, 4x SATA 6GB/s, mATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Clear CMOS button: Yes
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
Number of M.2 (M) slots: 3
Motherboard form factor: ATX
Motherboard chipset family: Intel
Motherboard chipset: Intel Z890
PC health monitoring: Fan, Temperature, Voltage
Component for: PC
Audio output channels: 7.1 channels
Product colour: White
DirectX version: 12.0
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
EPS power connector (8-pin): Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
TPM connector: Yes
RGB LED pin header: Yes
Total number of SATA connectors: 4
12V power connector: Yes
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
Supported memory clock speed (max): 8800 MHz
Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Supported memory clock speeds: 5600,5800,6000,6200,6600,6800,7200,7400,7600,7800,7900,7950,8000,8200,8400,8600 MHz
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
Ethernet LAN: Yes

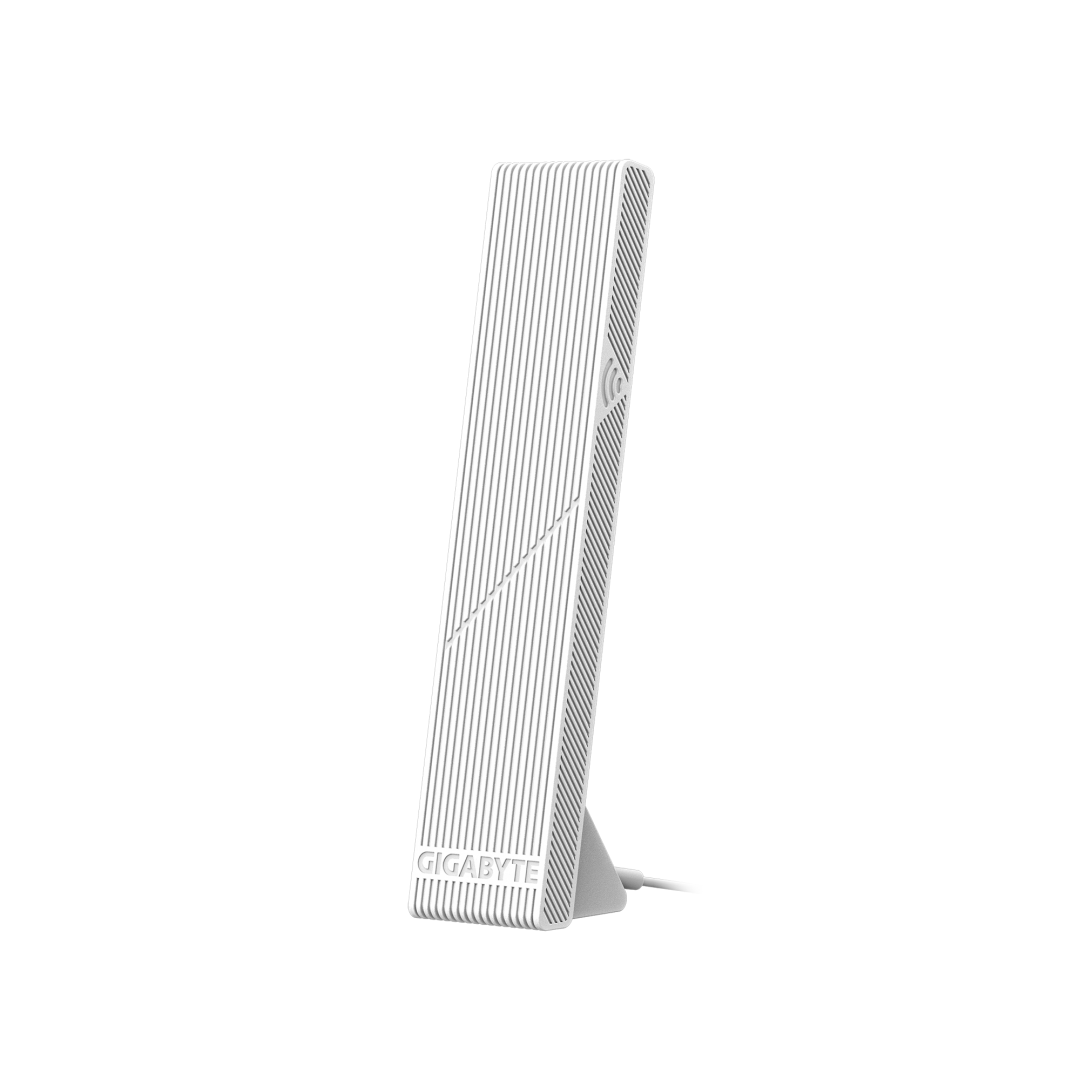

Wi-FI: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ethernet interface type: 2.5 Gigabit Ethernet
WLAN controller model: MediaTek MT7925
Bluetooth: Yes
Wi-Fi standards: Wi-Fi 7 (802.11be)
Bluetooth version: 5.4
Weight: 1.55 kg
Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software
Batteries included: Yes
Package width: 270 mm
Package depth: 268 mm
Package weight: 1.75 kg
Package height: 68 mm
Maximum internal memory supported by processor: 256 GB
Compatible processor series: Intel Core Ultra (Series 2)
Processor socket: LGA 1851 (Socket V1)
Supported processor sockets: LGA 1851
Processor manufacturer: Intel

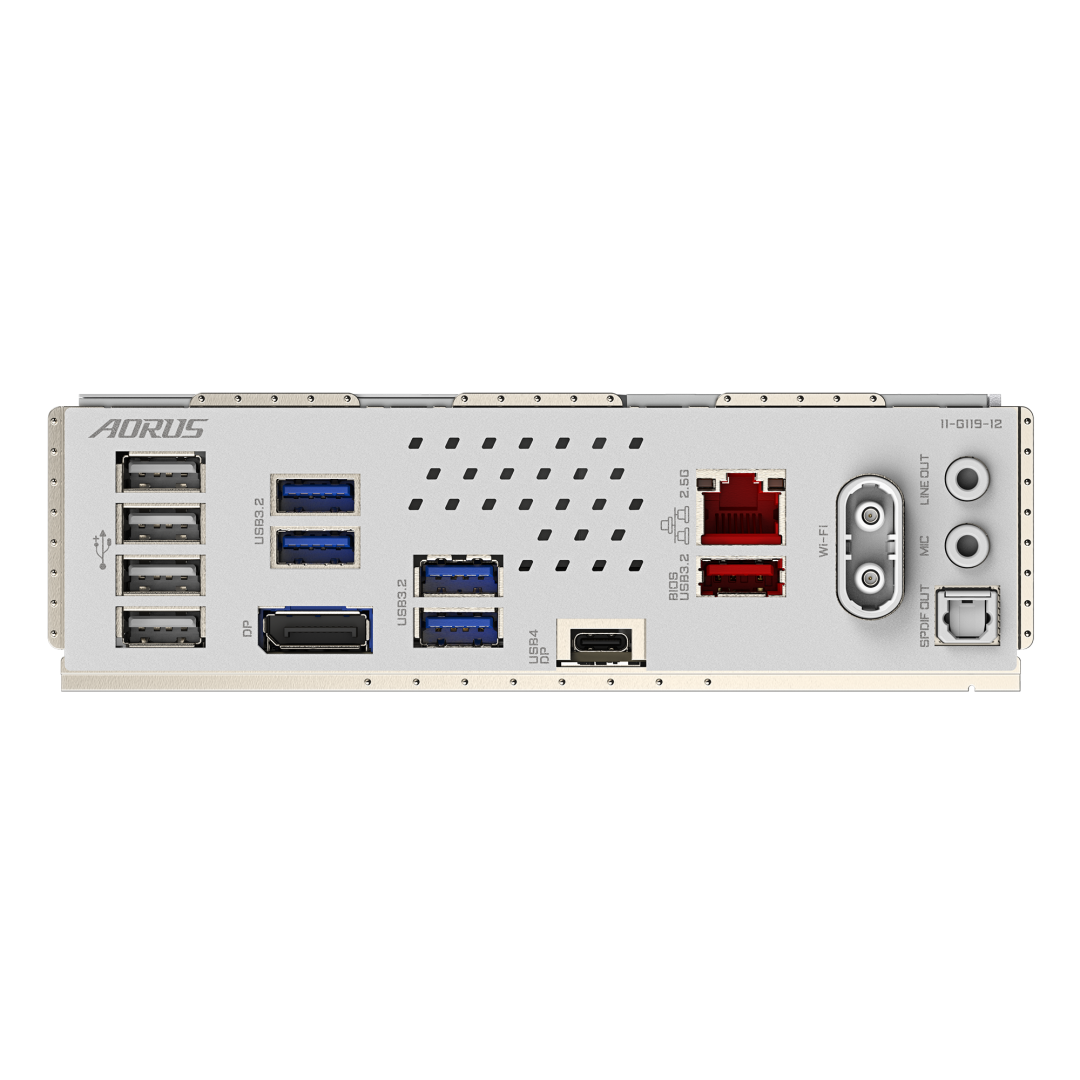

HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
DisplayPorts quantity: 2
S/PDIF out port: Yes
VGA (D-Sub) ports quantity: 0
DVI-D ports quantity: 0
Thunderbolt ports quantity: 1
Microphone in: Yes
Ethernet LAN (RJ-45) ports: 1
Number of storage drives supported: 4
Number of HDDs supported: 7
RAID levels: 0, 1, 5, 10
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Warranty period: 3 year(s)
Height: 35 mm
Width: 244 mm
Depth: 24.4 mm
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: Yes/No
