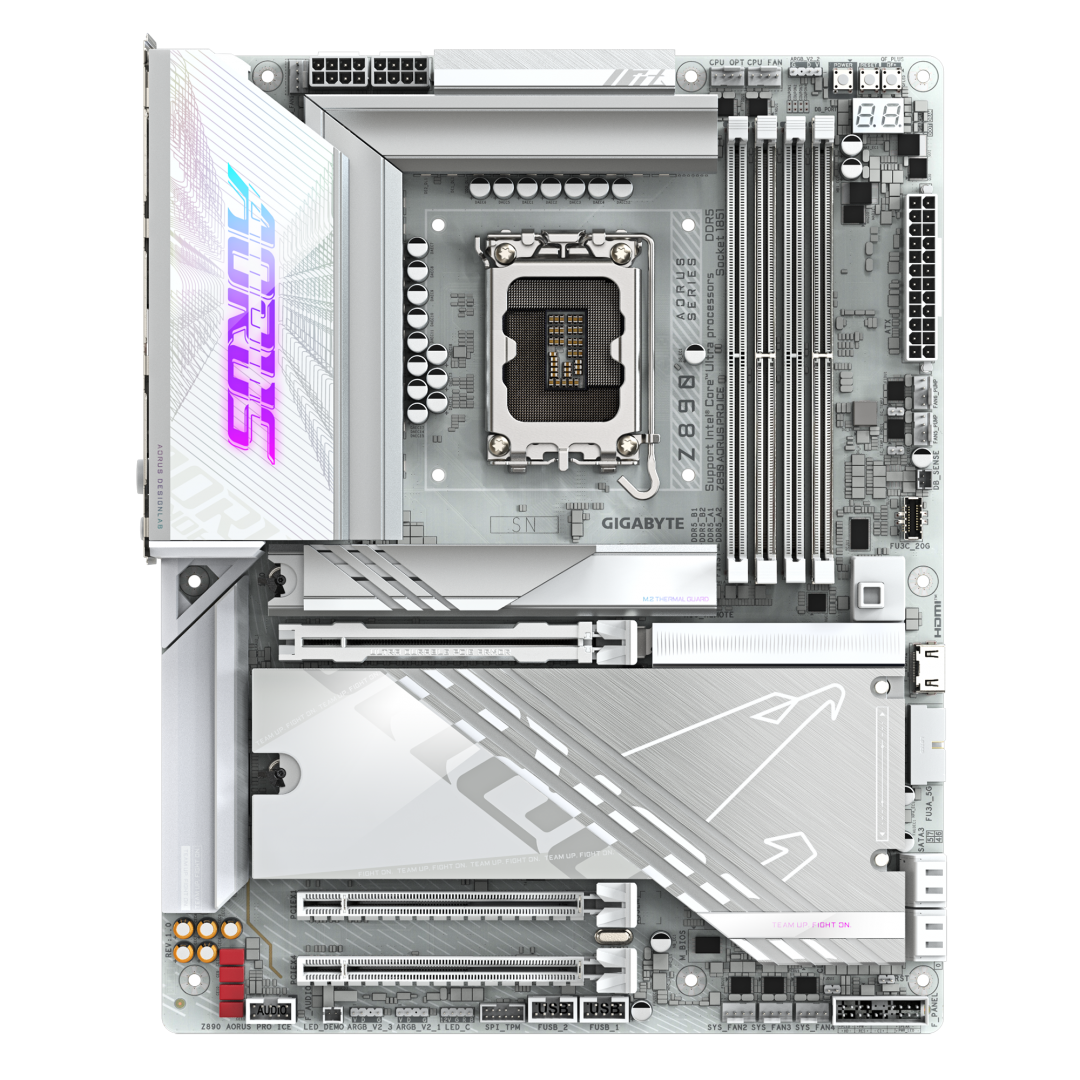

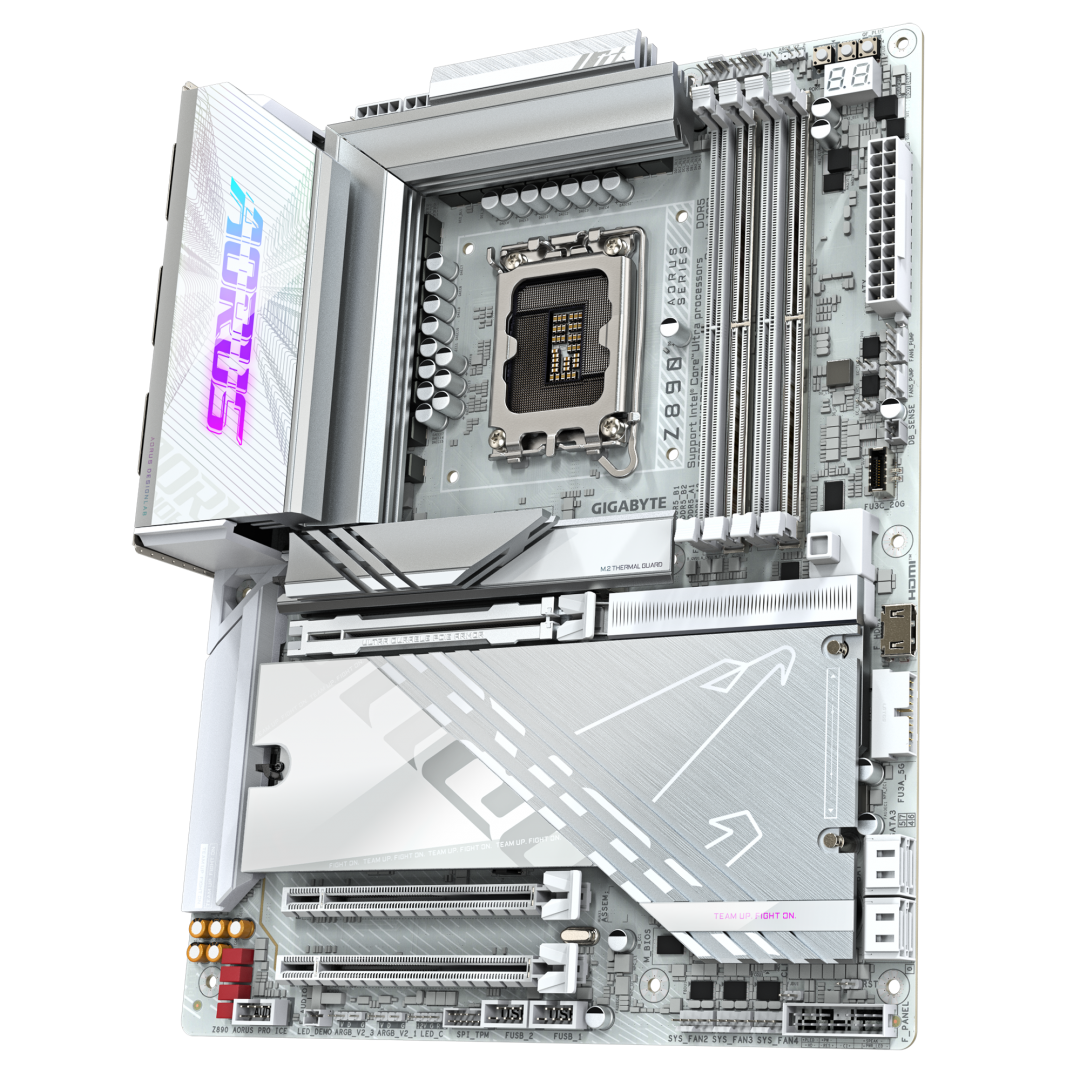

MB GIGABYTE Z890 AORUS PRO ICE

Placa de Baza GIGABYTE Z890 AORUS PRO ICE LGA1851, 4x DDR5, 2x Intel Thunderbolt 1x HDMI, 3x PCIE x16, 5x M.2, 4x SATA III, ATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Clear CMOS button: Yes
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 2
Number of M.2 (M) slots: 5
Motherboard chipset: Intel Z890
PC health monitoring: Fan, Temperature, Voltage
Audio Chip: Realtek ALC1220
Motherboard form factor: ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 11 x64
Audio output channels: 7.1 channels
Component for: PC
On-board graphics card: No
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Number of SATA II connectors: 0
Number of SATA connectors: 0
ATX Power connector (24-pin): Yes
EPS power connector (8-pin): Yes
Number of EPS power connectors (8-pin): 2
TPM connector: Yes
RGB LED pin header: Yes
USB 3.2 Gen 2x2 connectors: 1
Total number of SATA connectors: 4
12V power connector: Yes
Country of origin: China
Supported memory clock speed (max): 9500 MHz
Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
ECC сompatibility: Non-ECC
Number of memory slots: 4
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ethernet interface type: 5 Gigabit Ethernet
Wi-Fi standards: Wi-Fi 7 (802.11be)
Bluetooth version: 5.4
Weight: 2.27 kg
mSATA ports quantity: 0
Bundled software: Norton® Internet Security (OEM version)nLAN bandwidth management software
Package width: 335 mm
Package depth: 270 mm
Package weight: 2.55 kg
Maximum internal memory supported by processor: 256 GB
Compatible processor series: Intel Core Ultra (Series 2)
Processor socket: LGA 1851 (Socket V1)
Supported processor sockets: LGA 1851
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Thunderbolt ports quantity: 2
DisplayPorts quantity: 2
VGA (D-Sub) ports quantity: 0
S/PDIF out port: Yes
Microphone in: Yes
Number of storage drives supported: 4
Number of HDDs supported: 9
RAID support: Yes
Supported storage drive types: HDD & SSD
RAID levels: 0, 1, 5, 10
Supported storage drive interfaces: M.2, SATA III
Height: 35 mm
Width: 30.5 mm
Depth: 24.4 mm
PCI: 0
Serial-or-Paralel: Yes/No
Onboard-CPU: No
