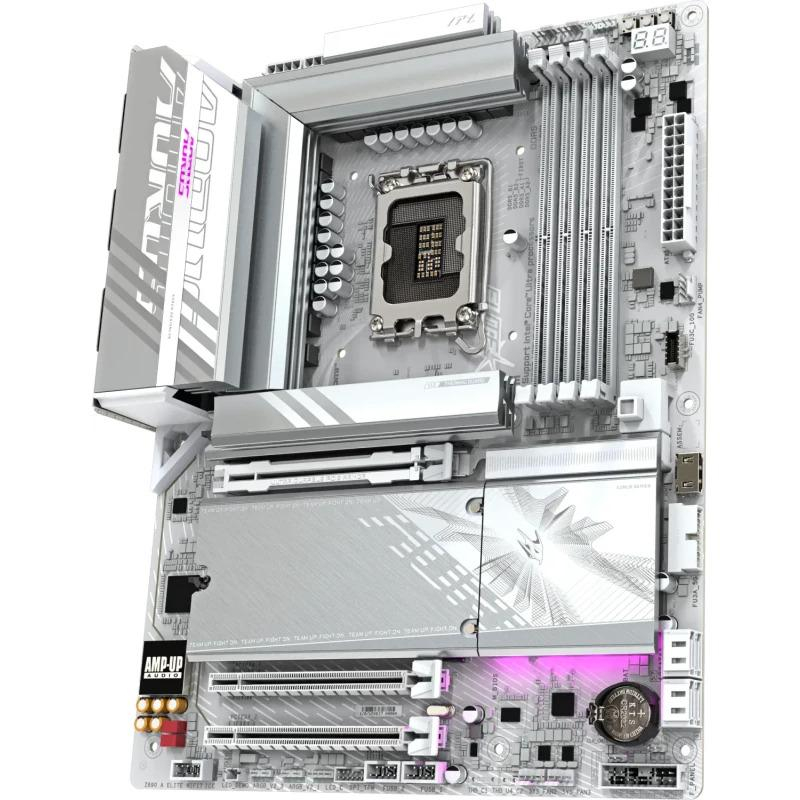

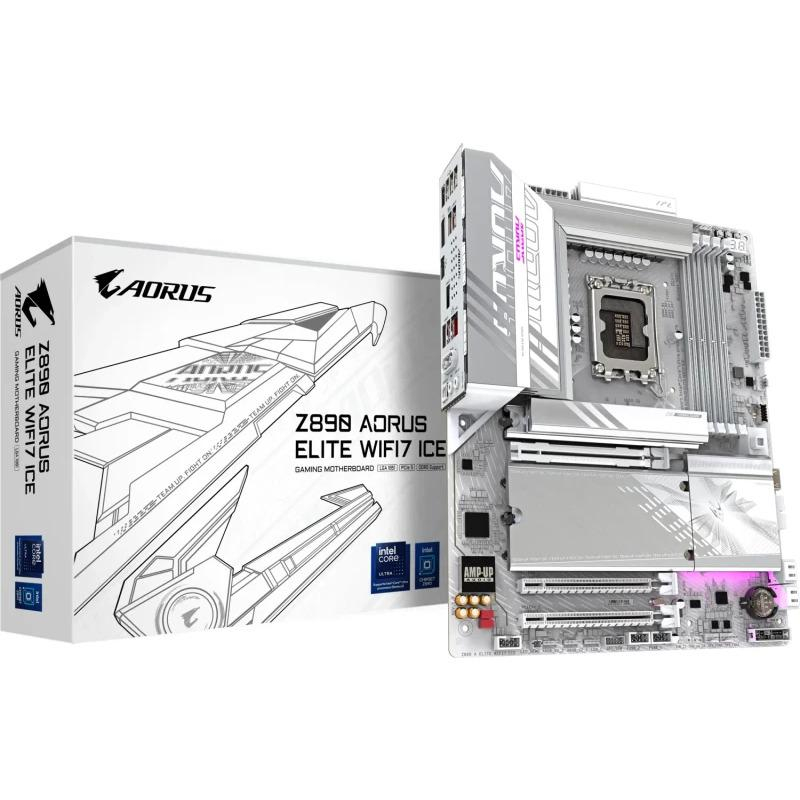

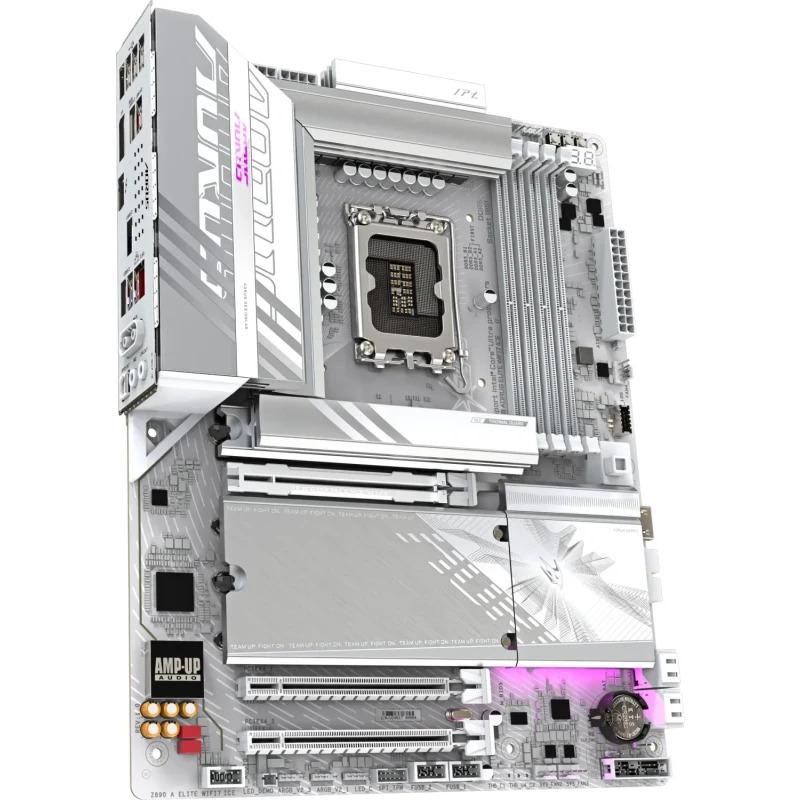

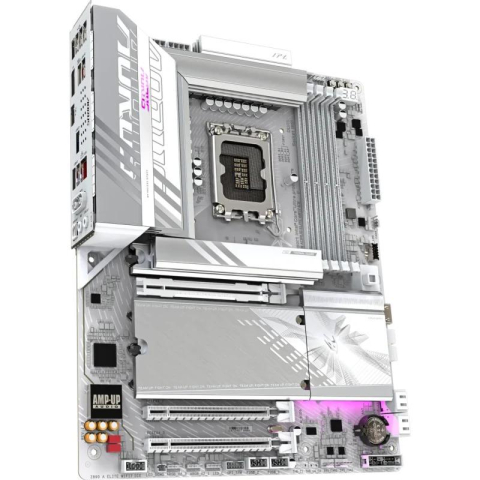

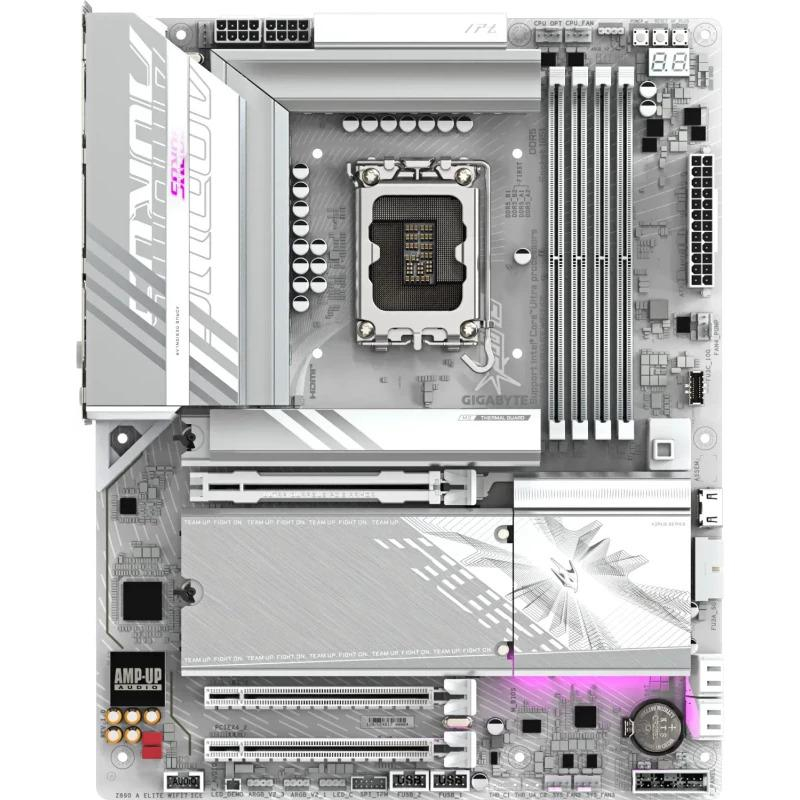

MB GIGABYTE Z890 A ELITE WF7 ICE

Placa de Baza GIGABYTE Z890 AORUS ELITE WIFI7 ICE LGA1851, 4x DDR5, 1x PCIE 5.0 x16 2x PCIE 4.0 x16, 1x DP, 4x M.2, 4x SATA III, ATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Clear CMOS button: Yes
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
PCI Express x16 (Gen 4.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 4
PC health monitoring: Fan, Temperature, Voltage
Motherboard form factor: ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 11 x64
Motherboard chipset: Intel Z890
Audio Chip: Realtek ALC1220
Product colour: Black
Audio output channels: 7.1 channels
Component for: PC
On-board graphics card: No
DirectX version: 12.0
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Number of SATA II connectors: 0
Number of SATA connectors: 0
ATX Power connector (24-pin): Yes
EPS power connector (8-pin): Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of EPS power connectors (8-pin): 2
TPM connector: Yes
RGB LED pin header: Yes
Total number of SATA connectors: 4
12V power connector: Yes
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
ECC сompatibility: Non-ECC
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
Supported memory clock speeds: 5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600 MHz
Supported memory clock speed (max): 8800 MHz
Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
Ethernet LAN: Yes
Wi-FI: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
WLAN controller model: MediaTek MT7925
Bluetooth: Yes
Wi-Fi standards: Wi-Fi 7 (802.11be)
Bluetooth version: 5.4
Ethernet interface type: 2.5 Gigabit Ethernet
mSATA ports quantity: 0
Weight: 2.87 kg
Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software
Batteries included: Yes
Package weight: 31.5 kg
Package width: 335 mm
Package depth: 270 mm
Package height: 80 mm
Compatible processor series: Intel Core Ultra (Series 2)
Maximum internal memory supported by processor: 256 GB
Processor socket: LGA 1851 (Socket V1)
Supported processor sockets: LGA 1851
Processor manufacturer: Intel

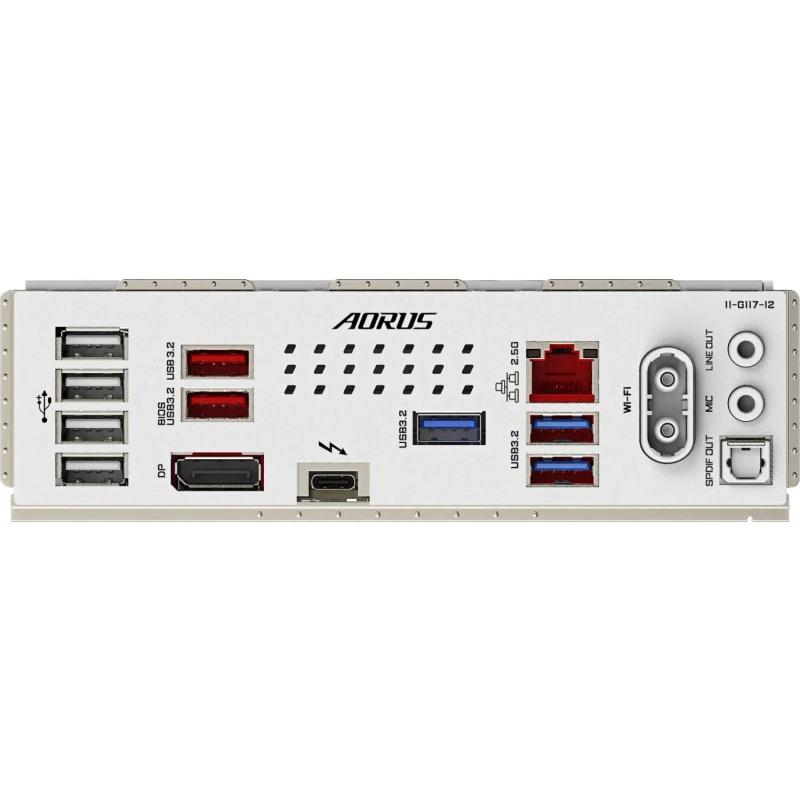

HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
DisplayPorts quantity: 2
VGA (D-Sub) ports quantity: 0
DVI-D ports quantity: 0
S/PDIF out port: Yes
Microphone in: Yes
Ethernet LAN (RJ-45) ports: 1
Thunderbolt ports quantity: 1
Number of HDDs supported: 8
Number of storage drives supported: 4
RAID levels: 0, 1, 5, 10
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
Warranty period: 3 year(s)
Width: 30.5 mm
Depth: 24.4 mm
Height: 35 mm
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: Yes/No
