MB GIGABYTE X870I AORUS PRO ICE

Placa de Baza GIGABYTE X870I AORUS PRO ICE AM5, 2x DDR5, 1x USB4 1x HDMI, 1x PCIE x16, 2x M.2, 2x SATA 6GB/s, mini-ITX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
1st M.2 highest PCI Express generation: 5.0
2nd M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 2
1st M.2 largest key size: 2280
2nd M.2 largest key size: 2280
Motherboard chipset: AMD X870
Motherboard form factor: Micro ITX
Product colour: White
Power source type: ATX
Audio output channels: 7.1 channels
Component for: PC
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Windows operating systems supported: Windows 11 x64
Motherboard chipset family: AMD
Audio Chip: Realtek ALC4080
DirectX version: 12.0
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes
Parallel processing technology support: Not supported
Number of SATA III connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Front panel connector: Yes
Number of CPU fan connectors: 2
TPM connector: Yes
RGB LED pin header: Yes
Chassis intrusion connector: Yes
Number of water pump connectors: 1
Number of RGB LED pin headers: 3
USB 2.0 connectors: 1
Number of chassis fan connectors: 1
Number of EPS power connectors (8-pin): 1
Country of origin: Taiwan
Products per shipping (inner) case: 1 pc(s)
Supported memory clock speeds: 6400,6200,6000,5600,5200,4800,4400 MHz
Supported memory clock speed (max): 8400 MHz
ECC сompatibility: Non-ECC
Supported memory types: DDR5-SDRAM
Maximum internal memory per slot: 64 GB
Memory slots type: DIMM
Unbuffered memory: Yes
Number of memory slots: 2
Memory channels: Dual-channel
Maximum internal memory: 128 GB
Ethernet LAN: Yes
Wi-FI: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125
WLAN controller model: Realtek RTL8922AE
Bluetooth: Yes
Bluetooth version: 5.4
Weight: 1.2 kg
Batteries included: Yes
Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software

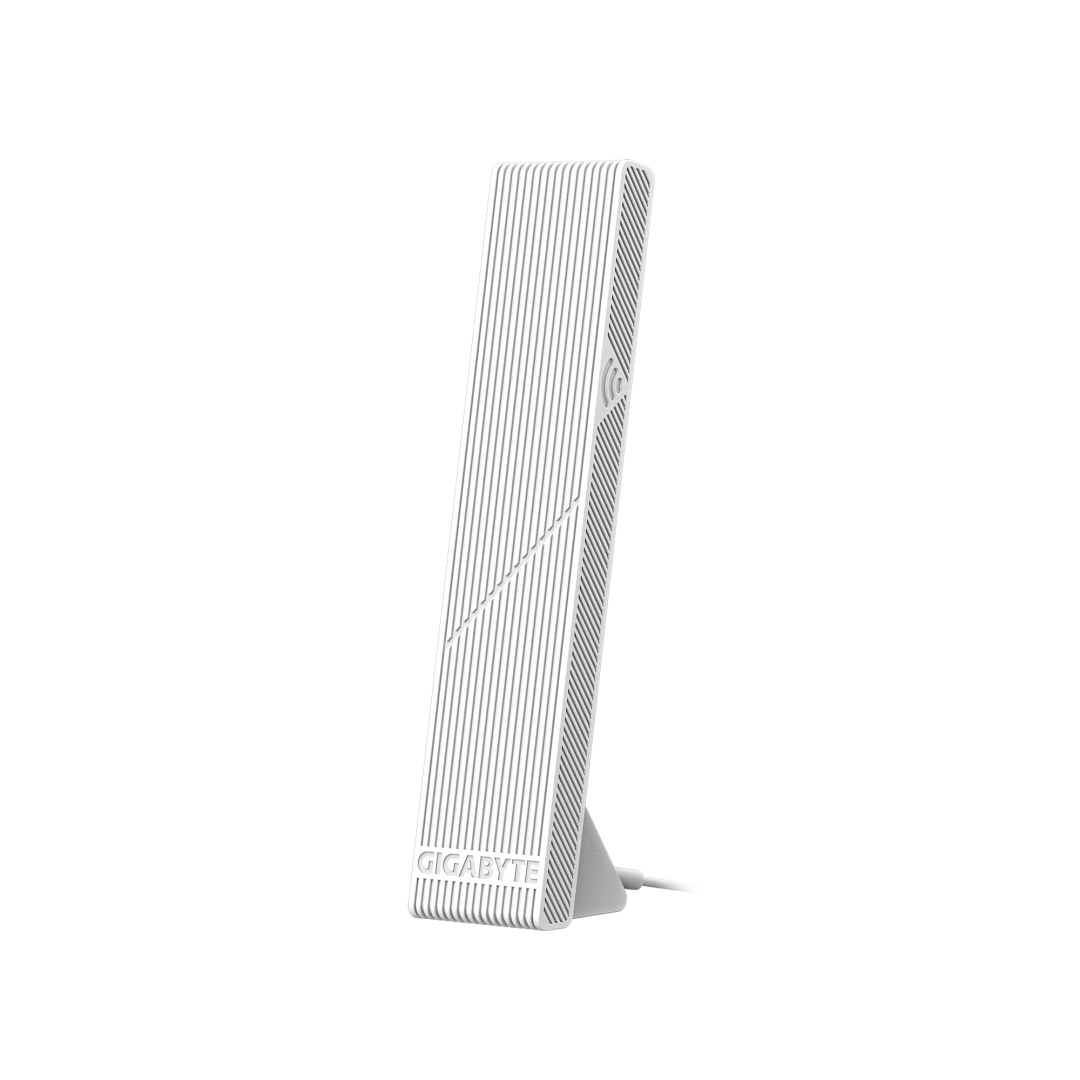

Antenna included: Yes
Screws included: Yes
Package height: 95 mm
Package width: 235 mm
Package depth: 227 mm
Package weight: 1.28 kg
Processor manufacturer: AMD
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
PS/2 ports quantity: 1
WiFi-AP antenna jack: 2
USB 2.0 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPort version: 1.4
VGA (D-Sub) ports quantity: 0
DVI-D ports quantity: 0
USB4 Gen 2x2 ports quantity: 1
Line-in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 1
Number of HDDs supported: 2
Number of storage drives supported: 4
Supported storage drive types: HDD & SSD
RAID support: Yes
RAID levels: 0, 1
Supported storage drive interfaces: M.2, SATA III
Warranty period: 3 year(s)
Width: 170 mm
Height: 35 mm
Depth: 170 mm
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: Yes/No
