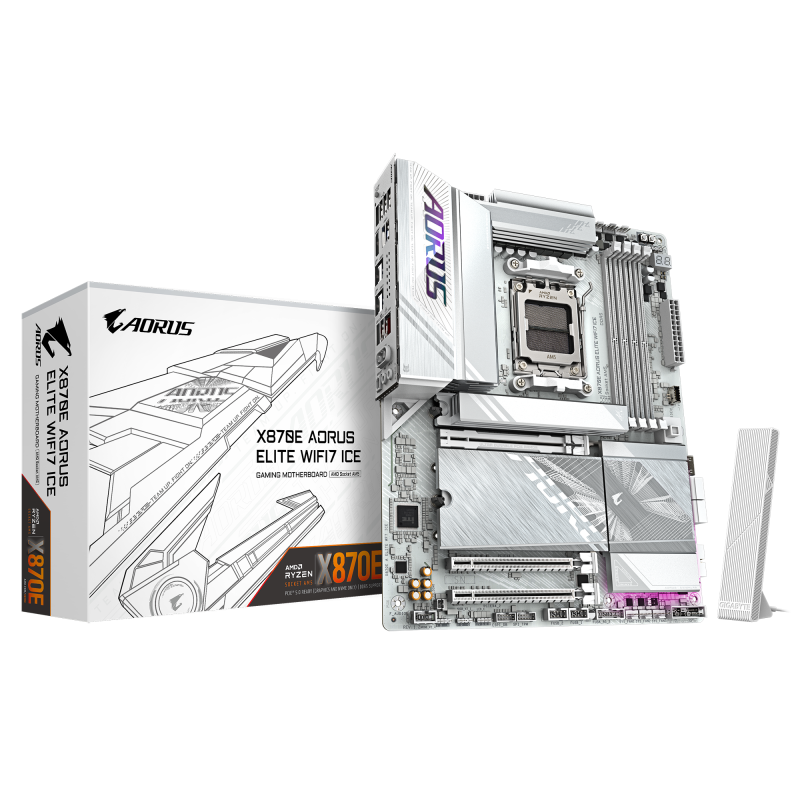

MB GIGABYTE X870E AORUS ELITE WIFI7 ICE

Placa de Baza GIGABYTE X870E AORUS ELITE WIFI7 ICE AM5, 4x DDR5, 2x USB4 1x HDMI 1x front HDMI, 1x PCIE 5.0 x16 1x PCIE 4.0 x16 1x PCIE 3.0 x16, 4x M.2, 4x SATA 6GB/s, ATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
1st M.2 largest key size: 25110
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 22110
3rd M.2 largest key size: 22110
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 4
4th M.2 highest PCI Express generation: 4.0
2nd M.2 highest PCI Express generation: 5.0
3rd M.2 highest PCI Express generation: 5.0
4th M.2 largest key size: 22110
Audio Chip: Realtek ALC1220-VB
Motherboard chipset: AMD X870E
Product colour: White
Motherboard form factor: ATX
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Windows operating systems supported: Windows 11 x64
Power source type: ATX
Cooling type: Passive
Audio output channels: 7.1 channels
Component for: PC
Motherboard chipset family: AMD
Parallel processing technology support: Not supported
DirectX version: 12.0
Maximum resolution: 4096 x 2160 pixels
On-board graphics card: No
HDCP: Yes
Front panel connector: Yes
Number of CPU fan connectors: 2
Number of chassis fan connectors: 4
Number of EPS power connectors (8-pin): 2
TPM connector: Yes
Number of water pump connectors: 2
RGB LED pin header: Yes
Number of RGB LED pin headers: 4
USB 2.0 connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Number of SATA II connectors: 0
Number of SATA connectors: 0
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
USB 3.2 Gen 2x2 connectors: 1
12V power connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Products per shipping (inner) case: 1 pc(s)
Supported memory clock speed (max): 8200 MHz
ECC сompatibility: Non-ECC
Supported memory clock speeds: 8200,8000,7800,7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
Maximum internal memory per slot: 64 GB
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Memory channels: Dual-channel
Ethernet LAN: Yes
Wi-FI: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125
WLAN controller model: Realtek RTL8922AE
Bluetooth: Yes
Wi-Fi standards: Wi-Fi 7 (802.11be)
Bluetooth version: 5.4
Weight: 2.64 kg
mSATA ports quantity: 0
Screws included: Yes
Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software
Batteries included: Yes
Antenna included: Yes
Package width: 34.5 mm
Package depth: 294 mm
Package weight: 2.64 kg
Package height: 80 mm
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor manufacturer: AMD
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
DisplayPort version: 1.4
HDMI ports quantity: 1
HDMI version: 2.1
Digital audio optical out: 1
VGA (D-Sub) ports quantity: 0
DVI-D ports quantity: 0
S/PDIF out port: Yes
WiFi-AP antenna jack: 2
USB4 Gen 2x2 ports quantity: 2
Microphone in: Yes
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 1
Supported storage drive interfaces: M.2, PCI Express 5.0, SATA III
Number of storage drives supported: 8
RAID support: Yes
Number of HDDs supported: 4
RAID levels: 0, 1, 5, 10
Supported storage drive types: HDD & SSD
Warranty period: 3 year(s)
Depth: 24.4 mm
Width: 30.5 mm
Height: 35 mm
MB-Format: ATX
PCI-Ex1: 0
PCI-Ex16: 3
RAM-Slots: 4
MB-Socket: AM5
USB3: 4-8
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
