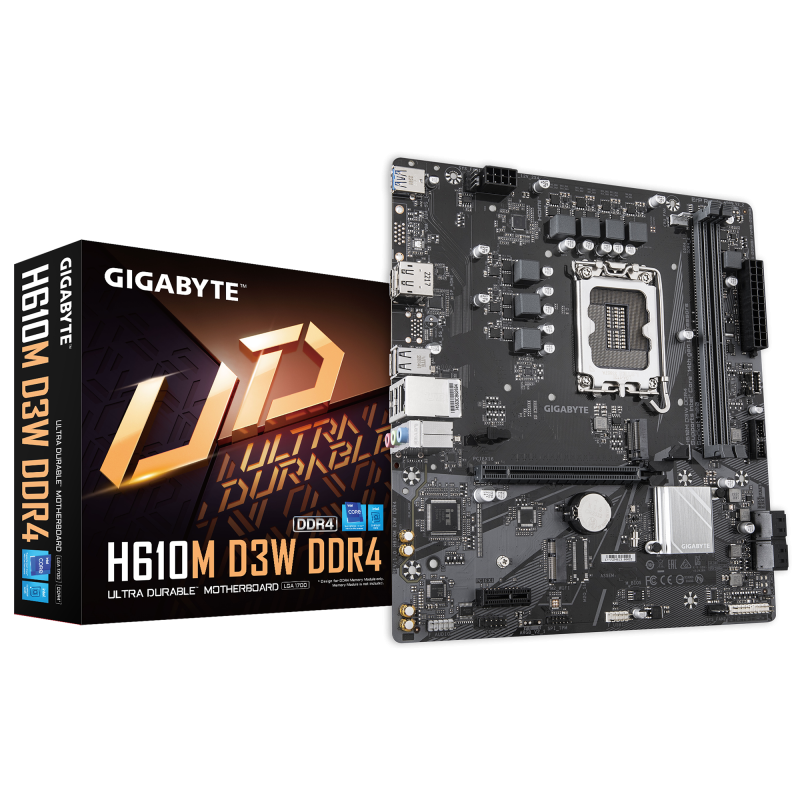

MB GIGABYTE H610M D3W LGA1700 DDR4

Serial-or-Paralel: No/No

Serial-or-Paralel: No/No

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

BIOS memory size: 128 Mbit

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

1st M.2 largest key size: 2280

PCI Express x1 (Gen 3.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 1

1st M.2 highest PCI Express generation: 3.0

Motherboard chipset: Intel H610

Motherboard form factor: micro ATX

Power source type: ATX

Audio output channels: 7.1 channels

Component for: PC

Windows operating systems supported: Windows 10, Windows 11

Motherboard chipset family: Intel

PC health monitoring: Fan, Temperature, Voltage, Water cooling

Audio Chip: Realtek ALC897

Parallel processing technology support: Not supported

DirectX version: 12.0

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

Number of chassis fan connectors: 2

EPS power connector (8-pin): Yes

Front panel connector: Yes

TPM connector: Yes

USB 2.0 connectors: 1

Number of CPU fan connectors: 1

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Serial port headers: 1

Number of EPS power connectors (8-pin): 1

Country of origin: China

Products per shipping (inner) case: 1 pc(s)

Supported memory clock speed (max): 3200 MHz

Maximum internal memory per slot: 32 GB

Supported memory clock speeds: 2133,2400,2666,2933,3000,3200 MHz

ECC сompatibility: ECC & Non-ECC

Memory slots type: DIMM

Unbuffered memory: Yes

Supported memory types: DDR4-SDRAM

Memory channels: Dual-channel

Maximum internal memory: 64 GB

Number of memory slots: 2

Ethernet LAN: Yes

Ethernet interface type: Gigabit Ethernet

Wi-FI: No

LAN controller: Realtek RTL8111H

Weight: 770 g

Bundled software: Norton® Internet Security (OEM version)nLAN bandwidth management software

Batteries included: Yes

Screws included: Yes

Package height: 54 mm

Package width: 265 mm

Package depth: 265 mm

Package weight: 800 g

Warranty period: 3 year(s)

DisplayPorts quantity: 1

DVI-D ports quantity:

DisplayPort version: 1.2

USB 2.0 ports quantity: 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

HDMI version: 2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

HDMI ports quantity: 1

Processor manufacturer: Intel

Processor socket: LGA 1700

Supported processor sockets: LGA 1700

VGA (D-Sub) ports quantity: 0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

Line-in: Yes

Microphone in: Yes

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

Number of storage drives supported: 5

Number of HDDs supported: 4

Height: 35 mm

Width: 244 mm

Depth: 220 mm

MB-Socket: 1700

MB-Format: micro-ATX

RAM-Slots: 2

USB3: 4-8

PCI-Ex1: 1

PCI-Ex16: 1

Onboard-CPU: No

PCI: 0

Garantia Produsului: 36 luni
