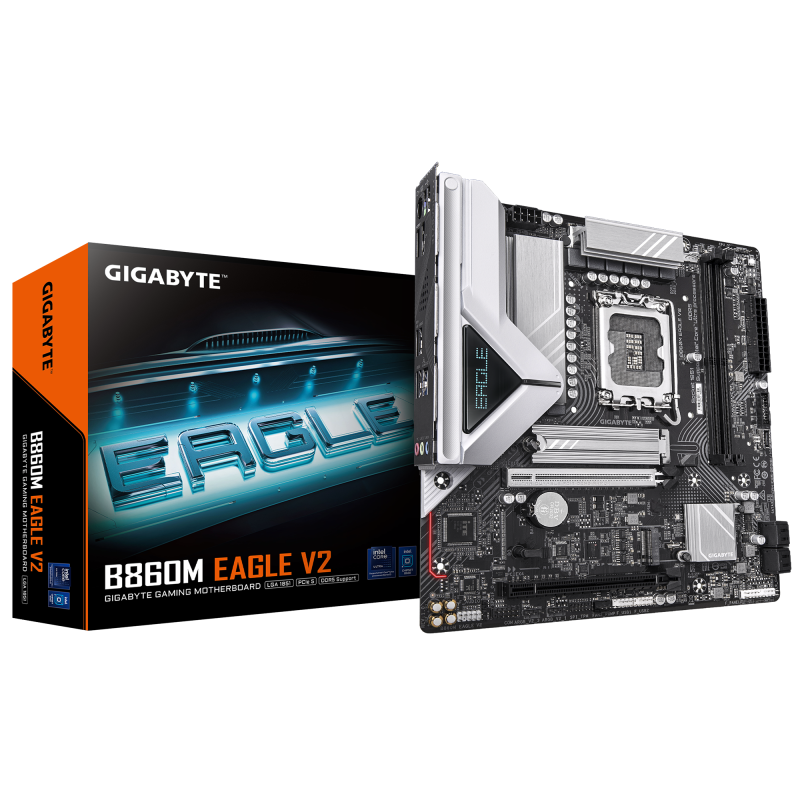

MB Gigabyte B860M EAGLE V2

Placa de Baza GIGABYTE B860M EAGLE V2 LGA1851, 2x DDR5, 1x HDMI 1x DP, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 2x M.2, 4x SATA 6GB/s, mATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
HDMI: Da
Thunderbolt: Nu
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
1st M.2 highest PCI Express generation: 5.0
2nd M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2280
2nd M.2 largest key size: 2280
Product colour: Dark brown
Power source type: ATX
Motherboard chipset family: Intel
Motherboard chipset: Intel B860
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard form factor: micro ATX
Cooling type: Passive
Audio Chip: Realtek ALC897
Audio output channels: 7.1 channels
Component for: PC
HDCP: Yes
Parallel processing technology support: Not supported
DirectX version: 12.0
Maximum resolution: 4096 x 2160 pixels
USB 2.0 connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
Front panel connector: Yes
Number of CPU fan connectors: 2
TPM connector: Yes
Number of water pump connectors: 2
RGB LED pin header: Yes
Number of EPS power connectors (8-pin): 1
S/PDIF out connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Serial port headers: 1
Number of RGB LED pin headers: 3
Products per shipping (inner) case: 1 pc(s)
Memorie maxima: N/A
Tip Memorie: DDR5
Supported memory clock speeds: 9066,8800,8600,8400,8266,8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,5600 MHz
Supported memory clock speed (max): 9066 MHz
Supported memory types: DDR5-SDRAM
ECC сompatibility: ECC & Non-ECC
Maximum internal memory per slot: 64 GB
Memory slots type: DIMM
Unbuffered memory: Yes
Number of memory slots: 2
Memory channels: Dual-channel
Maximum internal memory: 128 GB
Ethernet LAN: Yes
Bluetooth: Nu
Wi-FI: No
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125
Weight: 1.01 kg
Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software
Batteries included: Yes
Screws included: Yes
Package height: 54 mm
Package weight: 1.2 kg
Package width: 265 mm
Package depth: 265 mm
Compatible processor series: Intel Core Ultra (Series 2)
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Supported processor sockets: LGA 1851
PS/2 ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
DisplayPort version: 2.1
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
DVI-D ports quantity: 0
USB 2.0 ports quantity: 3
Line-in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
Microphone in: Yes
Headphone outputs: 1
Format: Micro-ATX (mATX)
Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive types: HDD & SSD
RAID support: Yes
Number of HDDs supported: 4
RAID levels: 0, 1, 5, 10
Number of storage drives supported: 6
Warranty period: 3 year(s)
Canale audio: N/A
RJ-45 LAN: N/A
Chipset audio integrat: Realtek
Soclu Procesor: Socket 1851
Numar sloturi memorie: 2
Tip slot interfata grafica: PCIe 5.0 x16
USB Type C: N/A
Sloturi M.2: 2
Model Chipset: B860
Gaming: Nu
Height: 35 mm
Width: 244 mm
Depth: 225 mm
MB-Socket: LGA1851
PCI-Ex16: 2
PCI-Ex1: 0
MB-Format: micro-ATX
RAM-Slots: 2
Onboard-CPU: No
USB3: 4-8
PCI: 0
Serial-or-Paralel: No/No
