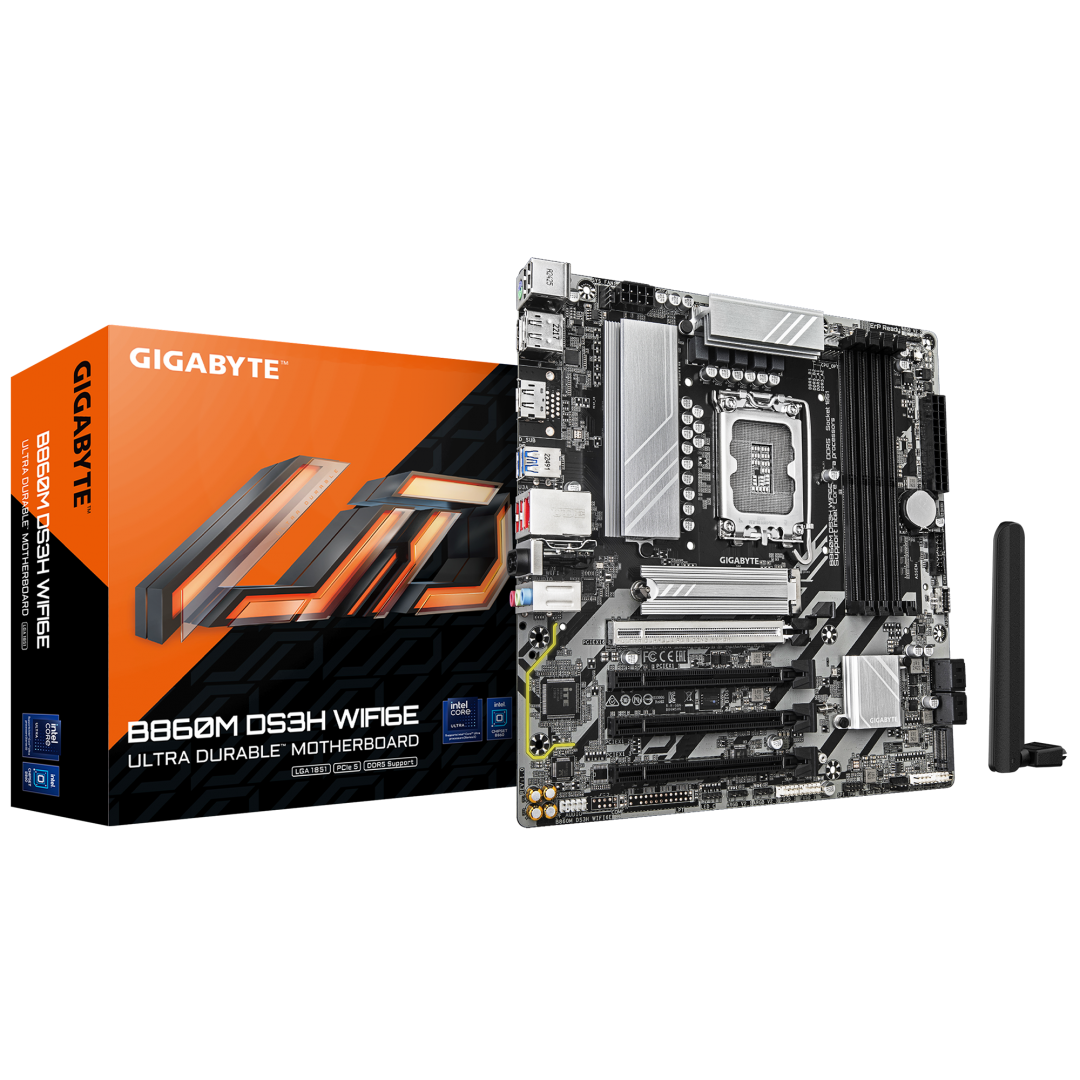

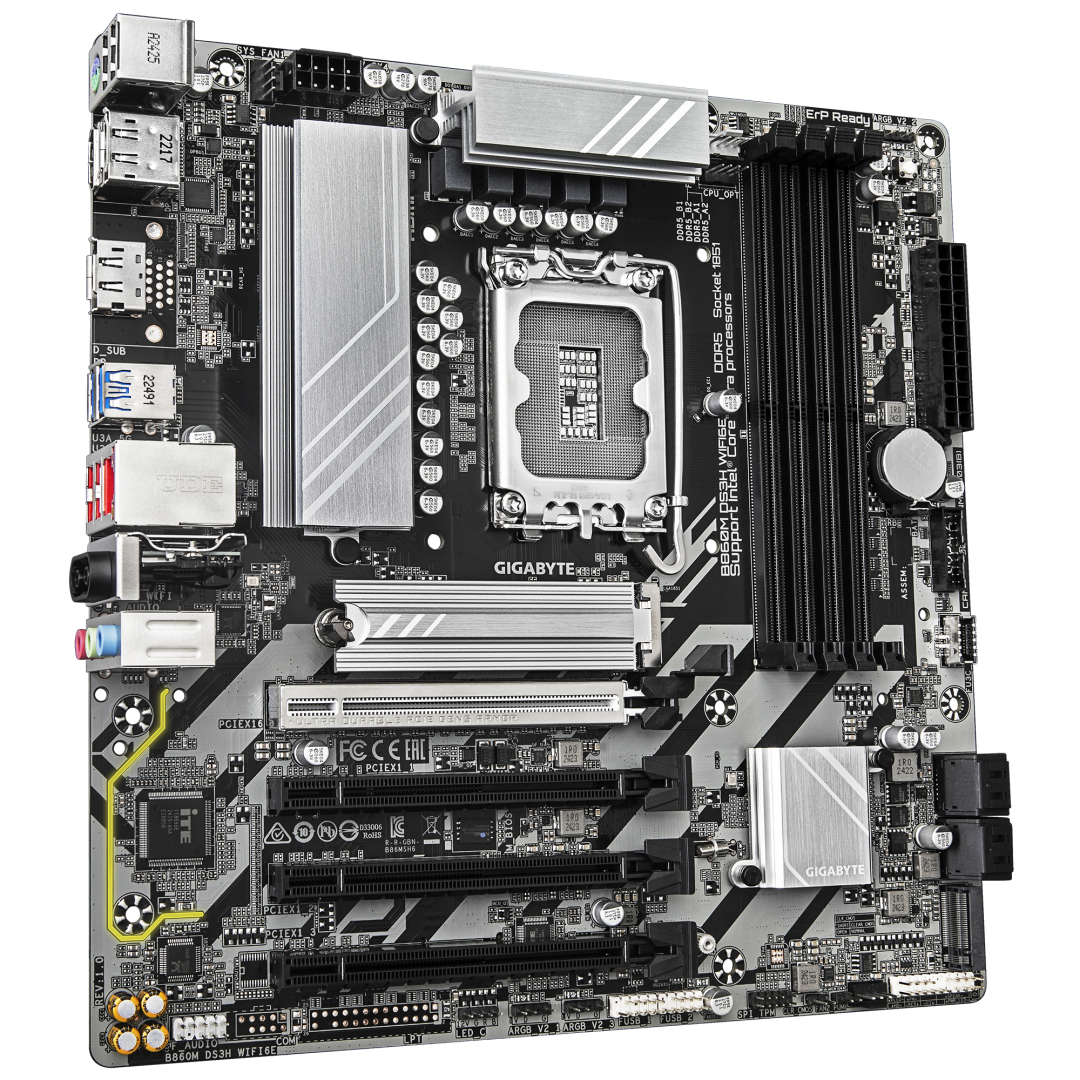

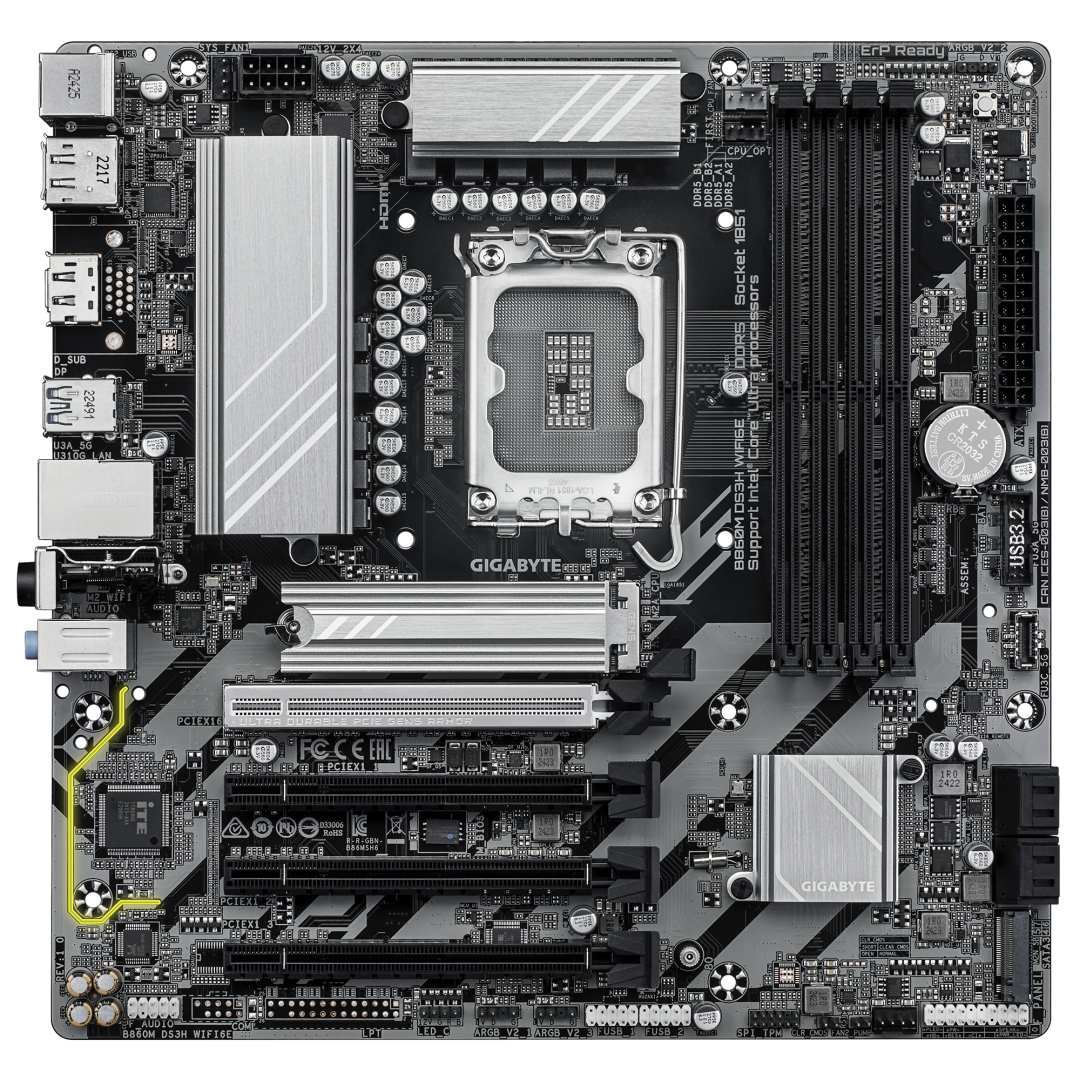

MB Gigabyte B860M DS3H WIFI6E

Placa de Baza GIGABYTE B860M DS3H WIFI6E LGA1851, 4x DDR5, 1x HDMI 2x DP, 4x PCIE x16, 2x M.2, 4x SATA 6GB/s, mATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
1st M.2 highest PCI Express generation: 5.0
2nd M.2 highest PCI Express generation: 4.0
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 5
1st M.2 largest key size: 2280
2nd M.2 largest key size: 2280
Product colour: Brown
Power source type: ATX
Audio Chip: Realtek ALC897
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Audio output channels: 7.1 channels
Component for: PC
Motherboard chipset family: Intel
Motherboard chipset: Intel B860
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Motherboard form factor: micro ATX
DirectX version: 12.0
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes
Parallel processing technology support: Not supported
USB 2.0 connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
Front panel connector: Yes
Number of CPU fan connectors: 2
TPM connector: Yes
Number of water pump connectors: 2
RGB LED pin header: Yes
Number of RGB LED pin headers: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of EPS power connectors (8-pin): 1
Country of origin: China
Supported memory clock speed (max): 9066 MHz
Supported memory clock speeds: 5600,6400,9066 MHz
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
ECC сompatibility: ECC & Non-ECC
Maximum internal memory per slot: 64 GB
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Memory channels: Dual-channel
Wi-FI: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
WLAN controller model: Intel Wi-Fi 6E AX211
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125
Bluetooth version: 5.3
Weight: 1.1 kg
Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software
Antenna included: Yes
Screws included: Yes
Package height: 68 mm
Package width: 270 mm
Package depth: 268 mm
Package weight: 1.25 kg
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Supported processor sockets: LGA 1851

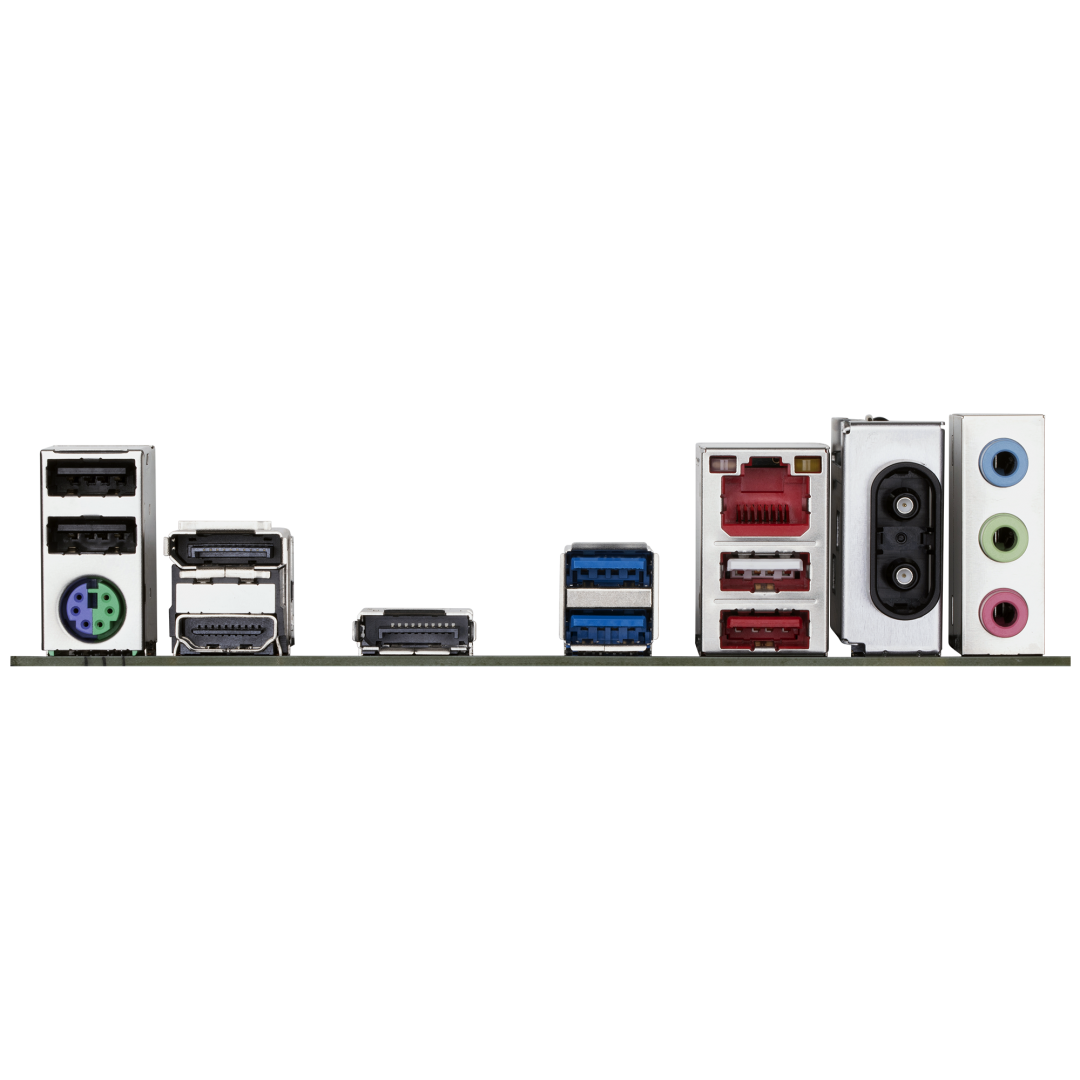

PS/2 ports quantity: 1
WiFi-AP antenna jack: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
DisplayPort version: 2.1
VGA (D-Sub) ports quantity: 0
USB 2.0 ports quantity: 3
DisplayPorts quantity: 2
Line-in: Yes
DVI-D ports quantity: 0
Microphone in: Yes
Headphone outputs: 1
Number of storage drives supported: 6
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
RAID levels: 0, 1, 5, 10
RAID support: Yes
Height: 35 mm
Width: 244 mm
Depth: 24.4 mm
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
