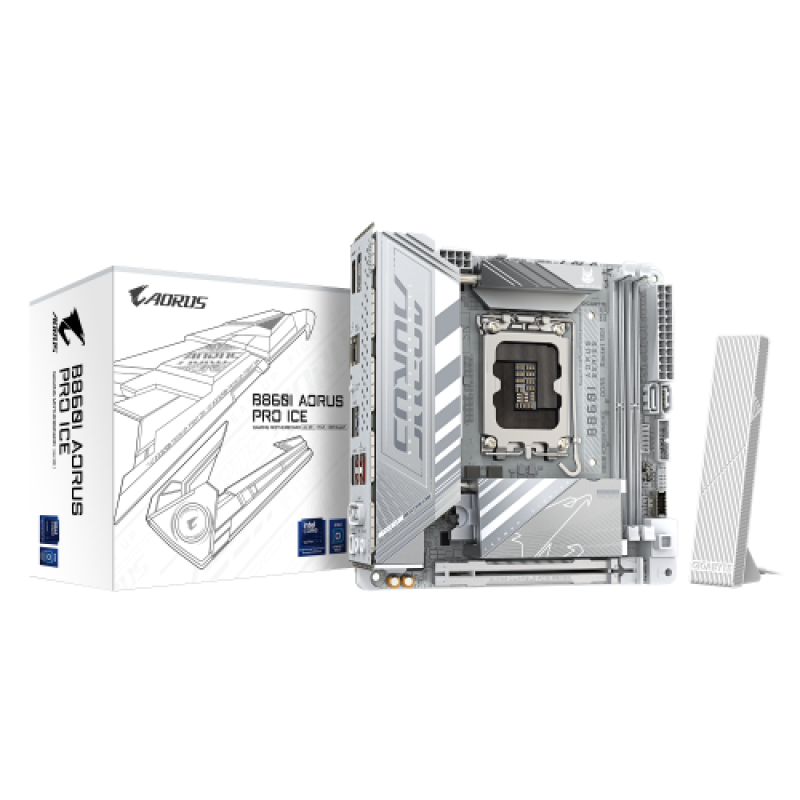

MB GIGABYTE B860I AORUS PRO ICE

Placa de Baza GIGABYTE B860I AORUS PRO ICE LGA1851, 2x DDR5, 1x Intel Thunderbolt 1x DP 1x HDMI, 1x PCIE 5.0 x16, 2x M.2, 2x SATA 6GB/s, mini- ITX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
HDMI: Da
Thunderbolt: 1 x Thunderbolt 4 (via USB Tip C)
RJ-45: 1
DisplayPort: 1
Iesire optica S/PDIF: 1
Suport audio: 7.1
Audio jacks: 2
USB 3.2 Gen1 tip A: 2
USB 3.2 Gen2 tip A: 3
USB Tip C: 1 x USB 4
BIOS Flashback: Da
Conectori speciali: 2 x conectori antena 2T2R
1st M.2 highest PCI Express generation: 5.0
2nd M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2280
2nd M.2 largest key size: 2280
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 2
Cooling type: Passive
Motherboard chipset family: Intel
Motherboard chipset: Intel B860
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Windows operating systems supported: Windows 11 x64
Audio Chip: Realtek ALC897
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: mini ITX
Product colour: White
Power source type: ATX
Interfata grafica: PCI Express x16 5.0
SATA III: 2
NGFF (M.2): 2
Placa audio integrata: 7.1
Chipset audio: Realtek
RAID: 0, 1
Placa video integrata: Necesita procesor cu tehnologia Intel Integrated Graphics
Placa retea integrata: 2.5 Gbps
Chipset retea: Realtek
BIOS: 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Recomandat Gaming: Da
Number of displays supported: 3
HDCP: Yes
Parallel processing technology support: Not supported
DirectX version: 12.0
Maximum resolution: 5120 x 2880 pixels
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Front panel connector: Yes
Number of CPU fan connectors: 2
TPM connector: Yes
RGB LED pin header: Yes
Number of SATA III connectors: 2
Number of water pump connectors: 1
USB 2.0 connectors: 1
Number of chassis fan connectors: 1
Number of EPS power connectors (8-pin): 1
Number of RGB LED pin headers: 2
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
Tehnologie: Dual channel
Model memorie: DDR5
Capacitate maxima memorie RAM: 128 GB
Frecvente suportate: 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MHz
Alte specificatii: Suporta Extreme Memory Profile (XMP)
Sloturi memorie: 2
Memorie maxima: N/A
Tip Memorie: DDR5
Maximum internal memory: 128 GB
Memory slots type: DIMM
Unbuffered memory: Yes
Supported memory types: DDR5-SDRAM
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 5600,6400,9200 MHz
Supported memory clock speed (max): 9200 MHz
Maximum internal memory per slot: 64 GB
Number of memory slots: 2
Memory channels: Dual-channel
Wi-FI: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125
WLAN controller model: MediaTek MT7925
Bluetooth version: 5.4
Bluetooth: 5.4
Weight: 1.3 kg
Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software
Antenna included: Yes
Batteries included: Yes
Screws included: Yes
Package height: 95 mm
Package width: 235 mm
Package depth: 227 mm
CPU Socket: 1851
Chipset: H810
Producator chipset: Intel
Procesoare suportate: Intel Core Ultra din a doua serie
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Supported processor sockets: LGA 1851
S/PDIF out port: Yes
DVI-D ports quantity: 0
WiFi-AP antenna jack: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPort version: 2.1
Digital audio optical out: 1
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
Line-in: Yes
USB 2.0 ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
Headphone outputs: 1
Thunderbolt ports quantity: 1
PCI Express 5.0: 1 (x16)
Header USB 3.0: Da
Format: mITX
Dimensiuni (L x l, cm): 17 x 17 cm
Number of storage drives supported: 4
Number of HDDs supported: 2
Supported storage drive types: HDD & SSD
RAID support: Yes
RAID levels: 0, 1, 5, 10
Supported storage drive interfaces: M.2, SATA III
Warranty period: 3 year(s)
Tip slot interfata grafica: PCIe 5.0 x16
USB Type C: N/A
Sloturi M.2: 2
Model Chipset: B860
Canale audio: N/A
RJ-45 LAN: N/A
Chipset audio integrat: Realtek
Soclu Procesor: Socket 1851
Numar sloturi memorie: 2
Gaming: Nu
Height: 35 mm
Depth: 170 mm
Width: 170 mm
PCI-Ex1: 0
RAM-Slots: 2
MB-Socket: AM5
MB-Format: mini-ITX
Onboard-CPU: No
USB3: 4-8
PCI-Ex16: 1
PCI: 0
Serial-or-Paralel: Yes/No
