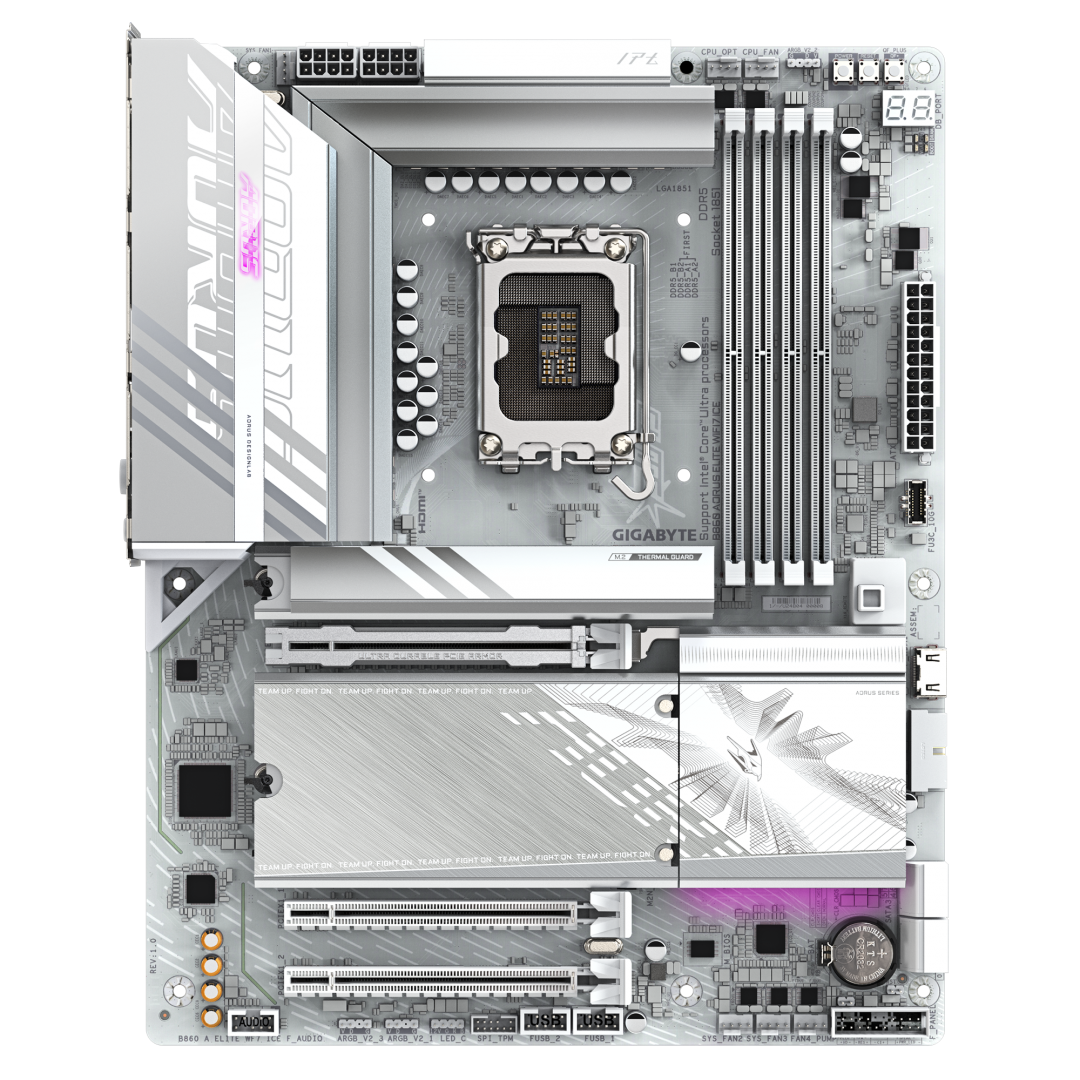

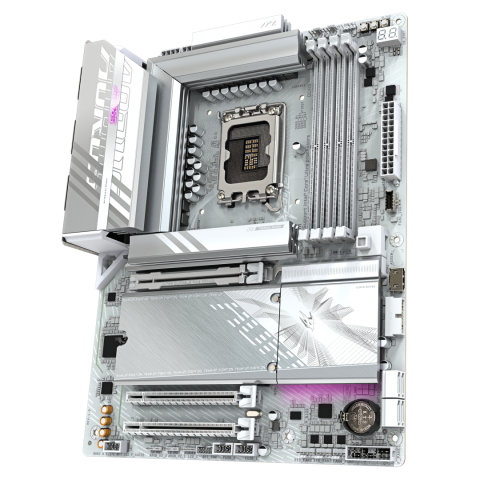

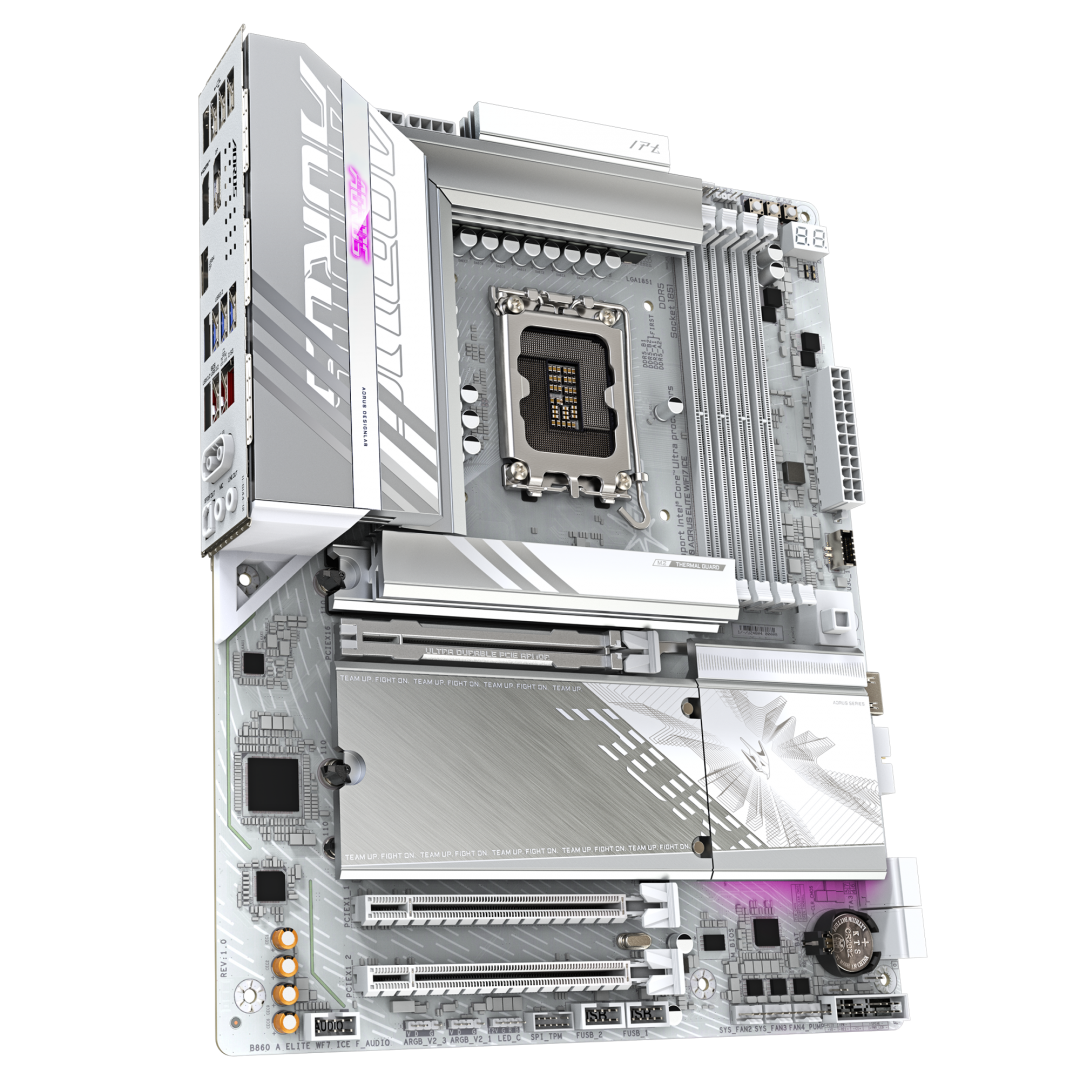

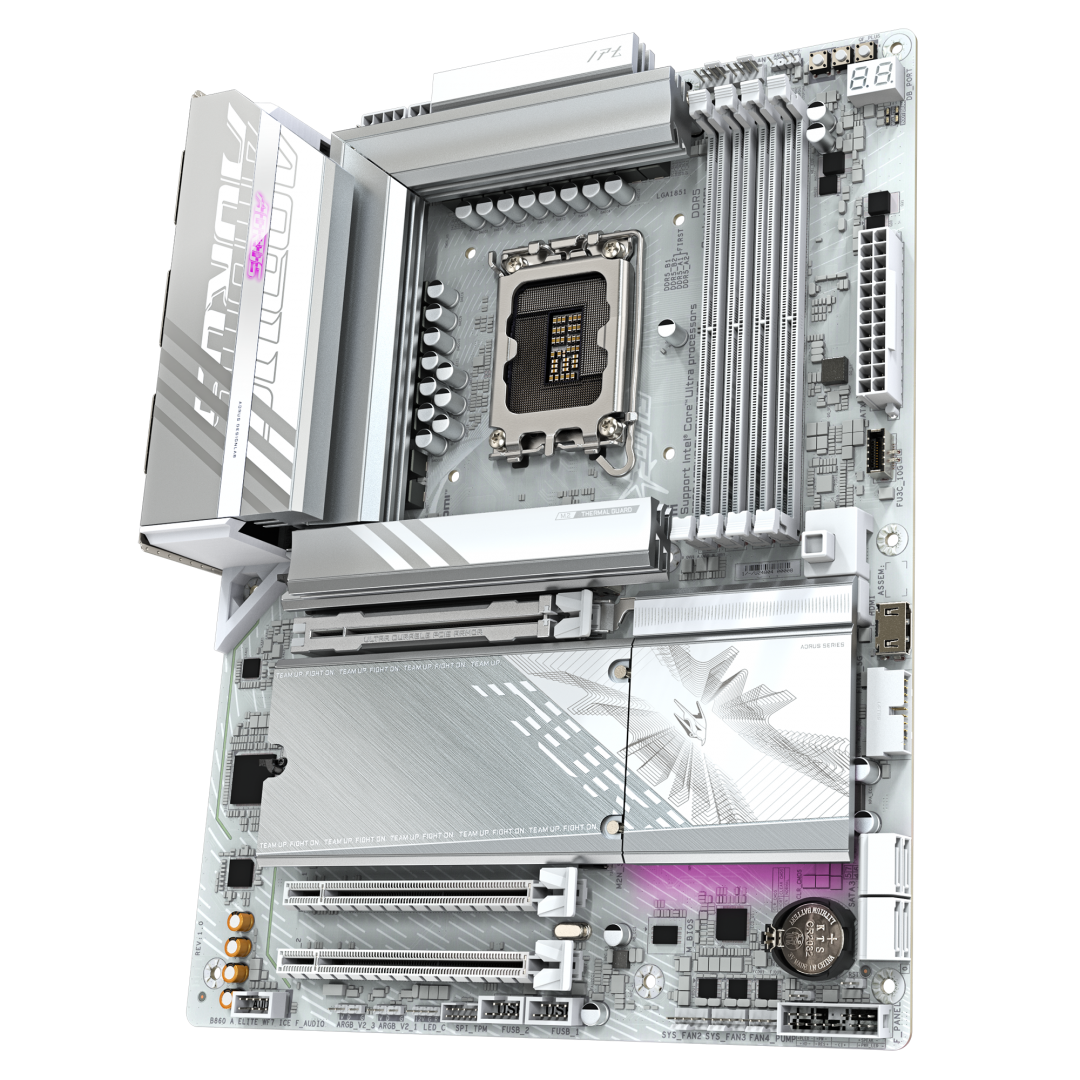

MB Gigabyte B860 AORUS ELITE WIFI7 ICE

Placa de Baza GIGABYTE B860 AORUS ELITE WIFI7 ICE LGA1851, 4x DDR5, 1x USB4 1x DP 1x HDMI 1x Front HDMI, 3x PCIE x16, 3x M.2, 4x SATA 6GB/s, ATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Number of M.2 (M) slots: 3
1st M.2 largest key size: 25110
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 22110
3rd M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 2
Audio Chip: Realtek ALC897
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: Intel
Motherboard chipset: Intel B860
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Windows operating systems supported: Windows 11 x64
Product colour: White
Power source type: ATX
HDCP: Yes
Parallel processing technology support: Not supported
DirectX version: 12.0
Maximum resolution: 4096 x 2160 pixels
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Front panel connector: Yes
Number of CPU fan connectors: 2
Number of chassis fan connectors: 4
Number of EPS power connectors (8-pin): 2
TPM connector: Yes
Number of water pump connectors: 2
RGB LED pin header: Yes
Number of RGB LED pin headers: 4
Country of origin: China
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 5600,6400,9200 MHz
Supported memory clock speed (max): 9200 MHz
Maximum internal memory per slot: 64 GB
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Memory channels: Dual-channel
Ethernet LAN: Yes
Wi-FI: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125
WLAN controller model: Realtek RTL8922AE
Bluetooth version: 5.4
Weight: 2.21 kg
Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software
Antenna included: Yes
Screws included: Yes
Package width: 335 mm
Package depth: 270 mm
Package height: 80 mm
Package weight: 2.49 kg
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Supported processor sockets: LGA 1851
WiFi-AP antenna jack: 2
HDMI ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Line-in: Yes
DisplayPort version: 2.1
Digital audio optical out: 1
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
DVI-D ports quantity: 0
S/PDIF out port: Yes
USB4 Gen 2x2 ports quantity: 1
Headphone outputs: 1
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
Number of HDDs supported: 4
Number of storage drives supported: 7
RAID levels: 0, 1, 5, 10
Height: 35 mm
Depth: 24.4 mm
Width: 30.5 mm
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
