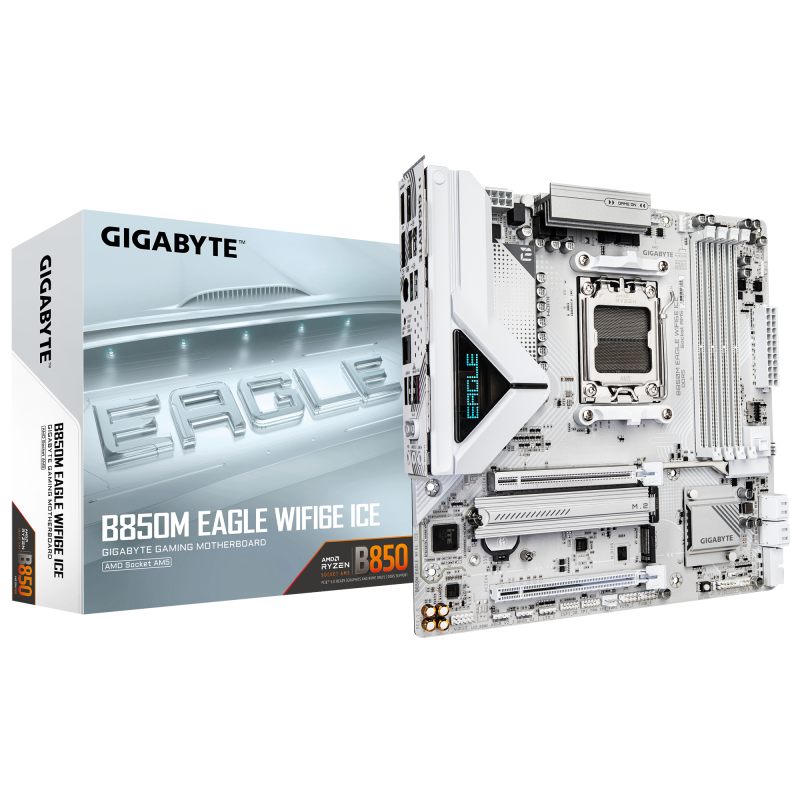

MB Gigabyte B850M EAGLE WF6E ICE

Placa de Baza GIGABYTE B850M EAGLE WIFI6E ICE AM5, 4x DDR5, 1x HDMI 2x DP, 1x PCIE 5.0 x16 1x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, mATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
1st M.2 largest key size: 25110
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 2
Cooling type: Passive
Audio output channels: 7.1 channels
Component for: PC
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Product colour: White
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Power source type: ATX
Motherboard chipset: AMD B850
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes
On-board graphics card: No
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Number of SATA II connectors: 0
Number of SATA connectors: 0
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Front panel connector: Yes
Number of CPU fan connectors: 2
TPM connector: Yes
Number of water pump connectors: 2
RGB LED pin header: Yes
Number of RGB LED pin headers: 4
12V power connector: Yes
Number of EPS power connectors (8-pin): 1
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Supported memory clock speeds: 8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 8200 MHz
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
Maximum internal memory per slot: 64 GB
Memory channels: Dual-channel
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet LAN: Yes
Wi-FI: Yes
WLAN controller model: Realtek RTL8852CE
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth: Yes
Bluetooth version: 5.3
Weight: 17 kg
mSATA ports quantity: 0
Screws included: Yes
Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software
Batteries included: Yes
Antenna included: Yes
Package weight: 19 kg
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor manufacturer: AMD
DisplayPort version: 1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
DisplayPorts quantity: 2
Line-in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
VGA (D-Sub) ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
PS/2 ports quantity: 1
DVI-D ports quantity: 0
WiFi-AP antenna jack: 2
Microphone in: Yes
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 1
Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Number of storage drives supported: 6
Number of HDDs supported: 4
RAID levels: 0, 1, 5, 10
Supported storage drive types: HDD & SSD
RAID support: Yes
Warranty period: 3 year(s)
Height: 35 mm
Width: 244 mm
Depth: 24.4 mm
PCI-Ex1: 0
RAM-Slots: 4
MB-Format: micro-ATX
MB-Socket: AM5
PCI-Ex16: 2
USB3: 4-8
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
